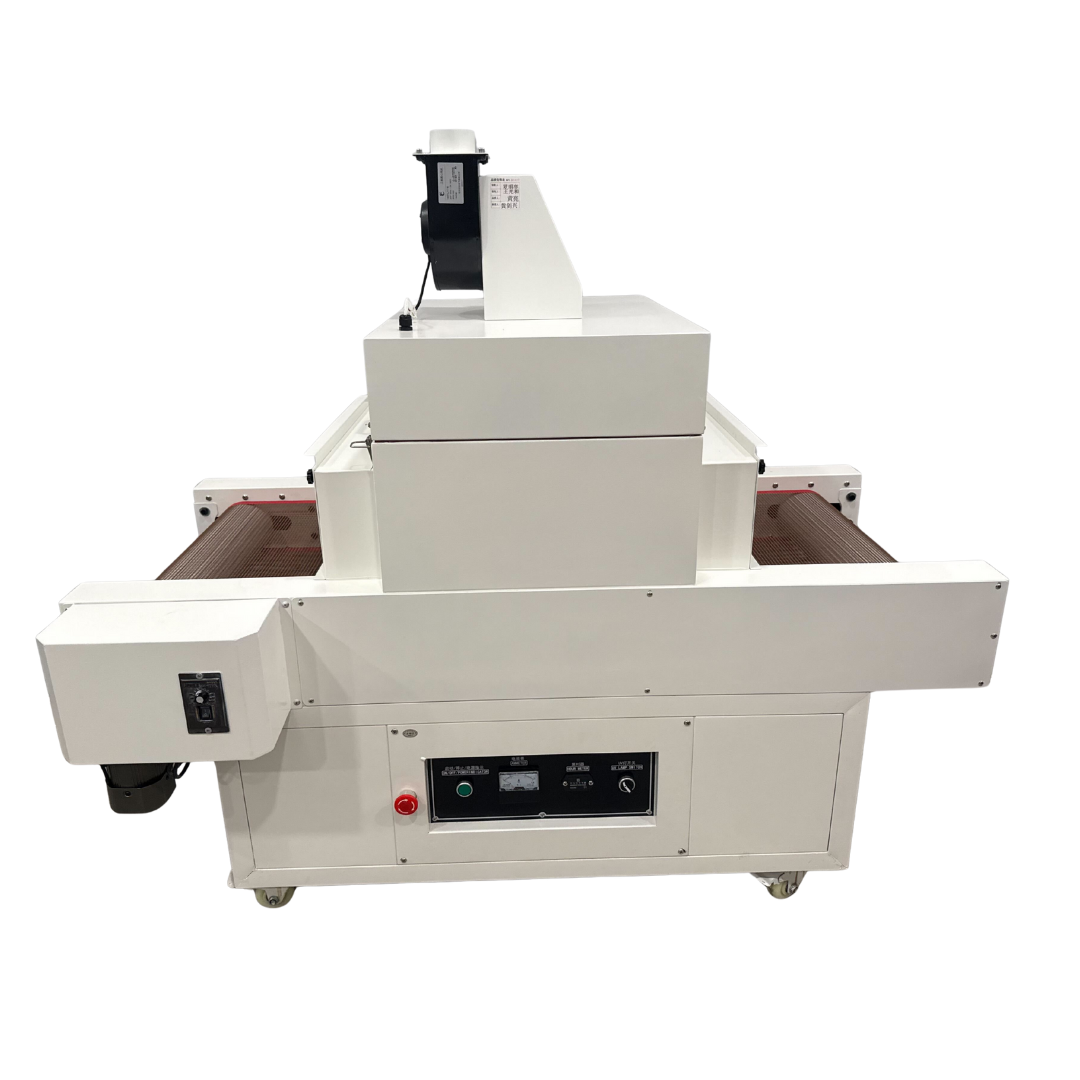

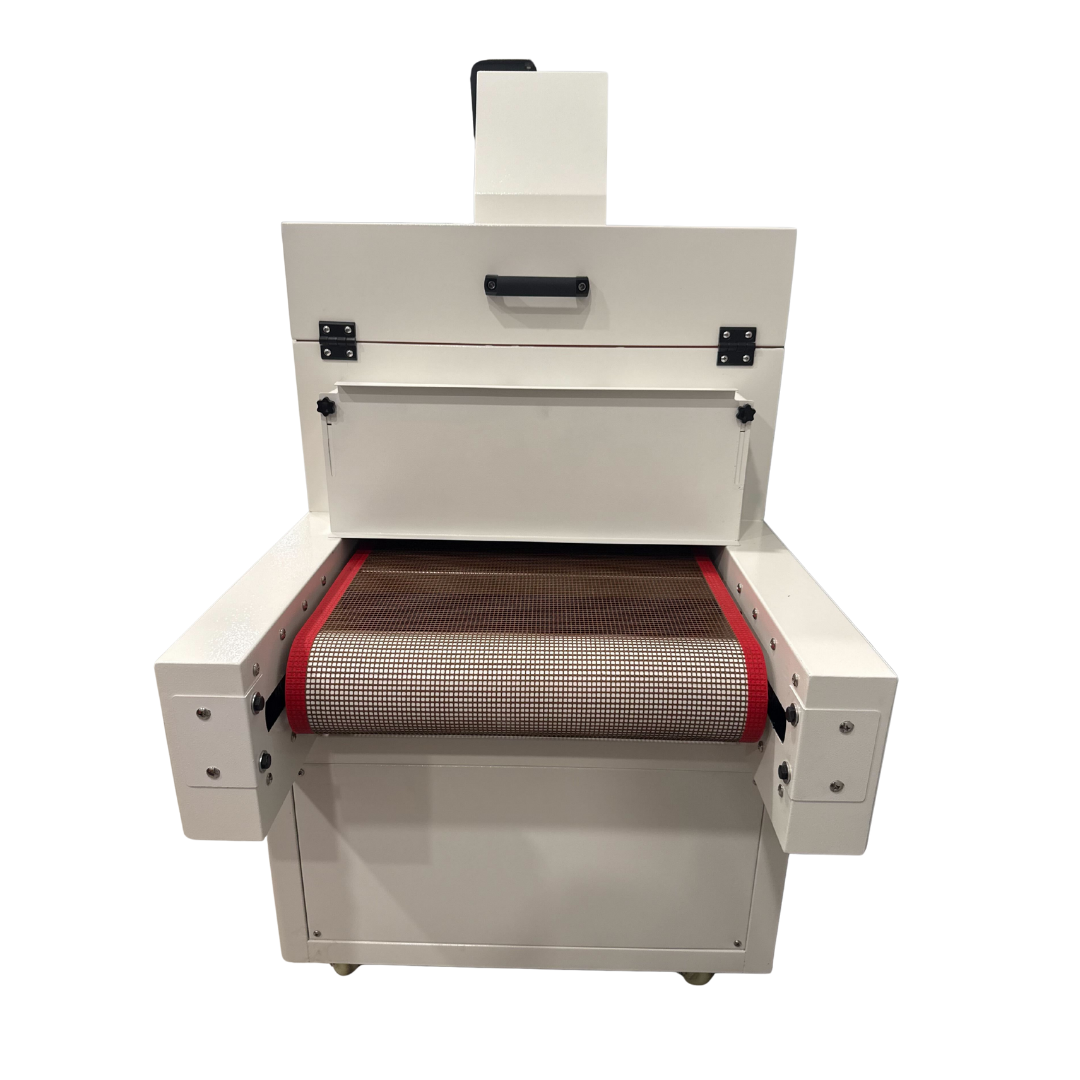

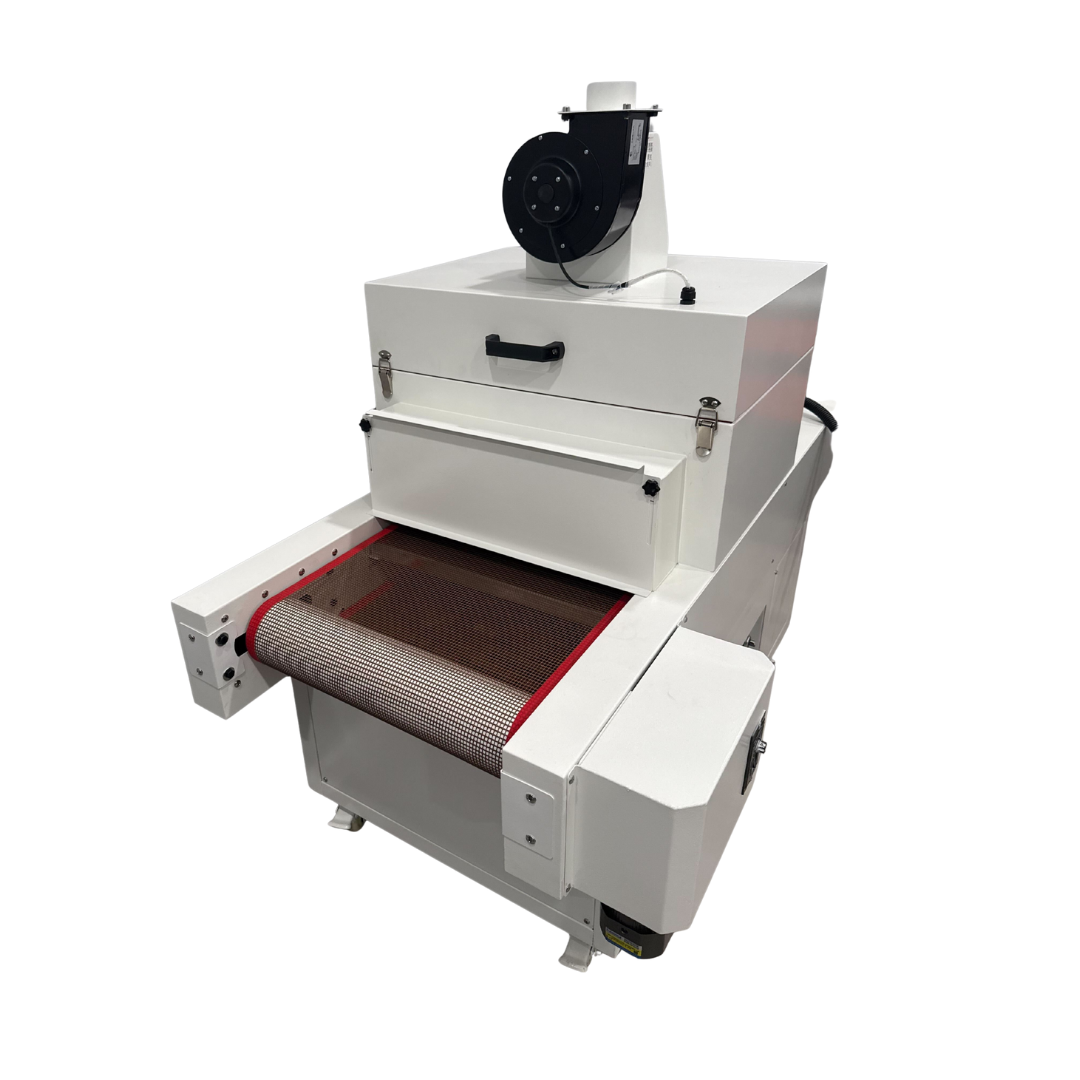

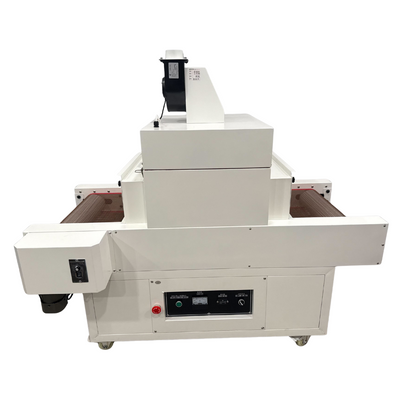

Precision UV Curing Conveyor
Precision UV Curing Conveyor
SKU:511464
Couldn't load pickup availability
The Precision UV Curing Conveyor is a high-efficiency system for curing UV-sensitive adhesives, coatings, and inks in electronics, plastics, and industrial applications. Using a 365nm mercury bulb ensures rapid, consistent curing for surfaces like cellphone casings, compact discs, and IMD injection products. Its compact 800mm design makes it ideal for desktop use or integration into small-scale production lines.
With uniform UV exposure and an adjustable lamp height controlled by four precision levers, users can optimize curing for various materials and thicknesses. The lightweight construction ensures easy integration and operation.
Features & Benefits
- 365nm Mercury Lamp – Provides deep, reliable UV curing across a wide range of substrates

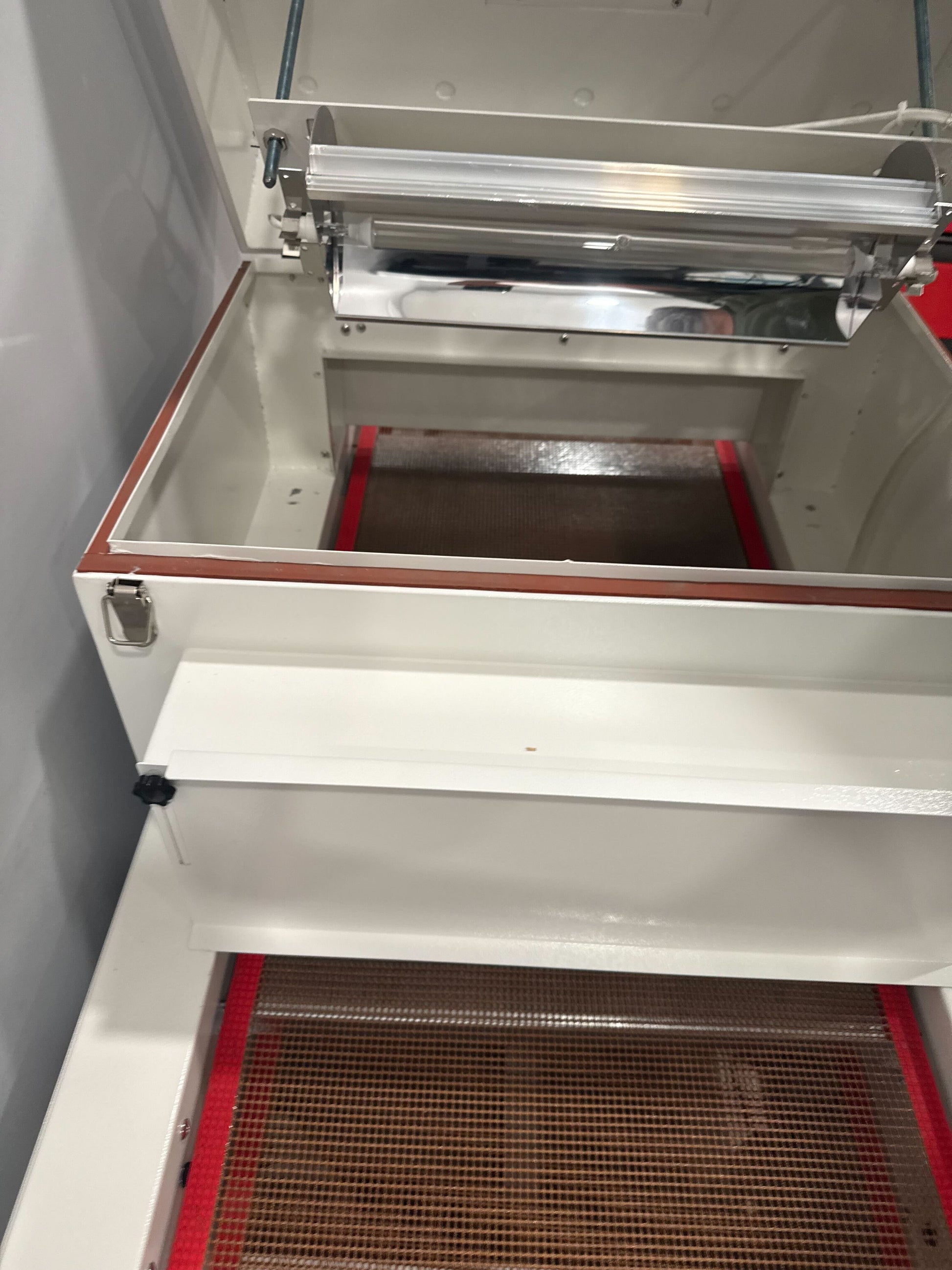

- Adjustable Lamp Height – Four precision levers allow for height adjustment, even during operation
- Compact & Lightweight – Desktop-friendly size and easy integration into existing workflows
- Versatile Use – Suitable for electronics, UV surface finishing, LCD films, and industrial plastics
- Efficient Output – Delivers fast, consistent, and uniform curing performance

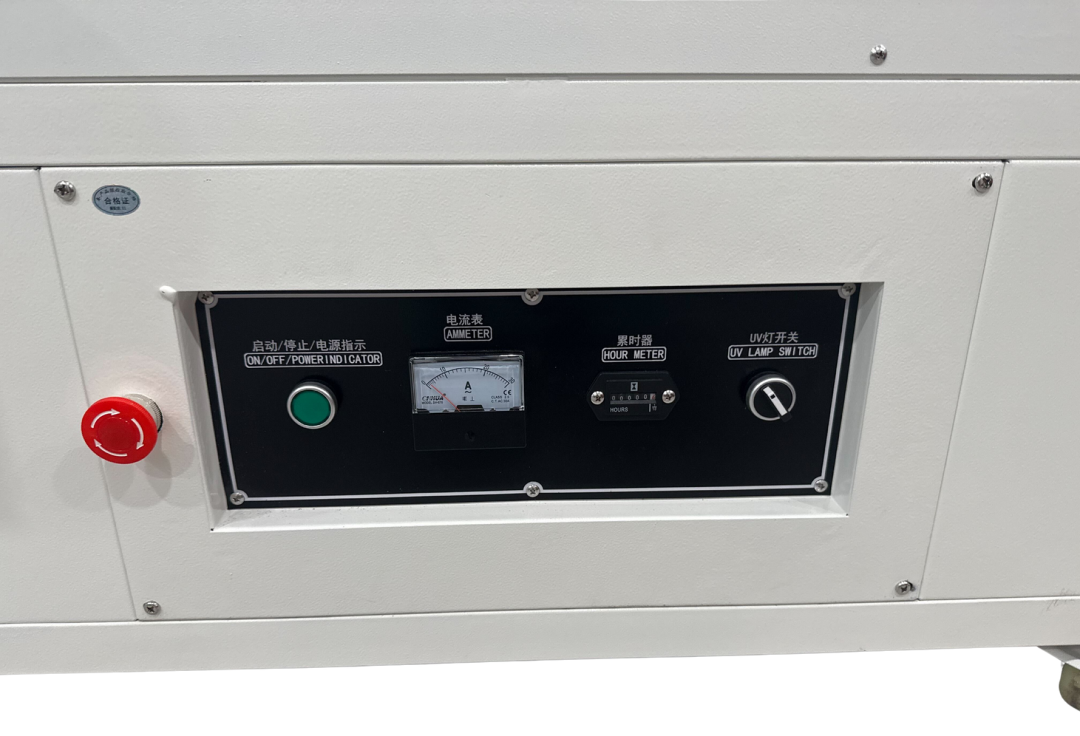

- User-Friendly Design – Simple setup with easy mobility and intuitive controls
Precision UV Curing Conveyor
Designed for high-speed, reliable UV curing in industries like electronics, automotive, and precision manufacturing. Follow UV safety precautions, and replacement mercury bulbs are available for maintenance.
Technical Specifications:
- UV Wavelength: 365nm

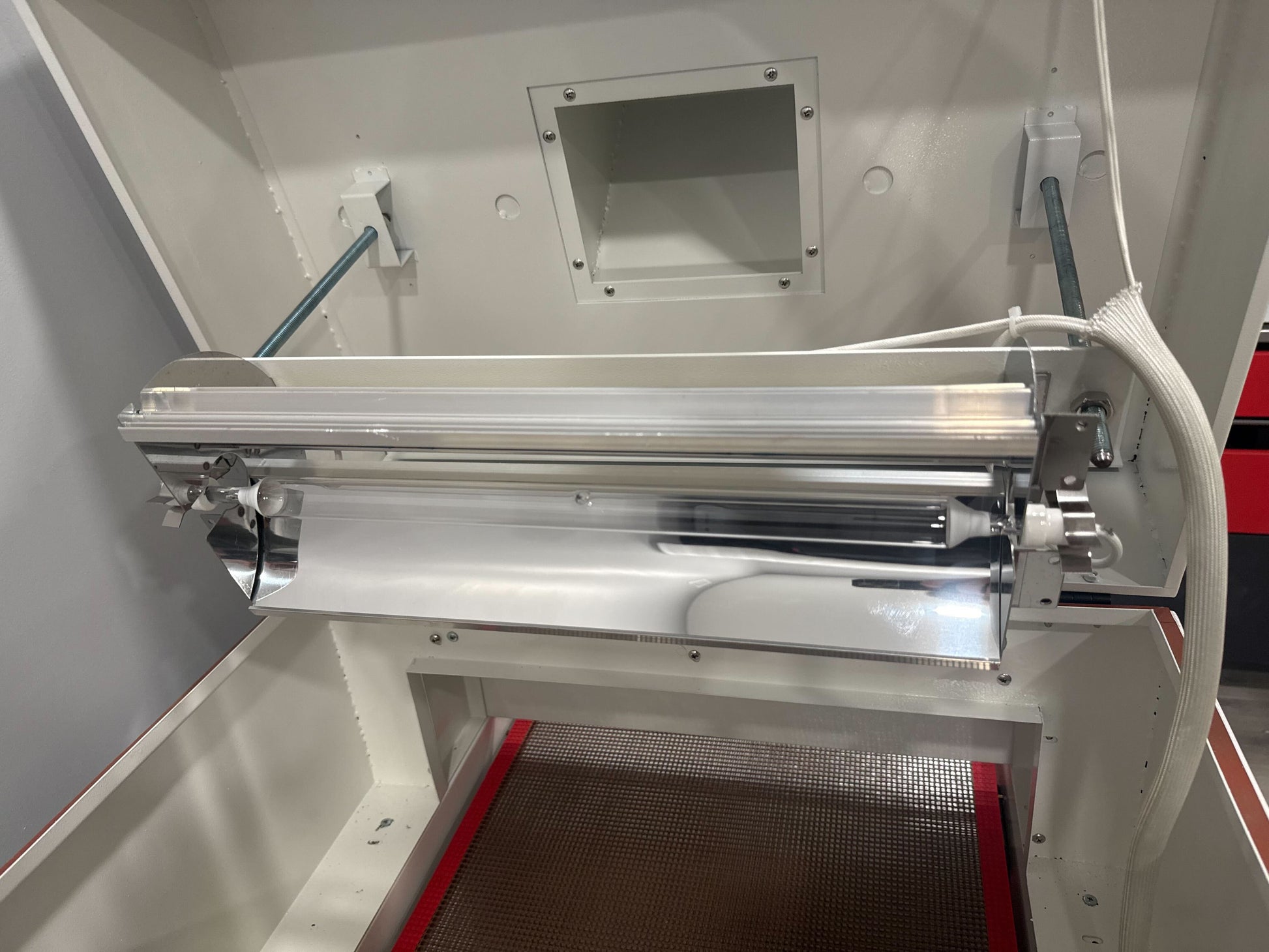

- Lamp Type: Mercury
- Lamp Power: 3kW
- Lamp Length: 18.1" (460mm)
- Number of Lamps: 1
- Input Voltage: 220VAC, 60Hz
- Power Consumption: 3.5kW
- UV Working Area: 31.5" (800mm)
- Conveyor Speed: 3.3–32.8 ft/min (1–10 m/min), adjustable
- Total Machine Length: 59.1" (1500mm)
- Overall Dimensions (L×W×H): 59.1" × 28.3" × 53.1" (1500 × 720 × 1350mm)
- Weight: 264.6 lbs (120kg)
- Conveyor Belt Width: 19.7" (500mm)
- Belt Material: Teflon mesh
- Belt Feeding Length: 13.8" (350mm)
- Belt Discharge Length: 13.8" (350mm)
- Adjustable Belt Height: 3.9"–7.1" (100–180mm)
We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please contact us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
