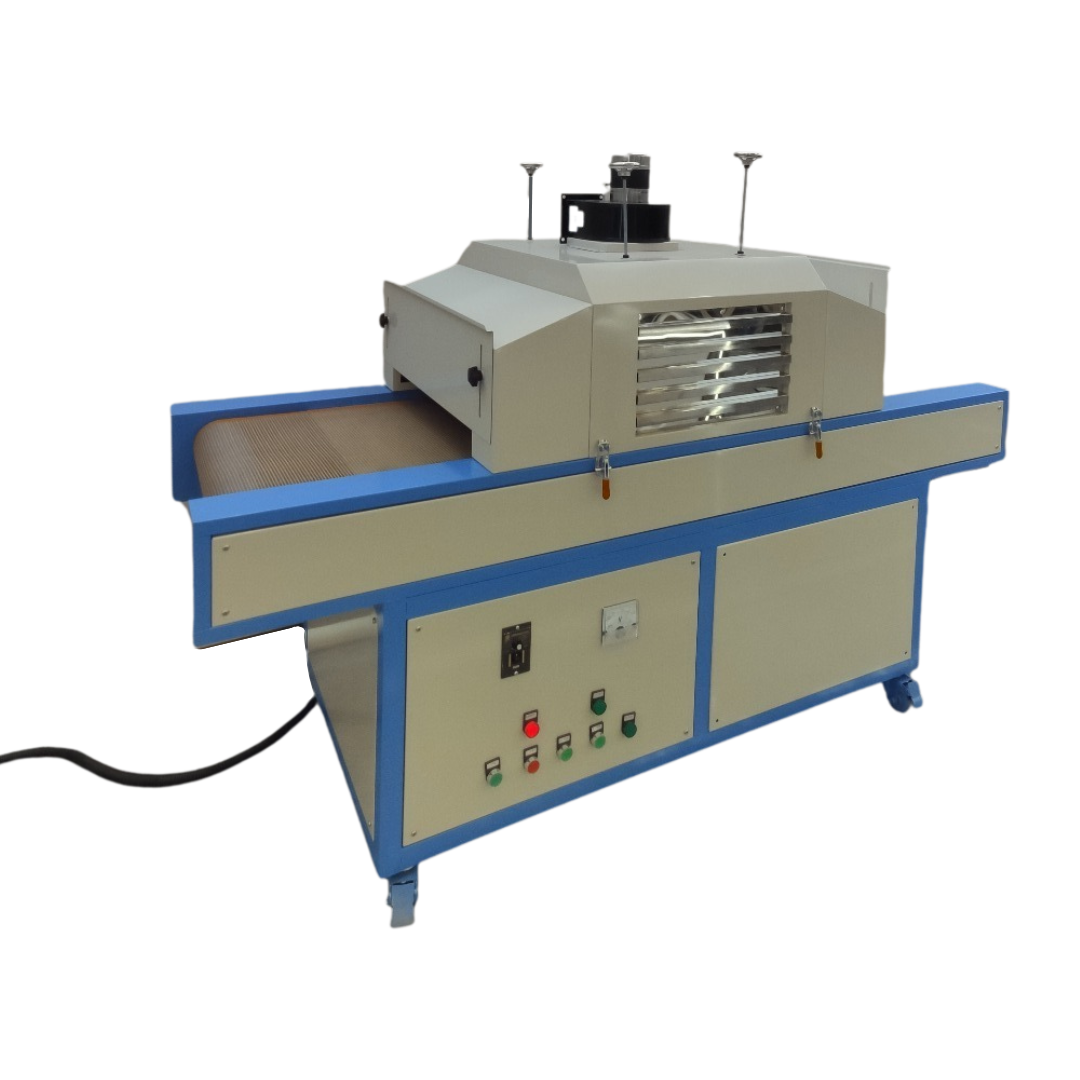

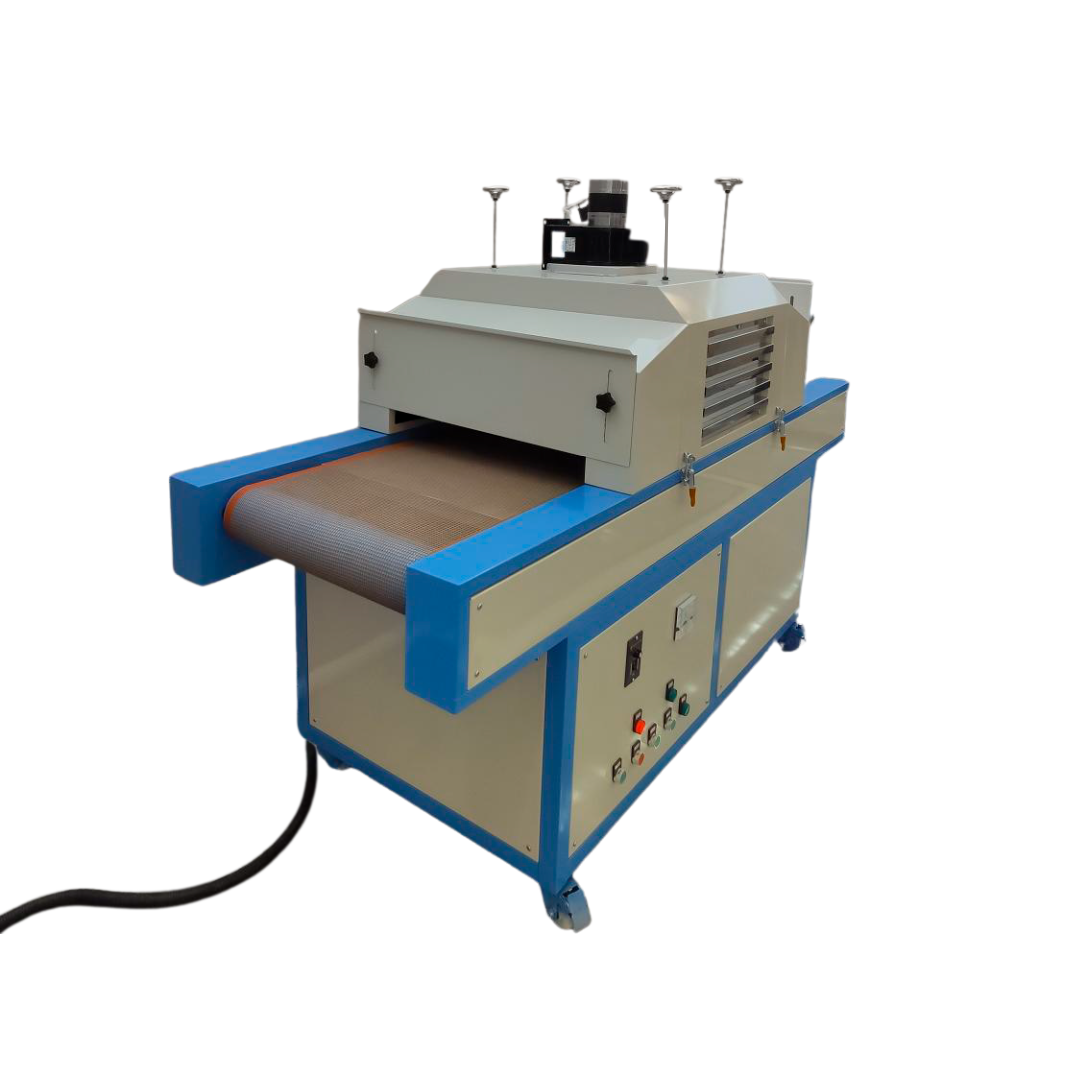

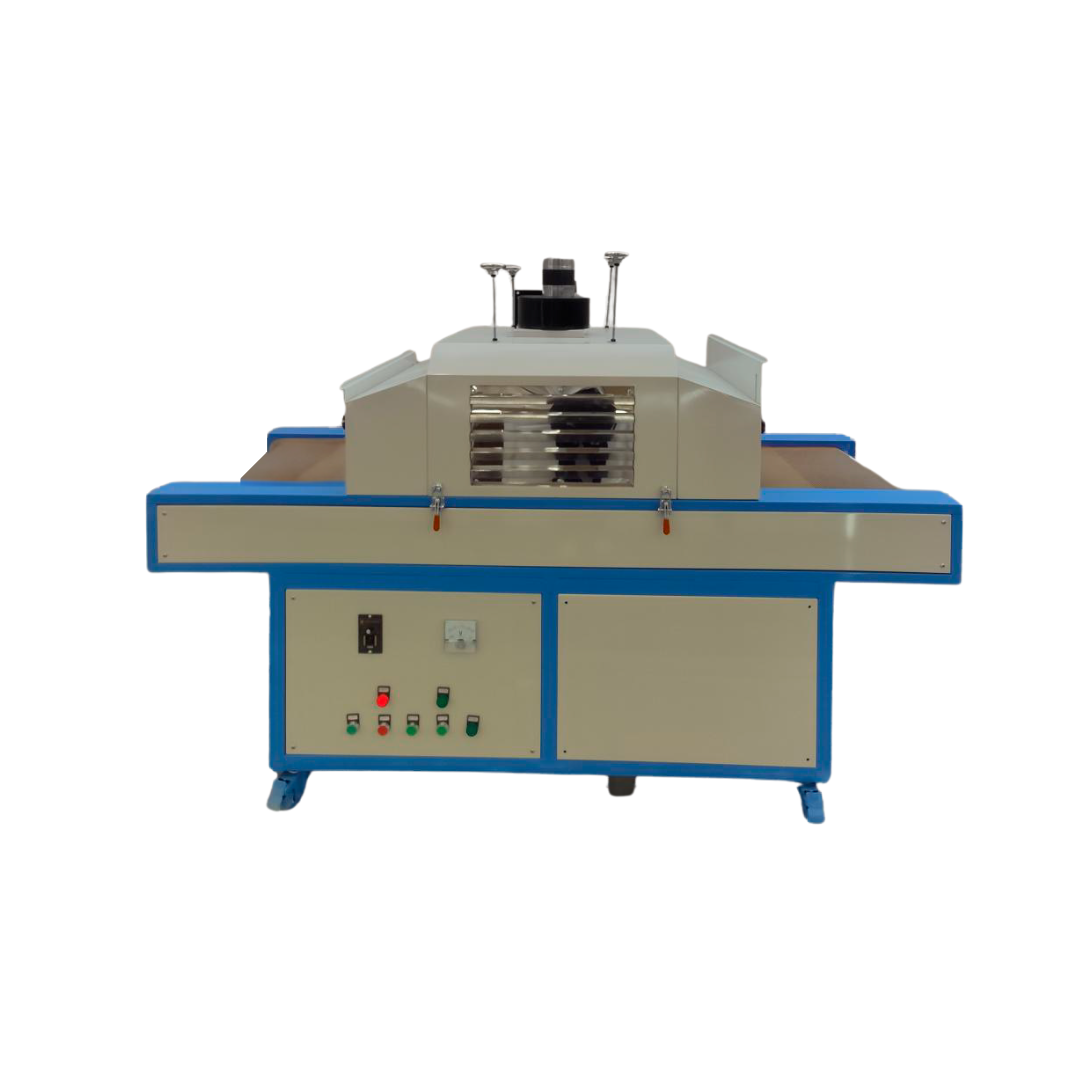

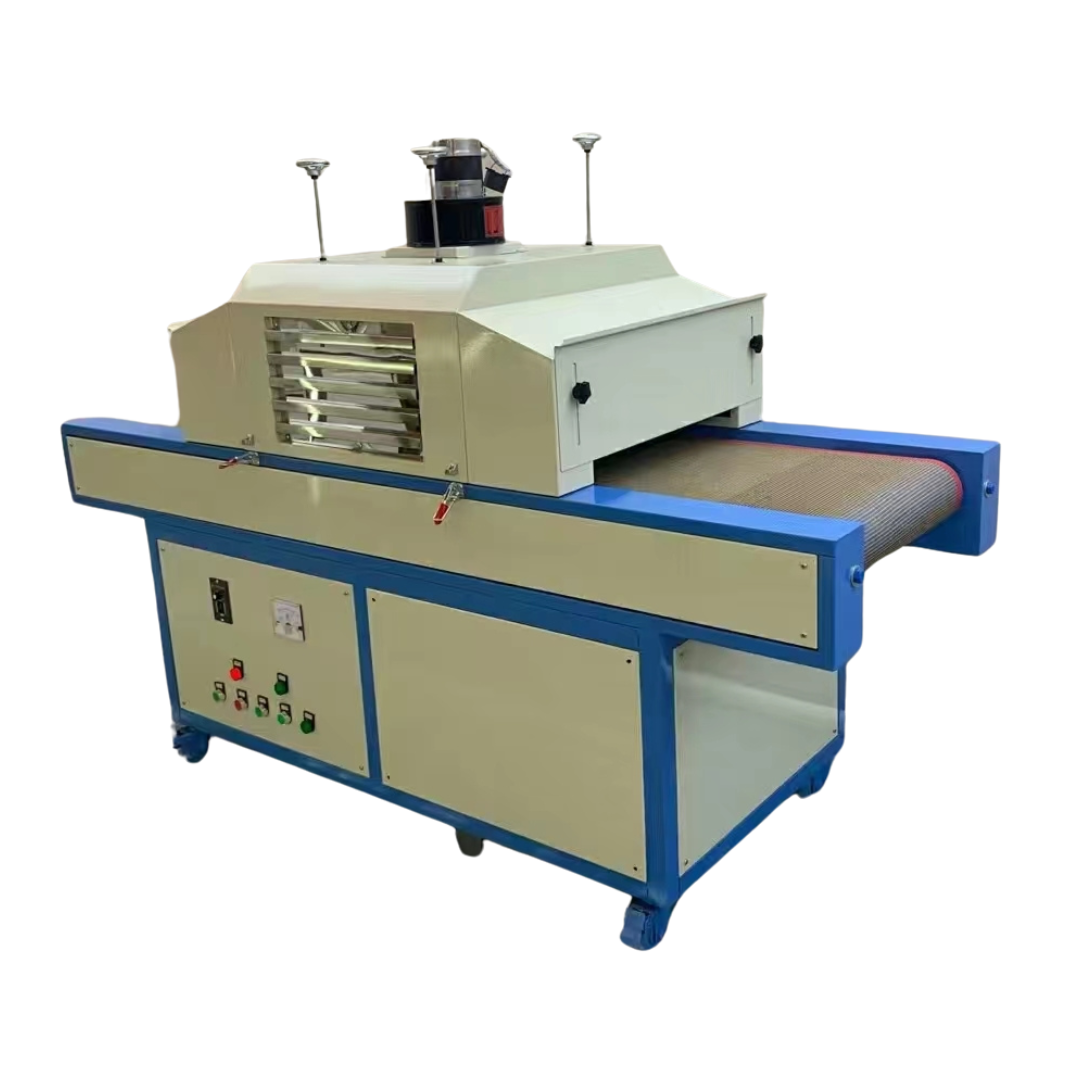

The Precision UV Curing Conveyor is an entry-level UV curing system designed for adhesives, coatings, and inks used in electronics, plastics, and general industrial applications. Equipped with a 365nm mercury bulb, it provides consistent ultraviolet exposure for parts such as cellphone casings, compact discs, IMD injection products, and other UV-sensitive components. Its 800mm conveyor format and mobile frame with industrial casters make it suitable for light-duty production environments where controlled conveyor speed and simple operation are important.
This unit is designed for steady, controlled curing rather than high-output processing. The lamp height can be adjusted manually before use to accommodate different part sizes and application requirements, while the conveyor system supports uniform UV exposure across the curing area.
Features & Benefits
- 365nm Mercury Lamp: Provides reliable UV output for curing compatible adhesives, inks, and coatings
- Manual Lamp Height Adjustment: Allows the curing setup to be adjusted before operation based on part height and application needs
- 800mm Conveyor System: Suitable for light-duty curing processes that require controlled exposure time
- Mobile Industrial Frame: Mounted on casters for easier positioning within the workspace
- Uniform UV Exposure: Helps maintain consistent curing across the belt area
- Entry-Level Design: A practical solution for lower-volume or slower-paced UV curing applications
| Wavelength | Irradiation at Belt |
| UVA | 389 mW/cmĀ² |
| UVB | 419 mW/cmĀ² |
| UVC | 111 mW/cmĀ² |
| UVV | 261 mW/cmĀ² |
Ā
Replacement lamp for Precision UV Curing Conveyor system
Precision UV Curing Conveyor
The Precision UV Curing Conveyor is best suited for controlled, slower-speed curing applications where simple setup and dependable UV exposure are required. Proper UV safety precautions should always be followed during operation, and replacement mercury bulbs are available for routine maintenance.
Technical Specifications:
- UV Wavelength: 365nm
- Lamp Type: Mercury
- Lamp Power: 3kW
- Lamp Length: 18.1" (460mm)
- Number of Lamps: 1
- Input Voltage: 220VAC, 60Hz
- Power Consumption: 3.5kW
- UV Working Area: 31.5" (800mm)
- Conveyor Speed: 3.3ā32.8 ft/min (1ā10 m/min), adjustable
- Total Machine Length: 59.1" (1500mm)
- Overall Dimensions (LĆWĆH): 59.1" Ć 28.3" Ć 53.1" (1500 Ć 720 Ć 1350mm)
- Weight: 264.6 lbs (120kg)
- Conveyor Belt Width: 19.7" (500mm)
- Belt Material: Teflon mesh
- Belt Feeding Length: 13.8" (350mm)
- Belt Discharge Length: 13.8" (350mm)
- Adjustable Belt Height: 3.9"ā7.1" (100ā180mm)
We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please contact us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
