Germicidal UV Bulbs - Samkun Century - JSA-1000 UV Light Bulb For Germicidal Water Treatment
Germicidal UV Bulbs - Samkun Century - JSA-1000 UV Light Bulb For Germicidal Water Treatment Samkun Century - JSA-1000 UV Light Bulb for Germicidal Water Treatment

Samkun Century - JSA-1000 UV Light Bulb for Germicidal Water Treatment
Free Gift


UV Bulb Price Match Guarantee

Guaranteed Replacement Ultraviolet (UV) Bulb - 4 pin single end - 21 Watts - 17.17 Inch Length Lamp - Worry-Free Performance for 1 Year

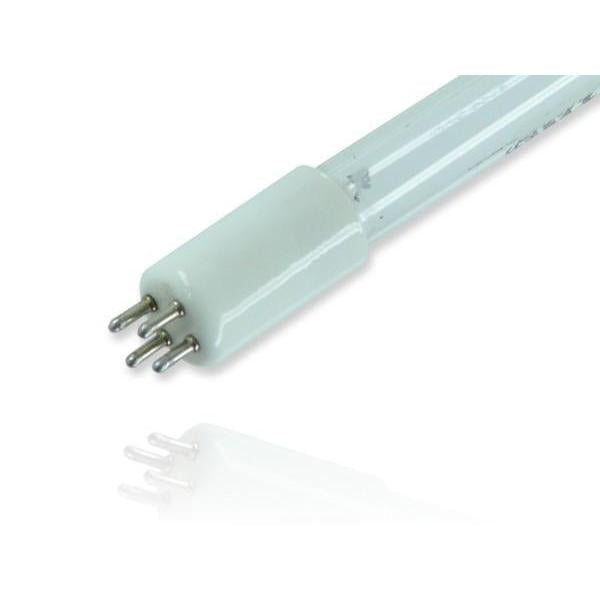

The Samkun Century - JSA-1000 UV Light Bulb For Germicidal Water Treatment is a guaranteed water treatment bulb that has a wattage of 21 Watts and a wavelength range of 254nm. This wavelength acts on the genetics of the microorganisms and renders them harmless. The water treatment bulb has ceramic as its base material and an average lifespan of 10,000 hours. The germicidal water treatment bulb has a length of 17.17" and a four-pin on a single end base. It is compatible with germicidal OEM Water sterilization filters, UV sanitizers, and water purifiers.

The lamp makes use of UVC light to inactivate bacteria, molds, virus,es and protozoa present in water. Researchers are of the opinion that UV water purification provides a safe solution as this method of sterilization is a purely physical process and does not alter the pH, chemistry or taste of water. This method is both economic and environmental friendly and is a much better option for chemicals and their bi-products. People are of the opinion that this system provides a safe solution against microorganisms such as giardia and cryptosporidium, which are resistant to chlorine disinfection.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

  • Well water
  • Drinking water
  • Surface water
  • Municipal water
  • Wastewater
  • Foodservice/processing
  • Beverage service/processing
  • Hospitals
  • Aquaculture
  • Pools, Spas, and Water Features
  • Chemicals
  • Oil, Gas, and Power
  • Pulp, paper, and wood
  • Electronics
  • Cosmetics
  • Pharmaceuticals
  • Hotels
  • Water bottlers
  • Laboratories
  • Marine and more

Technical Specifications:

  • Total Length: 17.17 inches (436mm)
  • Arc Length: 13.78 inches (350mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 370mA
  • Lamp Voltage: 67V
  • Lamp Wattage: 21 Watts
  • Output UVC Watts: 7.3 Watts
  • Output uW/cm^2 @ 1m: 72
  • Peak UV Output: 253.7nm
  • Glass Type: Non-Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Spectral Output of Germicidal UVC Light Bulbs

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194541

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting:

*All germicidal UV lamps listed are compatible brand UV products. We do not sell Samkun Century brand UV sanitizer light bulbs. All Samkun Century brand names, trademarks and logos are property of Samkun Century.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: stocks generic products that are 100% compatible with the original equipment.
