Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 12 Inch Arc Length - 18.56 Inch Total Length (end to end)

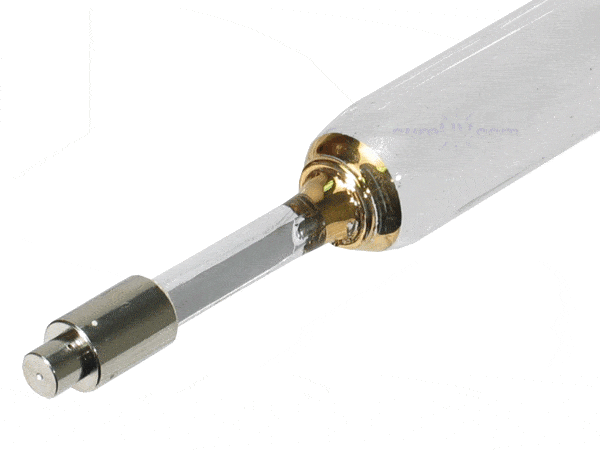

The Tec Lighting Part # Tl 1230 UV Curing Lamp Bulb is a 100% compatible replacement lamp bulb that has an arc length of 12 inches and an overall length of 18.56 inches. Filled with mercury, the replacement bulb exceeds OEM standards of bulb performance. It involves a process where high intensity UV rays dry or cure inks and coatings in printers. The method of UV curing also uses light instead of heat, which enables the ink to dry and harden instantly. The lamp bulb is compatible to the following part numbers:
- TL1230S
- M630440
- UVT2606
- 083436R38
The UV curing method is fast gaining popularity as against alternative traditional solvent-based products. With solvent-based products the risk of environmental pollution is greater as the solvent evaporates. This results in greater printing quality, better productivity and lower production costs.
Technical Specifications:
- Output Power: 500 WPI
- Fill: Mercury
- Quartz: Standard

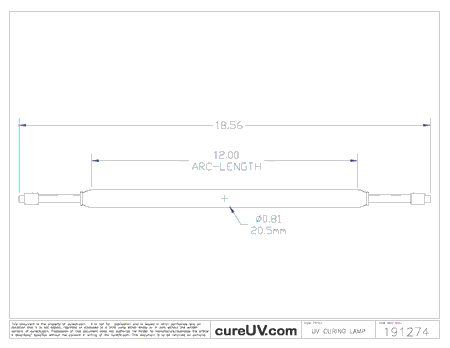

- Arc Length: 12 Inches
- Overall Length: 18.56 Inches
UV Spectral Output of a Mercury UV Lamp (PDF)
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
