UV Accelerated Aging Chamber
UV Accelerated Aging Chamber UV Accelerated Aging Chamber

UV Accelerated Aging Chamber
Free Gift


UV Bulb Price Match Guarantee

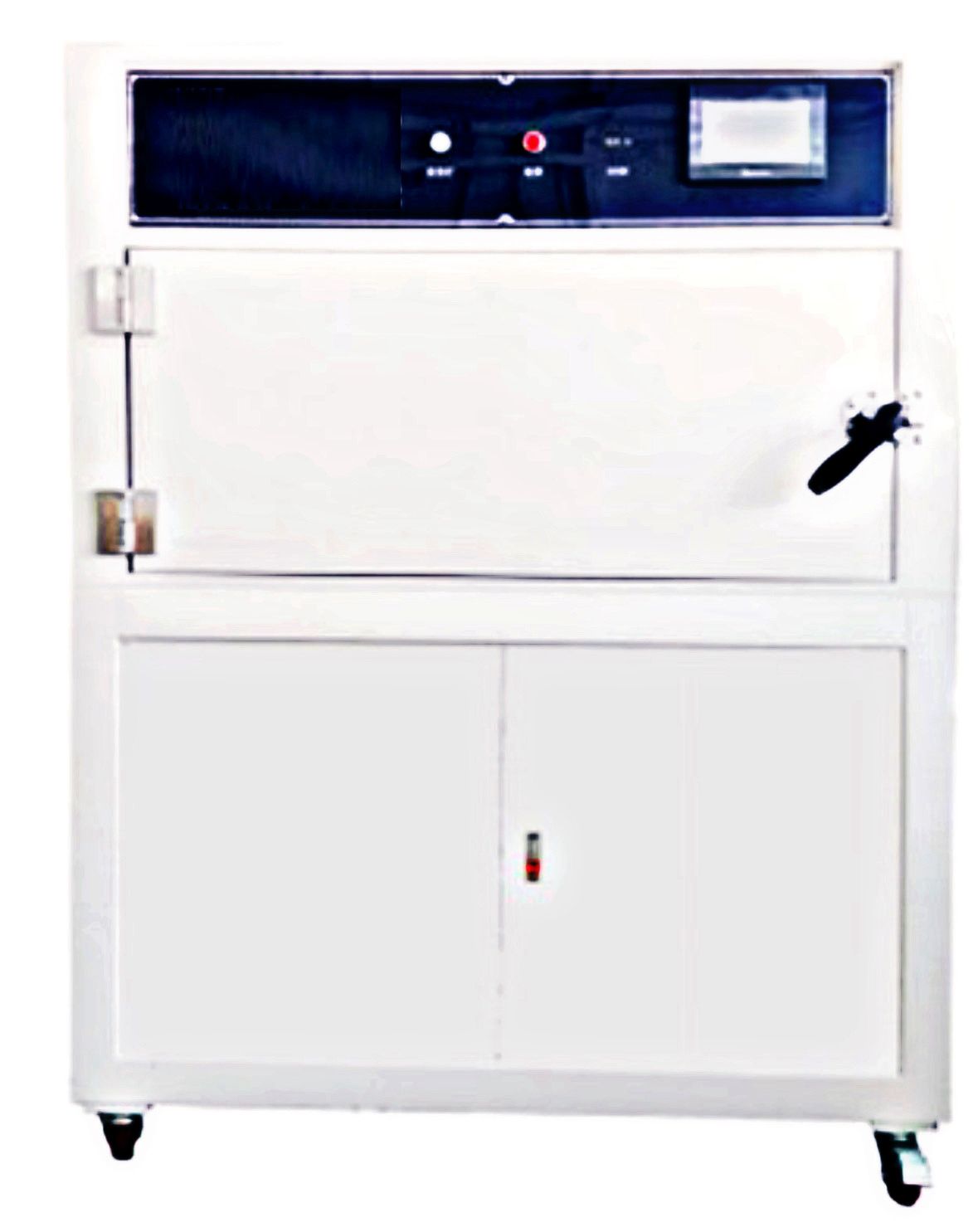

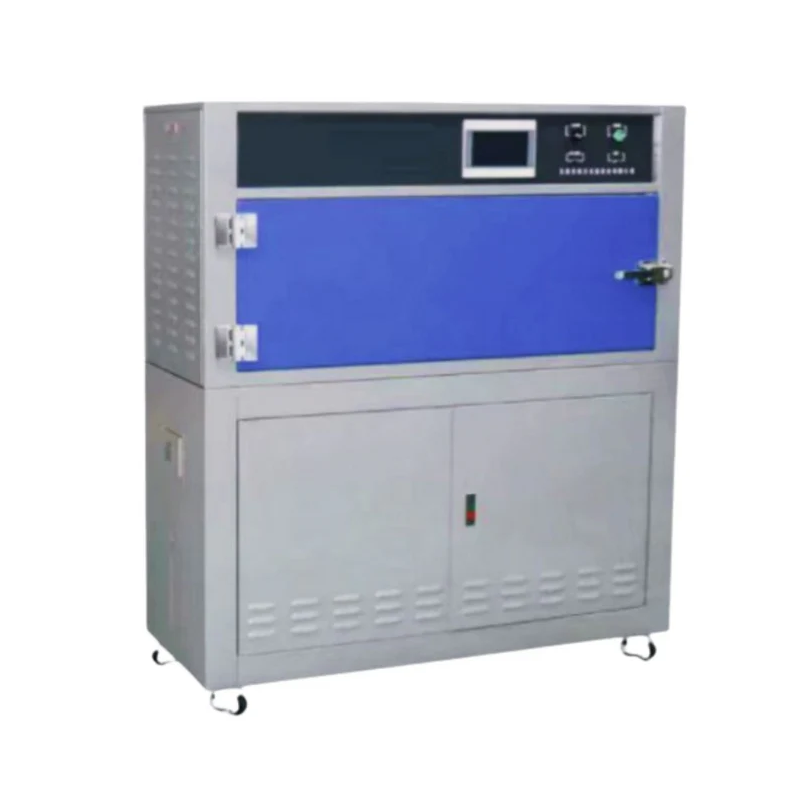

This UV Accelerated Aging Chamber is the optimal choice for guaranteeing the strength and longevity of your products in different environmental settings. It is specifically engineered to meet the demands of a wide range of industries, utilizing cutting-edge technologies such as UV radiation simulation, condensation, and water spray mechanisms, as well as precise temperature regulation, to accurately replicate the harsh conditions of sunlight exposure, rain, and morning dew.

Experience the ultimate in reliability, precision, and performance with the UV Accelerated Aging Chamber for materials testing. Guarantee your products can withstand even the toughest environmental conditions, providing long-term durability.

This product is available in the following sizes (Testing Room Size):

  • 36” x 48”
  • 41” x 19” *

* The information provided on this page corresponds to 41” x 19” (Testing Room Size). For details regarding 36” x 48” (Testing Room Size), please feel free to call us at 1(800) 977-7292 or email us at sales@cureuv.com

Main Functions:

  • UV Lamp Simulation: Powerful UV lamp accurately mimics the sun's impact on materials for comprehensive testing of UV radiation effects.

  • Condensation and Water Spray System: Sophisticated system replicates the challenges posed by rain and dew, providing a holistic assessment of material durability.

  • Temperature Control: Precise control over temperature during testing, allowing evaluation under a range of conditions, from high heat to humidity.

  • Versatile Applications: Ideal for a wide array of industries, including but not limited to:

    • Paint
    • Resins
    • Plastics
    • Printing and Packaging
    • Aluminum
    • Adhesives
    • Automotive
    • Cosmetics
    • Metals
    • Electronics
    • Electroplating
    • Medicine


  • Simulated Sunlight:

    • Utilizes UV lamps to simulate sunlight in the ultraviolet part of the short-wave spectrum.
    • Provides options for different wavelengths of UV ultraviolet light (UVA and UVB) based on testing requirements.
  • UV Lamp Types:

    • UVA-340 lamps: Excellent simulation of short-wave UV light in sunlight.
    • UVB-313 lamps: Emits strong solar ultraviolet radiation, accelerating material aging for quality control and research.
    • UVA-351 lamp: Simulates UV sunlight through windows, effective for indoor material aging tests.
  • Moisture Condensation Environment:

    • Simulates outdoor wet erosion through a unique function during the test cycle.
    • Utilizes condensation method to replicate outdoor wet conditions, maintaining 100% relative humidity and high temperature.
    • Offers two moisture simulations, with some models allowing the use of water spray for practical results.
  • Temperature Control in Each Cycle:

    • Enables precise temperature control at a set value.
    • Monitors temperature with a thermometer for reproducibility and acceleration of the aging process.
  • Water Spray System for Some Applications:

    • Simulates environmental conditions with drastic temperature changes and rainfall.
    • Effective in replicating thermal shock and mechanical erosion.
    • Features a sprinkler system with 12 nozzles for controlled water spray.
  • Irradiation Intensity Control:

    • Optional light intensity control for accurate and reproducible results.
    • Allows users to set different light intensity requirements, with a feedback loop device for precise control and extended lamp life.

Main Structure:

  • Box Design:

    • Numerical control equipment used for precise construction.
    • Advanced technology results in smooth lines and an elegant appearance.
  • Material Composition:

    • Box made from 0.47 in. thickness 304SUS stainless steel for durability.
  • Air Duct System:

    • Single-cycle system in the oven's air duct.
    • Axial flow fan imported to enhance air flow and heat ability.
    • Greatly improves temperature uniformity within the cabinet.
  • UV Lamp Configuration:

    • Special UV lamp design with 2 rows, 8PCS, 40W/PC.
    • Lamp lifetime exceeds 1600 hours.
  • Water Supply and Consumption:

    • Uses tap water or distilled water, approximately 2.11 gal. / day.
  • Lamp Installation:

    • 8PCS UVA or UVB lamps installed on both sides of the studio.
  • Heating Method:

    • Bladder tank type heating for fast heating and uniform temperature distribution.
  • Tank Cover:

    • Double flip design for easy closure.
  • Water Level Control:

    • Automatic filling of tank water to prevent damage from heat pipe air.
  • Sample Frame Material:

    • Sample frame made from stainless steel or aluminum alloy.
  • Mobility:

    • High-quality PU wheels fixed to the machine bottom for easy movement.
  • Drainage System:

    • U-type drainage device for effective drainage.
  • UV Light Placement:

    • Test sample surface aligned with UV light plane in parallel.
  • Sprinkler System:

    • Internal automatic sprinkler spray system with adjustable water pressure.

 Technical Information:


Lamps Quantity UV Bulbs: 8  /  Spare bulbs :4  (UVA340 - UVB313 - UVA351)
UV Temperature From 113° F to 158° F
Black temperature From 104° F to 140° F
Testing Room Capacity 41.33 x 19.68 x 11.81 in.
Water and Consumption Distilled water - 2.11 gal per day
Dimension (W x D x H) 53.93 x 20.86 x 53.54 in.
Weight 335 lbs.
Power  1 ψ - 120V/60 Hz,16A or 230V/50 Hz, 9A,1800W (max)


* The information provided on this page corresponds to 41” x 19” (Testing Room Size). For details regarding 36” x 48” (Testing Room Size), please feel free to call us at 1(800) 977-7292 or email us at sales@cureuv.com
