UV Ballast for GPH843T5L Germicidal UV Light Bulb - Single
Free Gift


UV Bulb Price Match Guarantee

  • Lamp Operation:
    • 1x lamp or 2x lamps T5 - 425ma
    • 45w max
    • Bi-pin or single ended lamps only
    • 1x lamp - TUV36W, 38W / 41W T5
    • 1 or 2 lamps - 10W / 14W / 15W / 17W / 21WT5, TUV18W, T3 17" (25WT5), T3 12" (16WT5)
    Ballast Dimensions: L: 5.05", W: 2.36", H: 1.00"
    Operating Voltage: 120-277VAC
    Frequency: 50/60Hz
    Max. Input Current: 0.408A
    Rated Max. Load: 42W
    Protection Output: Yes
    Protection Input: Fuse/MOV
    Over Current: Yes
    Ballast Lamp Starting Mode: Program
    Transient Protection: C62.41 Class A 7 strikes
    RFI/EMI: FCC Part 18 B consumer
    Regulatory Approvals: UL/cULus
    Class P Inherent Thermal Protection: Type 1 Outdoor
    Sound Rating: "A"
    Min. Operating Temp.: 0 degrees Celsius (32 degrees Fahrenheit)
    Max Case Temp.: 75 degrees Celsius (167 degrees Fahrenheit)

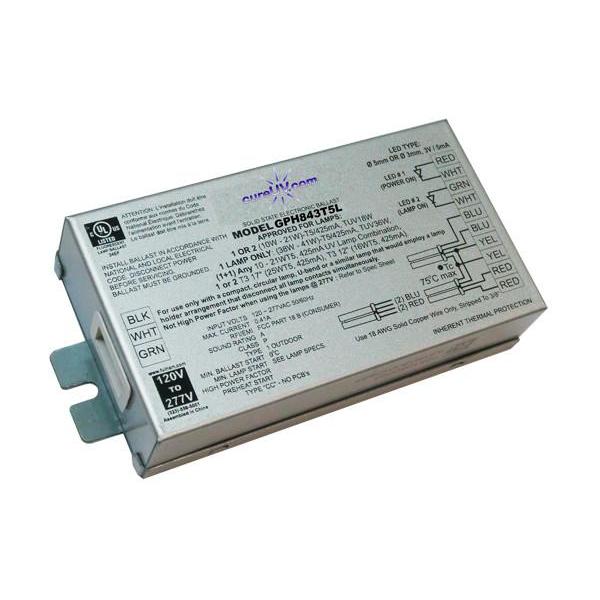

    UV Ballast for GPH843T5L Germicidal UV light bulb (single lamp) provides a low-maintenance, energy-efficient solution for germicidal ultraviolet lighting applications, including water purification, air purification and surface disinfection.

    Electronic ballast with Program start, 1 lamp, 120-277 VAC with primary and secondary connectors, 70c max case, 3 year warranty, cULus, with lamp operation and AC power LED connector. For lamp operation, case size details and other technical information, click the Specifications tab.

  • GPH843T5L
