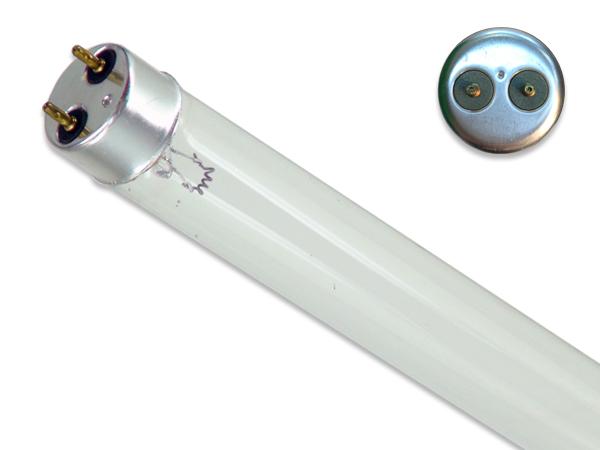

UV Guard 11076 Replacement Germicidal Light Bulb

UV Guard 11076 Replacement Germicidal Light Bulb

The UV Guard 11076 Replacement Germicidal Light Bulb is 100 % compatible with UV Guard Lamp with the following model numbers:

• 6-181014
• TUV 75W
• HOT8

The CureUV’s ultraviolet lamps are manufactured using the high industry standards and meets or exceeds the OEM specifications. We ensure that each lamp from CureUV undergoes 100% quality control inspection to provide you utmost safety with water. The UVC bulb features a wavelength with lethal effectiveness of up to 254nm. This causes a disruption of the microorganism DNA and renders them harmless. Measuring at 47.22 inches in length, this UVC lamp has a life of up to 10,000 hours. With CureUV’s UV lamp you get a 12 month worry free operation after which we recommend that you replace the light bulb.

The germicidal water treatment bulb comes with a shatterproof coating that protects the lamp during damage. The coating also keeps the lamp glass from falling into the unit. This results in easy disposal of glass if it shatters and renders it easy to operate the system. The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

• Well water
• Drinking water
• Surface water
• Municipal water
• Wastewater
• Food service/processing
• Beverage service/processing
• Hospitals
• Aquaculture
• Pools, Spas and Water Features
• Chemicals
• Oil, Gas and Power
• Pulp, paper and wood
• Electronics
• Cosmetics
• Pharmaceuticals
• Hotels
• Water bottlers
• Laboratories
• Marine and more

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Technical Specifications:

• Total Length: 47.22 inches (1199mm)
• Lamp Quartz Diameter: 28mm
• Operating Current: 840mA
• Lamp Voltage: 110 V
• Lamp Wattage: 75 Watts
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 2 Pin
• Base Material: Metal
• Rated Life: Up to 9,000 hours

Safety Data Sheet:

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
