UV Curing Lamp - UVT Part # UVT3218B16 UV Curing Lamp Bulb
UV Curing Lamp - UVT Part # UVT3218B16 UV Curing Lamp Bulb UV Curing Lamp - UVT Part # UVT3218B16 UV Curing Lamp Bulb UV Curing Lamp - UVT Part # UVT3218B16 UV Curing Lamp Bulb

UVT Part # UVT3218B16 UV Curing Lamp Bulb
Free Gift

SKU: UV Bulb Price Match Guarantee
$200.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 12 Inch Arc Length - 17.75 Inch Total Length (end to end)

The UVT Part # UVT3218B16 UV Curing Lamp Bulb is a 600 WPI lamp bulb that is filled with mercury and has an arc length of 12 inches. The 17.75 inches lamp bulb has an output power of 600 WPI and exceeds OEM standards of curing bulb performance. The lamp bulb is completely compatible to the UVT UV systems and works well with the following part numbers:

  • UVT3218B16
  • UVT
  • M550190
  • 3718B10

The CureUV’s replacement bulbs work to cure dry coatings in signs and graphics. Made in the USA, the UV printer bulb provides a predictable lifespan and works to dry coatings and inks. With CureUV, you can be assured of UV lamps for printers in different arc length and spectral fills. Unlike curing using heat, the curing UV bulbs do not release volatile organic compounds in air that makes them an extremely eco-friendly option. The quartz plate in the curing lamp keeps the lamp away from debris and works as a filter between the curing system and the lamp. The usage of light instead of heat enables the ink to harden and dry instantly.

Technical Specifications:

  • Output Power: 600 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 12 Inches

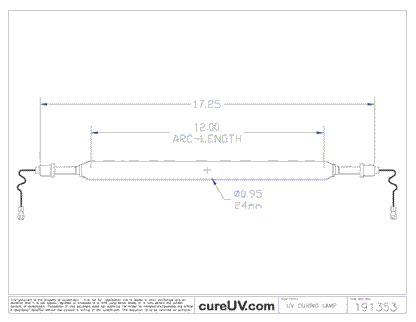

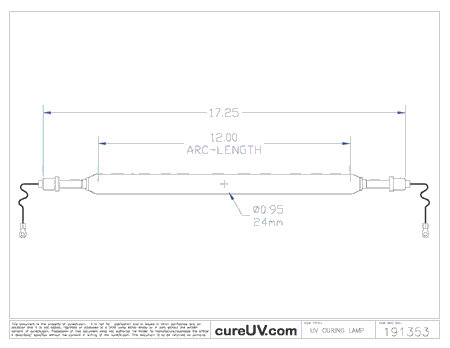

  • Overall Length: 17.75 Inches

UV Spectral Output of a Mercury UV Lamp

UV Spectral Output of a Mercury UV Lamp (PDF)

12In. Arc UV Lamp 600 WPI - UVT UV System - OEM Pt # UVT3218B16 (PDF)

12In. Arc UV Lamp 600 WPI - UVT UV System - OEM Pt # UVT3218B16

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
