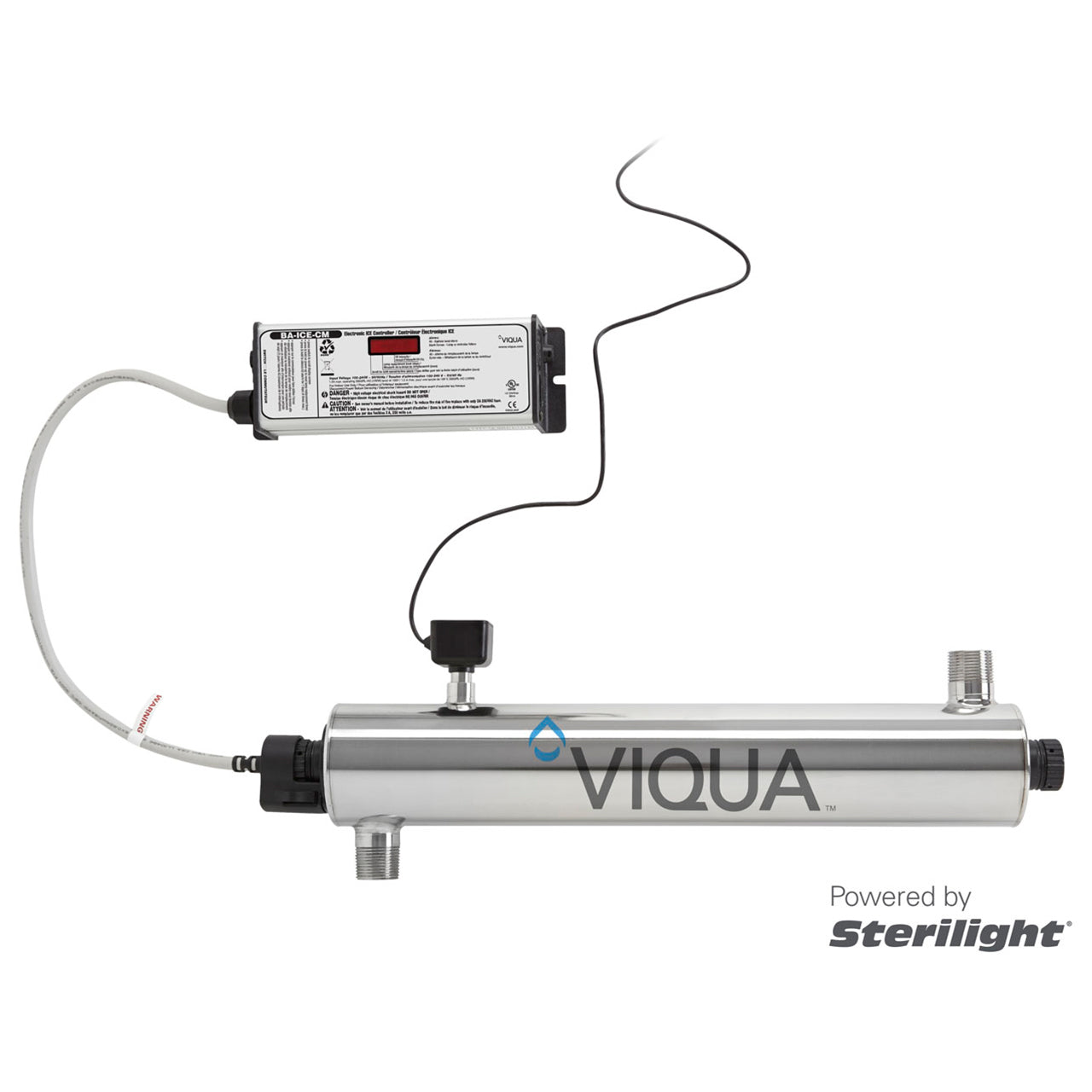

Viqua VH410 & VH410M Cobalt Series UV Water Sanitizer

The VIQUA VH410 and VH410M are compact whole-home ultraviolet water treatment systems designed for larger residential and light commercial point-of-entry applications. Engineered for flow rates up to 18 GPM (70 LPM) at 30 mJ/cm², these systems provide dependable chemical-free UV disinfection for homes, cottages, restaurants, offices, and other low- to moderate-flow installations.

As part of the VIQUA HOME family, both models combine a high-output UV lamp with a durable stainless steel chamber and user-friendly controller to deliver strong UV performance in a compact footprint. The monitored VH410M adds real-time UV intensity feedback through an integrated UV sensor and supports optional solenoid shutoff integration for applications that require an added level of operational protection.

Features & Benefits

• Whole-Home UV Performance: Treats up to 18 GPM (70 LPM) at 30 mJ/cm²
• High UV Dose Capability: Delivers 14 GPM (54 LPM) at 40 mJ/cm² for higher disinfection requirements
• High-Output UV Lamp: Specially designed lamp provides consistent UV output over a 9,000-hour service life
• Compatible with CureUV Lamps & Quartz Sleeves: Designed to support equivalent replacement components for flexible sourcing
• Compact Space-Saving Design: High-output lamp technology delivers strong UV performance in a shorter chamber
• Reliable Controller Performance: Constant-current electronics help maintain stable lamp output during power fluctuations
• Easy Maintenance: Countdown timer, digital display, and audible lamp replacement reminder simplify routine service
• Audible Lamp Failure Alarm: Alerts the user if lamp operation is interrupted
• Durable Stainless Steel Chamber: 304 stainless steel construction supports long-term performance and resists UV degradation
• Monitored Performance on VH410M: Integrated UV sensor provides continuous UV intensity feedback
• Optional Solenoid Protection: VH410M supports an optional solenoid valve to stop water flow if UV conditions fall below the desired level

Microbial Protection

The VH410 and VH410M help inactivate common waterborne microorganisms, including:

• Cryptosporidium
• Giardia
• E. coli
• Fecal Coliform

Model Differences

VH410
The VH410 is the standard model, offering dependable whole-home UV treatment performance with a compact footprint, digital lamp life display, and audible alarms for lamp replacement and lamp failure.

VH410M
The VH410M is the monitored version of the system, featuring an integrated UV sensor for real-time UV intensity monitoring. It also supports optional solenoid valve integration for applications that require automatic water shutoff if UV performance drops below the desired level.

Technical Specifications

VH410

• Part Number: VH410
• Flow Rate @ 16 mJ/cm²: 34 GPM (130 LPM) / 7.8 m³/hr
• Flow Rate @ 30 mJ/cm²: 18 GPM (70 LPM) / 4.2 m³/hr
• Flow Rate @ 40 mJ/cm²: 14 GPM (54 LPM) / 3.3 m³/hr
• Chamber Dimensions: 23.5″ × 3.5″ (59.6 cm × 8.9 cm)
• Controller Dimensions: 9.25″ × 3.25″ × 2.5″ (24 cm × 8.1 cm × 6.4 cm)
• Connection Size: Combo 3/4″ FNPT, 1″ MNPT
• Voltage: 100–240V, 50/60Hz
• Power Consumption: 60W
• Shipping Weight: 17 lb (7.7 kg)
• Chamber Material: 304 stainless steel
• Maximum Operating Pressure: 125 psi (8.62 bar)
• Influent Water Temperature: 36–104°F (2–40°C)
• Lamp Life: 9,000 hours

VH410M

• Part Number: VH410M
• Flow Rate @ 16 mJ/cm²: 34 GPM (130 LPM) / 7.8 m³/hr
• Flow Rate @ 30 mJ/cm²: 18 GPM (70 LPM) / 4.2 m³/hr
• Flow Rate @ 40 mJ/cm²: 14 GPM (54 LPM) / 3.3 m³/hr
• Chamber Dimensions: 23.5″ × 3.5″ (59.6 cm × 8.9 cm)
• Controller Dimensions: 9.25″ × 3.25″ × 2.5″ (24 cm × 8.1 cm × 6.4 cm)
• Connection Size: Combo 3/4″ FNPT, 1″ MNPT
• Voltage: 100–240V, 50/60Hz
• Power Consumption: 60W
• Shipping Weight: 17 lb (7.7 kg)
• Chamber Material: 304 stainless steel
• UV Sensor: Included
• Optional Accessory: Solenoid valve
• Maximum Operating Pressure: 125 psi (8.62 bar)
• Influent Water Temperature: 36–104°F (2–40°C)
• Lamp Life: 9,000 hours

Installation Notes

• Install on the cold water line only
• A 5-micron sediment filter should be installed ahead of the UV system
• The UV system should be the final piece of treatment equipment in the treatment train
• The chamber may be mounted vertically or horizontally; for horizontal installation, the outlet port should face upward
• The controller should be mounted above or beside the chamber and protected from water exposure
• A GFCI-protected outlet is recommended
• An optional bypass assembly can be added to simplify maintenance
• An optional temperature management valve may be used to help address hot water buildup during periods of no flow

Documents:

System Manual

Ultraviolet Water Treatment Systems

If you have any questions or are unsure about anything, please call us at (800)977-7292 or email us at sales@cureuv.com, and we will be happy to assist you.
