UV Curing Lamp - VUTEk PressVu 180 A19429 UV Curing Lamp Bulb
UV Curing Lamp - VUTEk PressVu 180 A19429 UV Curing Lamp Bulb UV Curing Lamp - VUTEk PressVu 180 A19429 UV Curing Lamp Bulb UV Curing Lamp - VUTEk PressVu 180 A19429 UV Curing Lamp Bulb UV Curing Lamp - VUTEk PressVu 180 A19429 UV Curing Lamp Bulb UV Curing Lamp - VUTEk PressVu 180 A19429 UV Curing Lamp Bulb UV Curing Lamp - VUTEk PressVu 180 A19429 UV Curing Lamp Bulb

VUTEk PressVu 180 A19429 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$278.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Iron Wavelength - 6 Inch Arc Length - 9.375 Inch Total Length (end to end)

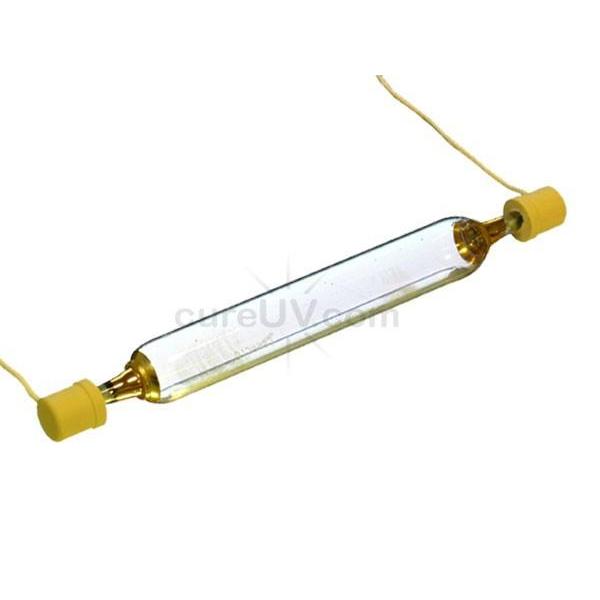

The Vutek Pressvu 180 A19429 UV Curing Lamp Bulb is an iron, metal halide compatible replacement bulb that has an arc length of 6" and a total length of 9.375". With a 26.5mm tube diameter, the UV lamp is 100% compatible to the VUTEk PressVu 180 UV Flatbed Printer with the following part numbers:

  • A19429
  • PressVu 180
  • AA99744
  • F06K5F1
  • UVL/3506M

The replacement bulb undergoes stringent quality control measures that ensure you get the best output at all times. With the generic replacement parts from CureUV, you can be sure of improved gloss, better chemical resistance, abrasion and scratch resistance along with better bond strength. The process of UV curing involves high-intensity UV rays that instantly dries and cures inks and coatings. The curing of inks using UV rays is used as an alternative to the conventional solvent-based curing. With the conventional method there is a higher risk of environmental pollution. The result is greater productivity, higher quality printing and lower production costs.

Technical Specifications:

  • Fill: Iron-Metal Halide
  • Quartz: Standard
  • Arc Length: 6 Inches
  • Overall Length: 9.375 Inches
  • Tube Diameter: 26.5 mm
  • Watts Per Inch: 500 WPI

UV spectral output of an Iron doped Lamp

UV Spectral Output of an Iron doped Lamp (PDF)

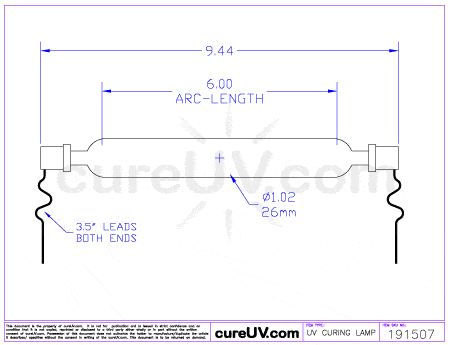

VUTEk PressVu 180 Compatible UV Lamp - Drawing (PDF)

VUTEk PressVu 180 compatible digital UV curing lamp drawing

*Fe - Lamp contains iron - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All lamps listed are compatible brand UV products. We do not sell EFI/VUTEk brand lamps. All EFI/VUTEk brand names, trademarks and logos are property of EFI.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
