UV Quartz Plate - VUTEk PressVu 200 Replacement UV Quartz Hot Mirror - IR Blocker
UV Quartz Plate - VUTEk PressVu 200 Replacement UV Quartz Hot Mirror - IR Blocker UV Quartz Plate - VUTEk PressVu 200 Replacement UV Quartz Hot Mirror - IR Blocker

VUTEk PressVu 200 Replacement UV Quartz Hot Mirror - IR Blocker
Free Gift


UV Bulb Price Match Guarantee

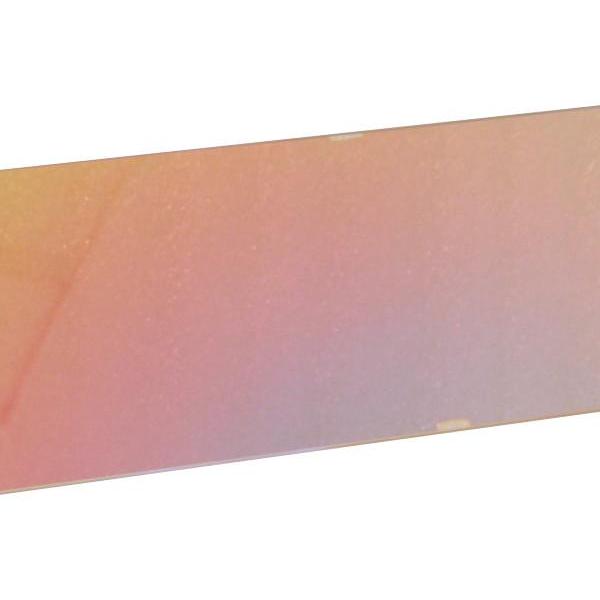

Guaranteed 100% Ultraviolet (UV) Replacement Quartz Plate / Hot Mirror compatible for VUTEk PressVu 200

Our Vutek Pressvu 200 Replacement UV Quartz Hot Mirror - IR Blocker is guaranteed UV replacement quartz plate/hot mirror that is compatible with Vutek Pressvu 200 printer. With a dimension of 6" x 5.25" x 2mm, the UV quartz hot mirror exceeds OEM standards of curing performance. With CureUV’s replacement hot mirror you can ensure the significant reduction in the chances where the application is affected due to absorption, temperature and reflectivity. CureUV’s replacement quartz plate is specially designed dichroic filter that protects optical systems by reflecting infra red light back into the light source. By doing so, it allows the passage of visible light.

CureUV’s hot mirror helps in reducing the effect of infrared rays (IR). This may play a vital role in improving the printing clarity. Along with dichroic reflectors, the hot mirrors improve UV energy and reduce infra red energy. IR radiations can cause a likely damage to certain substrates that are highly heat sensitive. The hot mirrors help in directing the IR energy to the filament, to give you a better printing experience by providing you a reliable way of removing heat.

CureUV’s hot mirror significantly reduces the chances of applications damage by heat, thereby reducing production costs and increasing production speed.

The UV replacement plate is compatible with the following:

  • PressVu 200
  • Press Vu 200
  • UVHM/52060


  • Helps in greater transmittance in the area of UV light
  • Allows lesser heating up of the substrate surface
  • Greater suppression in the areas of infrared and visible light

Common Applications:

  • Graphics industry
  • Electronics industry
  • Wood processing industry
  • Surface treatments
  • Packaging industry
  • Sensitive labels and gluing industry
  • Printed circuit board industry
  • Automotive industry

VUTEk PressVu 200 compatible UV quartz hot mirror drawing

UV light transmittance graph for quartz hot mirror

  • Tavg > 85%: 220-400nm
  • Tavg < 30%: 430-630nm
  • Tavg <= 87%: 700-2500nm

VUTEk PressVu 200 UV Quartz Hot Mirror - Drawing (PDF)

UV light transmitted for Quartz hot mirror/IR blocker

*All quartz hot mirrors listed are compatible brand UV products. We do not sell EFI/VUTEk brand quartz hot mirrors. All EFI/VUTEk brand names, trademarks and logos are property of EFI.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
