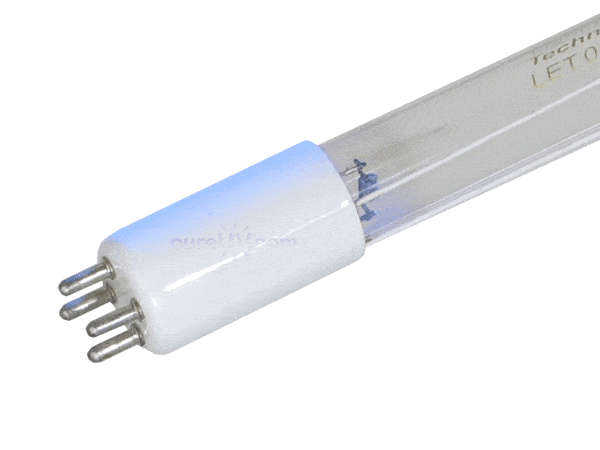

4 Pin on a Single End - 40 Watt Germicidal Water Treatment Bulb

The Fischer & Porter G36T5L/4P Replacement UVC Light Bulb is a 40 Watt germicidal UVC bulb that has a total length of 33.19" and an arc length of 29.92". With the lamp voltage of 120V, the replacement bulb is a generic OEM spare part that has a rated life of 10,000 hours. We recommend that after the designated hours it is better to replace the lamp bulb even though it continues to emit light. The UVC lamp bulb has a base style of four pin on a single end and a peak output of 253.7nm. This short wavelength alters the genetics of the microorganisms and makes them incapable of reproduction. The UVC bulb is compatible with the following UVC system models and their part numbers:

Fischer & Porter Part Number:

G36T5L/4P

Fischer & Porter System Model:

443U575U02
690B021U02

The light bulb works for the following common applications:

Aquaculture
Beverage Services and Processing
Drinking Water
Food Services and Processing
Municipal Wastewater
Pools, Spas, and Water Features
Well Water

Technical Specifications:

Total Length: 33.19 inches (843mm)
Arc Length: 29.92 inches (760mm)
Lamp Quartz Diameter: 15mm
Operating Current: 420mA
Lamp Voltage: 120V
Lamp Wattage: 40 Watts
Output UVC Watts: 13.8 Watts
Peak UV Output: 253.7nm
Glass Type: Non Ozone
Base Style: 4 pin on a single end
Base Material: Ceramic
Rated Life: Up to 10,000 hours

Common Locations for use:

Factories
Farms
Homes
Hospitals
Hotels
Laboratories
Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194685 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

Drawing of Fischer & Porter G36T5L/4P UVC Bulb - item # 194685

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Fischer & Porter brand UVC bulbs. All Fischer & Porter brand names, trademarks, and logos are property of Fischer & Porter.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.

Item		Price	Qty	Total
		Subtotal	$0.00
		Shipping
		Total

Fischer & Porter

Fischer & Porter G64T5L/4P Replacement UVC Light Bulb

Fischer & Porter G36T5L/4P Replacement UVC Light Bulb

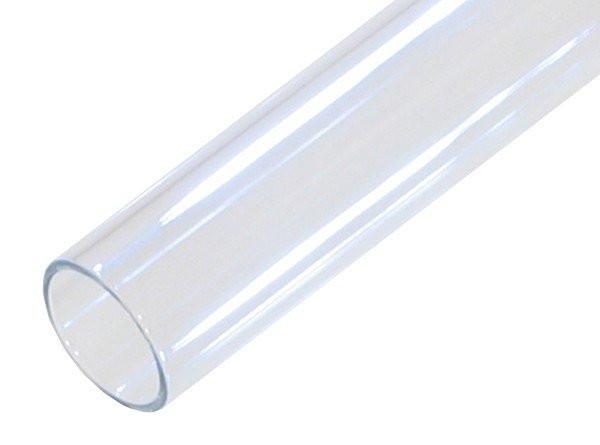

Quartz Sleeve for Fischer & Porter G36T5L/4P Replacement UVC Light Bulb
