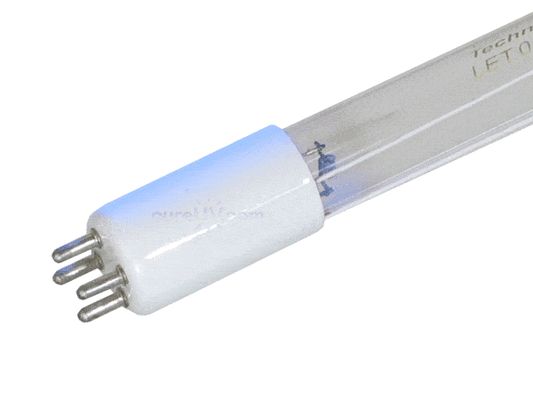

4 Pin on a Single End - 16 Watt Germicidal Water Treatment Bulb

The Life Flo GPH357T5L/4P-Life-FLO Replacement UVC Light Bulb is a 16Watt germicidal water treatment bulb. It has a total length of 14.06" and an arc length of 10.83". The replacement bulb is made using non-ozone glass and has a base style of four pin on a single end. The UVC light bulb has a rated life of 10,000 hours after which we highly recommend that you replace the light bulb to maintain the efficiency of the system. The UVC bulb is compatible for use with the following germicidal system models:

2GPM

The UVC light technology helps in sterilizing, and killing 99.9% microorganisms present in water. The UVC bulb emits a short wavelength of 253.7nm that acts on the genetic structure of the microorganisms and renders them harmless against causing diseases. Since this method is only a physical state, it does not alter the pH, composition and taste of water. This makes the UV light water treatment a safe method when compared to adding chemicals such as chlorine to treat water. The UVC method is also an eco-friendly method of water treatment than chlorination.

Common Applications:

Aquaculture
Beverage Services and Processing
Drinking Water
Food Services and Processing
Municipal Wastewater
Pools, Spas, and Water Features
Well Water

Technical Specifications:

Total Length: 14.06 inches (357mm)
Arc Length: 10.83 inches (275mm)
Lamp Quartz Diameter: 15mm
Operating Current: 320mA
Lamp Voltage: 56V
Lamp Wattage: 16 Watts
Peak UV Output: 253.7nm
Glass Type: Non Ozone
Base Style: 4 pin on a single end
Base Material: Ceramic
Rated Life: Up to 10,000 hours

Common Locations for use:

Factories
Farms
Homes
Hospitals
Hotels
Laboratories
Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194682 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

Drawing of Life Flo GPH357T5L/4P-Life-Flo UVC Bulb - item # 194682

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Life Flo brand UVC bulbs. All Life Flo brand names, trademarks, and logos are property of Life Flo.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
