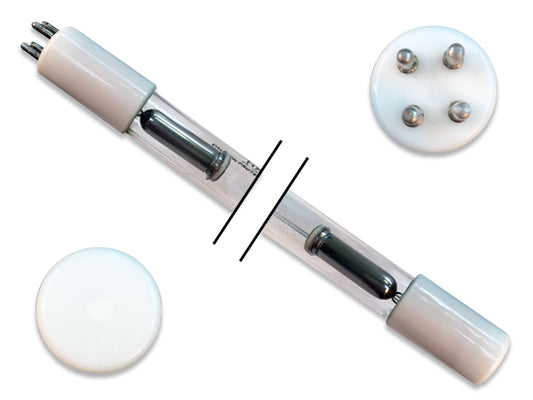

4 Pin on a Single End - 23 Watt Germicidal Water Treatment Bulb

The Rainsoft - SV-10 Generic Replacement UVC Light Bulb is a 23 Watt germicidal water treatment bulb that has four pins on a single end. With a total length of 18.23 inches, CureUV.com’s UVC light bulb is an effective way to sanitize water without altering the water’s pH, taste, or chemistry. This is because using UVC light to disinfect water is a purely physical process and is a far better option for chemicals and their bi-products.

The quality of the water we use immensely affects our health and wellbeing. This germicidal sanitizer is designed to destroy, bacteria, viruses, protozoa, cysts, and other microorganisms that may create havoc on our health. The light bulb emits short UV-C radiation with a UV output peak of 253.7nm. This radiation is considered to be highly lethal for microorganisms and alters their genetic framework and prevents them from reproducing.

We offer two versions of this UV-C bulb; a good quality foreign-made generic replacement unit and an ultra-high quality US-made unit. Both lights are guaranteed to be 100% compatible with the Rainsoft - SV-10 .

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can also select this shatterproof option above.

Technical Specifications:

Total Length: 18.23 inches (463mm)
Arc Length: 15.16 inches (385mm)
Lamp Quartz Diameter: 15mm
Operating Current: 425mA
Lamp Wattage: 23 Watts
Output UVC Watts: 8 Watts
Output uW/cm^2 @ 1m: 78
Peak UV Output: 253.7nm
Glass Type: Non Ozone

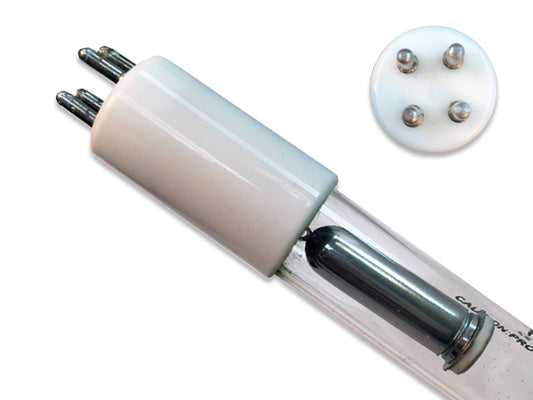

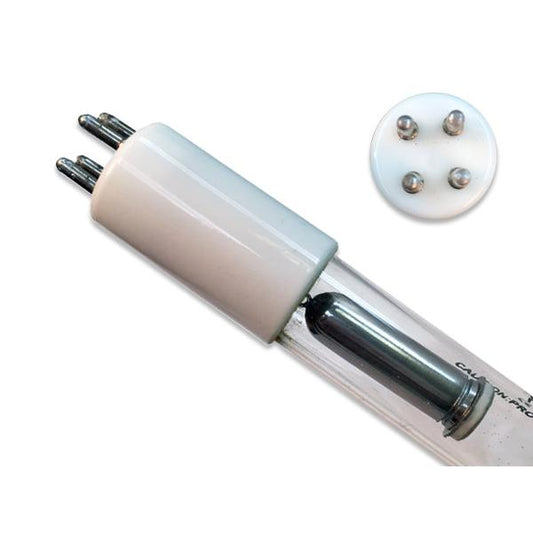

Base Style: 4 pin on a single end
Base Material: Ceramic
Rated Life: Up to 10,000 hours

Common Locations for use:

Factories
Farms
Homes
Hospitals
Hotels
Laboratories
Ships

Drawing of Replacement UVC Bulb

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Rainsoft brand UVC bulbs. All Rainsoft brand names, trademarks, and logos are property of Rainsoft.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.

Rainsoft

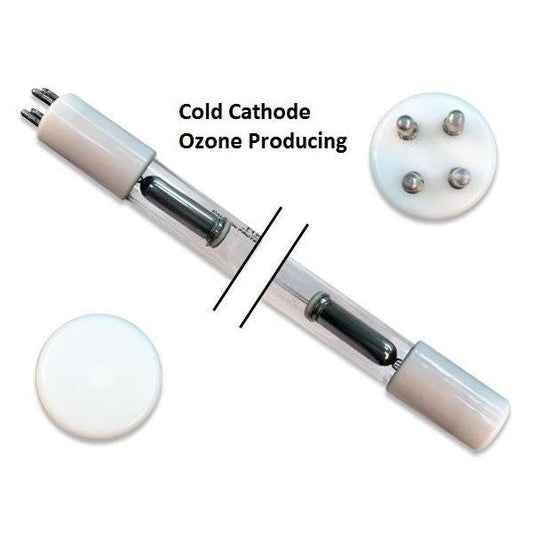

Rainsoft - Air Master Ultra Ozone UV Light Bulb for Germicidal Air Treatment

Rainsoft LAHV90L UV Lamp Ozone for Germicidal Air System

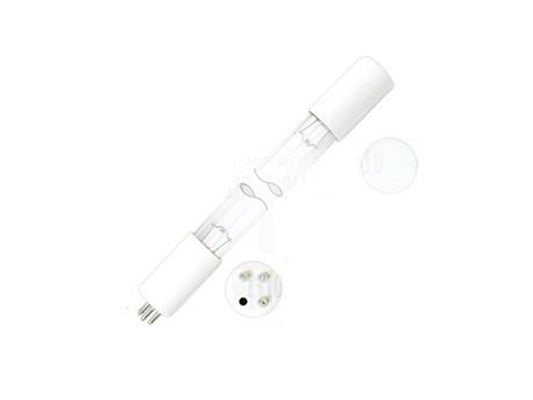

Rainsoft -Dual Lamp Set 65501 UV Light Bulb for Germicidal Air Treatment

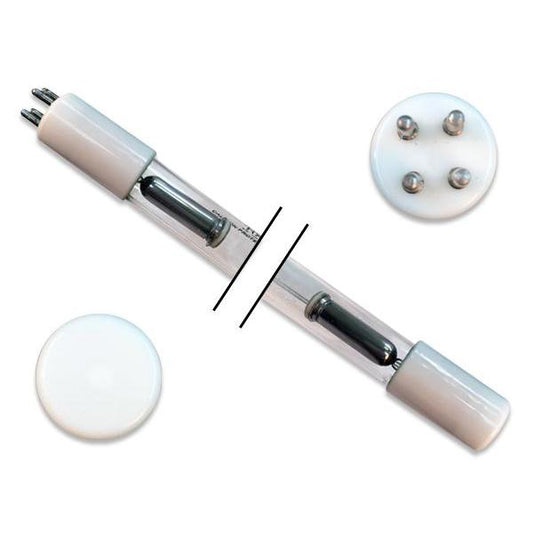

Rainsoft - LAHV90 UV Light Bulb for Germicidal Air Treatment

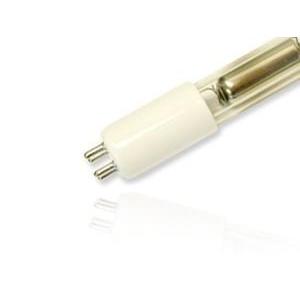

Rainsoft - 65501 UV Light Bulb for Germicidal Air Treatment

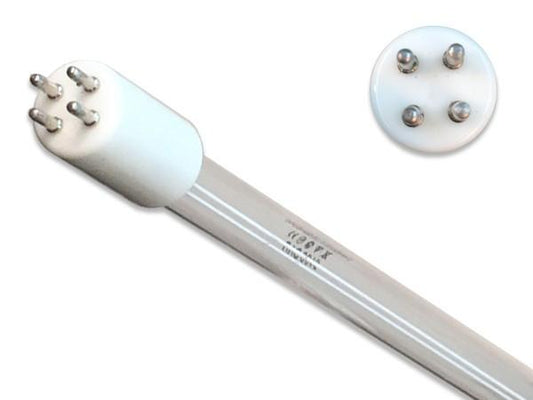

Rainsoft - SV-10 Replacement UVC Light Bulb
