Part #: WEM BF8VS9-13H

This Weldmark Blue Ghost Flame welding helmet is necessary for personal protection when operating a UV curing system or drying products with ultraviolet irradiation.

Features:

3 year lens replacement warranty
3 months headgear and helmet warranty
Lightweight 18 ounce high impact resistant nylon shell
High quality lens performance (DIN 1/2/1/2)
3.86" x 1.73" viewing area
Auto darkening
1/25,000 darkening time
Internal 9-13 variable shade adjustment
Internal sensitivity and delay dial adjustments
Grind mode
5 Amp TIG rating
Auto on/off
Replacement AAA (2) batteries
Solar powered
Large 2/3 replacement sweatband
Magnifying (cheater) lens compatible
5 point adjustment headgear
ANSI Z87.1-2003 / CSA Z94.3, CE/DIN approved

Specifications:

Optical class: 1 / 2 / 1 / 2
Viewing area: 98x44mm (3.86"x1.73")
Cartridge size: 110x90x9mm (4.33"x3.54"x0.35")
Arc sensor: 2
Light state: DIN 3.5
Shade: DIN 9 ~ 13
Shade control: Internal, variable shade
Power on/off: Fully automatic
Sensitivity control: Adjustable by dial knob
UV/IR protection: Up to Shade DIN16 at all times
Power supply: Solar cell. Battery change required, 2 x AAA Alkaline batteries
Low battery warning: Red light
Switching time: 1/25,000 s. from light to dark
Delay (dark to light): 0.1 ~ 1.0s by dial control knob
Low amperage TIG rated: greater than or the same as 5 amps
Grinding: Yes
Operating temperature: -10 degrees C ~ +55 degrees C (14 degrees F ~ 131 degrees F)
Storing temperature: -20 degrees C ~ +70 degrees C (-4 degrees F ~ 158 degrees F)
Helmet material: High impact resistant nylon
Total weight: 450g
Application range: MIG; MAG/CO2; SMAW; Air carbon cutting; TIG (excellent lower amperage TIG response); PLASMA arc welding/cutting
Approved: ANSI Z87.1-2003 / CSA Z94.3, CE / DIN

Item		Price	Qty	Total
		Subtotal	$0.00
		Shipping
		Total

UV Face Shields

UV Face Shield with Shade 5 Protection

Sellstrom UV Face Shield Assembly with Shade 5 Infrared Window

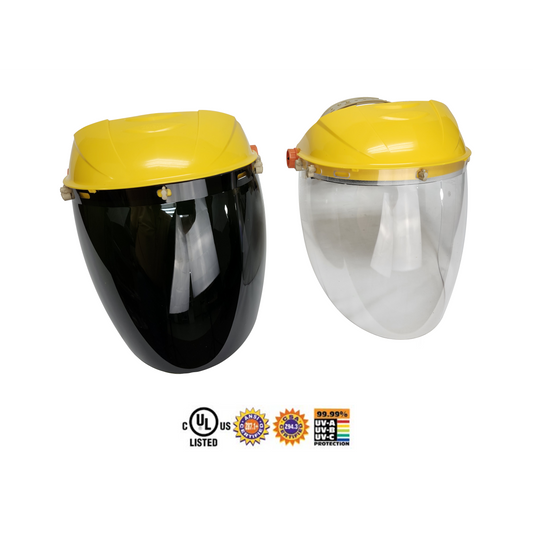

UV Face Shield with Clear Polycarbonate Protection
