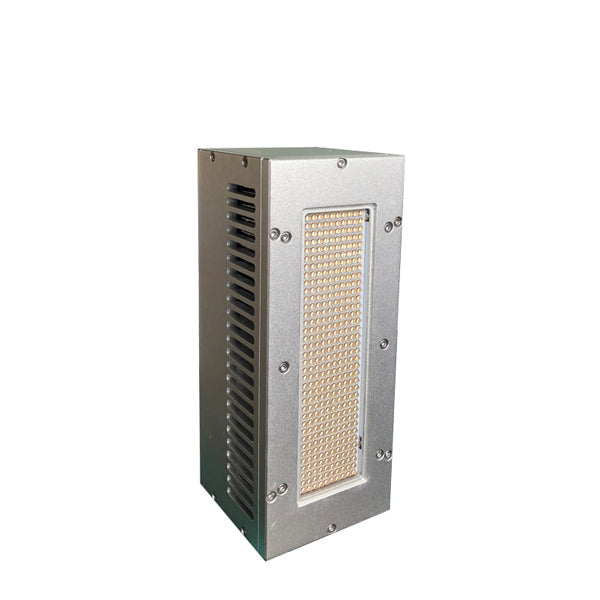

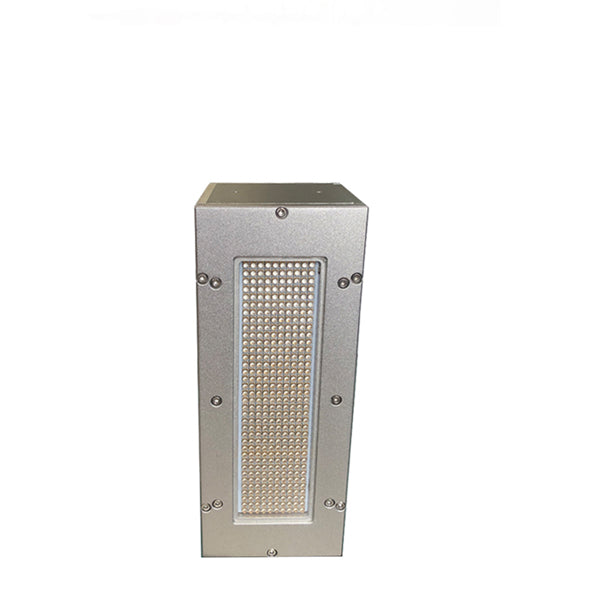

160x400mm UV LED Array with Air Cooling for UV LED Conveyors
160x400mm UV LED Array with Air Cooling for UV LED Conveyors 160x400mm UV LED Array with Air Cooling for UV LED Conveyors 160x400mm UV LED Array with Air Cooling for UV LED Conveyors 160x400mm UV LED Array with Air Cooling for UV LED Conveyors

160x400mm UV LED Array with Air Cooling for UV LED Conveyors
Free Gift

SKU:

UV Bulb Price Match Guarantee
$9,999.00

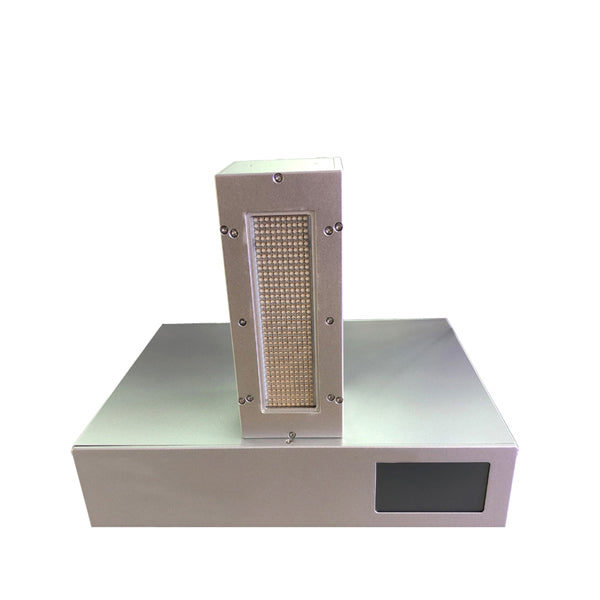

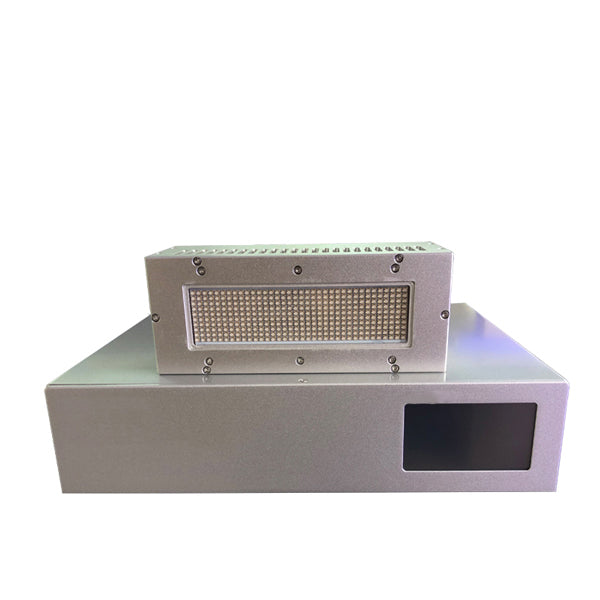

The 160x400mm UV LED Array with Forced Air Cooling is a system designed to fit UV LED Conveyors, consisting of a controller and UV LED Irradiation head, this device is available in 365nm, 385nm, 395nm & 405nm.

This UV LED Array comes with integrated air cooling and is suitable for conveyors with an LED Array that has an effective curing area of 160x400mm.

Features:

  • The integrated forced air cooling system ensures your array works as efficiently as possible, protecting the LED system and extending its useful life
  • UV LED cold light source ensures your material's composition won’t be harmed during curing process
  • No preheating time needed, reach maximum light intensity instantly
  • Power efficient and easy to install, use and control
  • Eco-friendly, produces no ozone or mercury
  • Lampshade protection makes it safer for workers
  • Supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines

Technical Specifications

Available Wavelengths: 365nm, 385nm, 395nm, 405nm

365nm*:

  • Optic Power: 7.93W/cm2
  • Effective Curing Area: 160x400mm
  • Electric Power: 1080W
  • Cooling Method: Forced Air Cooling

395nm*:

  • Optic Power: 15.86W/cm²
    • Effective Curing Area: 160x400mm
    • Electric Power: 1080W
    • Cooling Method: Forced Air Cooling

    *Technical Specifications available at the moment apply to the specified wavelengths.

      We can customize these systems to fit your needs exactly. We would love to help you with your UV LED curing Array. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
