17" Arc Total-Cure Portable UV Lamp Curing System
17" Arc Total-Cure Portable UV Lamp Curing System 17" Arc Total-Cure Portable UV Lamp Curing System 17" Arc Total-Cure Portable UV Lamp Curing System 17" Arc Total-Cure Portable UV Lamp Curing System 17" Arc Total-Cure Portable UV Lamp Curing System

17" Arc Total-Cure Portable UV Lamp Curing System
Free Gift

Brand: SPDI

SKU: 301105

UV Bulb Price Match Guarantee
$25,000.00

  • Free standing UV system for linear products includes all necessary items (Irradiator, Blower, and Power Supply) needed to install and start using. The irradiator has multi direction capability (can be configured curing upward or downward) with support rollers for product support while passing through the UV curing module. Requires input power and 80 PSI and is upgradeable for multiple heads.

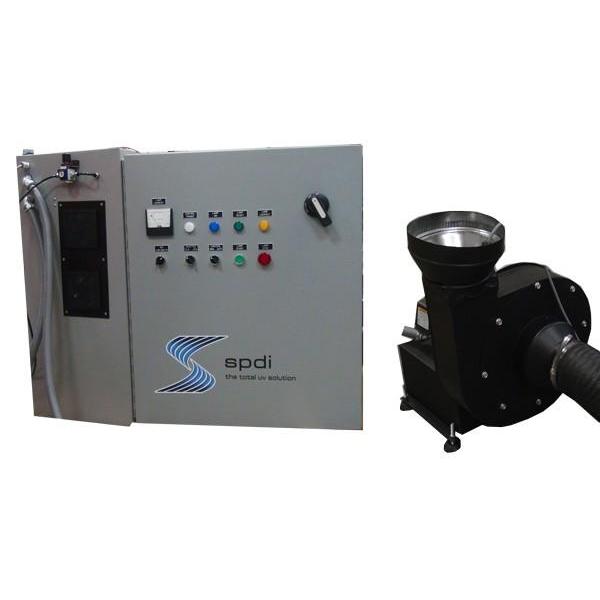

  • UV System includes:

    Power Supply
    • Relay logic controlled 480 VAC / 60 Hz. / 3 phase
    • Ballast rating at 15 year 7/24
    • Auto/Manual shutter switching, system status indicator lamps with ammeter
    • Selectable lamp power output - 400, 500 and 600 WPI operates mercury, iron and gallium type medium pressure UV lamps
    • Wall mountable NEMA style enclosure (alternate version can be mounted on wheels) ATO
    • User friendly pre-determined terminal points (dry contact) for easy integration into your equipment upstream such as control stop, e-stop, shutter open, shutter close, or roll coater engage and disengage
    Free standing UV curing cabinet module and Irradiator with transition rollers
    • Shuttered Irradiator with 17 inch arc length with 20' of cable to power supply
    • Quick connect (Harding style) disconnect pneumatic and control harness
    • Proprietary quick change lamp irradiator with slide out inner cartridge and quick disconnect with safety interlock
    • Lamp changes are tool-less and take minutes to complete
    • Traditional focal point UV reflector with 98% reflectivity and electronically brightened for UV-A
    • Free standing ultra quiet blower with 10' flew hose
  •
