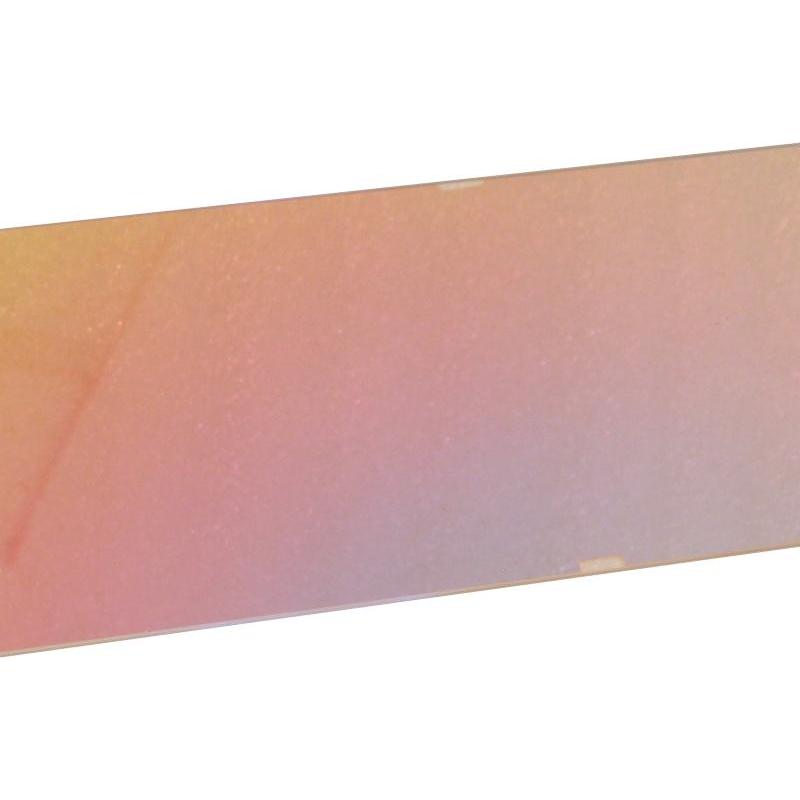

Iwasaki # M048L41 Dichroic Hot Mirror Plate
The Iwasaki # M048L41 Dichroic Hot Mirror Plate is a ground and polished UV grade quartz that is suitable for Iwasaki printers.
The UV hot mirror exceeds OEM standards of UV curing performance. A hot mirror is a specially designed dichroic filter that protects optical systems by reflecting infra red light back into the light source. By doing so, it allows the passage of visible light.
With the help of the UV hot mirror, you can ensure the reduction of the infrared rays (IR) effect that may have a role to play over the printing clarity. Together with the dichroic reflectors, the hot mirrors helps in improving UV energy and in reducing infra red energy that can cause a likely damage to certain substrates that are heat sensitive. By directing the IR energy to the filament, the hot mirror help in giving you a better printing experience by providing you a reliable way of removing heat.
CureUV’s hot mirror significantly reduces the chances of applications damage by heat, thereby reducing production costs and increasing production speed.
Advantages:
- Helps in greater transmittance in the area of UV light
- Allows lesser heating up of the substrate surface
- Greater suppression in the areas of infrared and visible light
Common Applications:
- Graphics industry
- Electronics industry
- Wood processing industry
- Surface treatments
- Packaging industry
- Sensitive labels and gluing industry
- Printed circuit board industry
- Automotive industry
QUESTIONS & ANSWERS
Ask a Question-
What are the dimensions?
The dimensions are: 3.94" (100mm) x 2.83" (72mm) x 2mm
