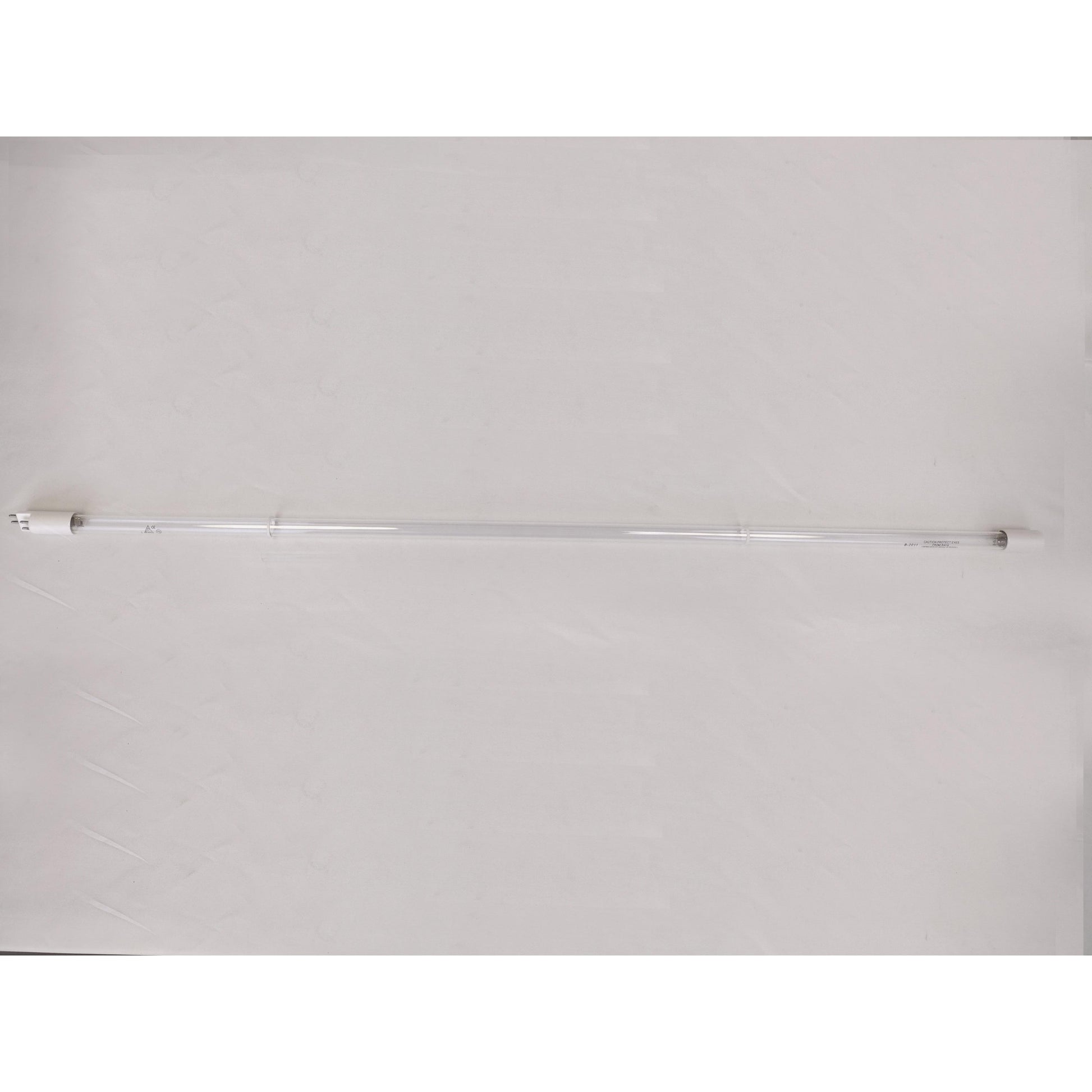

Ultra Dynamics 5340 SUD Replacement UVC Lamp
The Ultra Dynamics 5340 SUD Replacement UVC Lamp is 100% equivalent to Ultra Dynamics Model 5340 SUD germicidal UV light bulb.

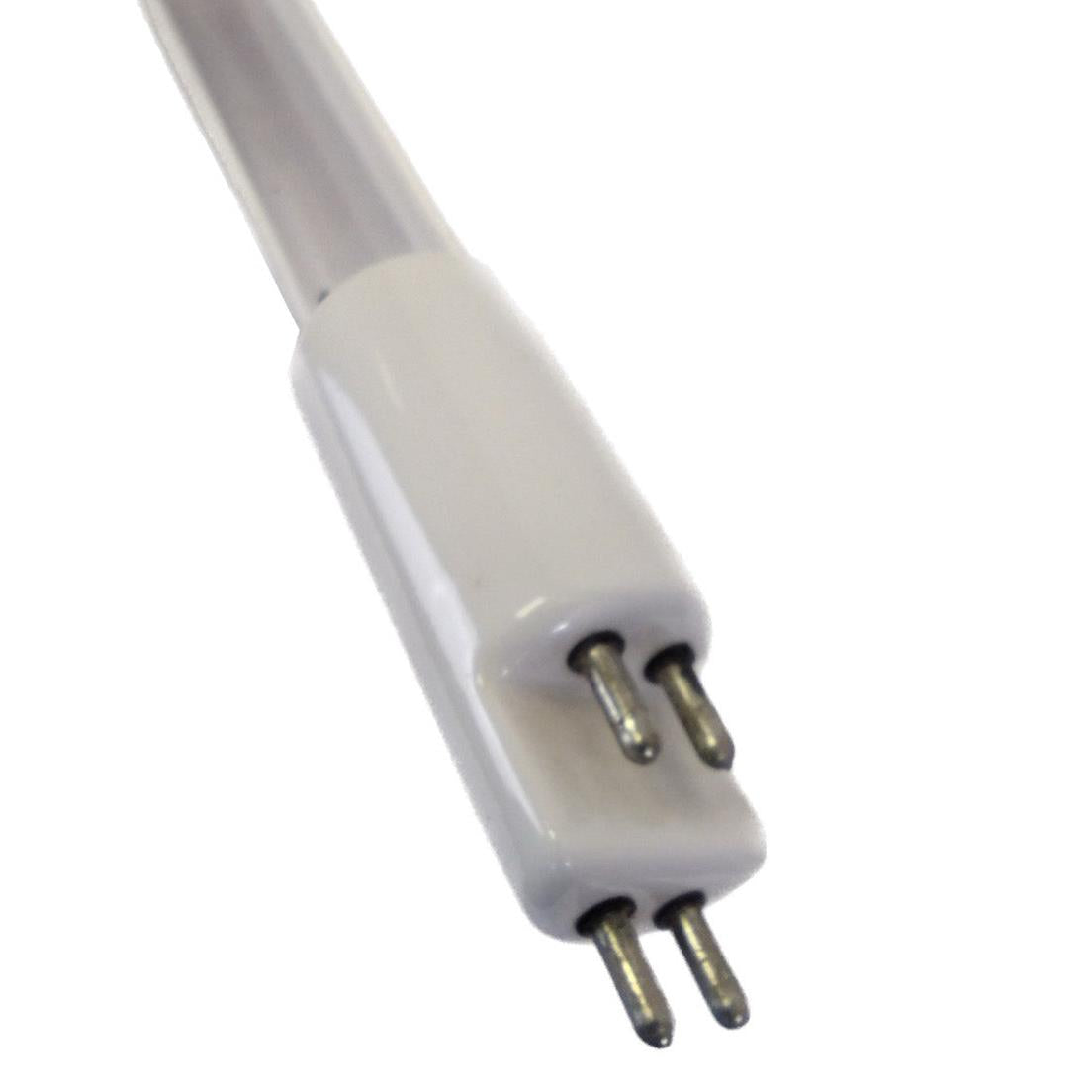

The lamp bulb is a four pin step on a single end germicidal bulb that is used in germicidal OEM Water sterilization filters, UV sanitizers and water purifiers. The water treatment bulb features long life and low mercury dosage that meets environmental demands.
The short wavelength emitted by the light bulb manages to alter the genetic structure of the microorganisms and renders them harmless. The UV light bulb can run for 10,000 hours. It requires an annual replacement to maintain its efficiency though it may continue to emit light.
The germicidal water treatment bulb comes with a shatterproof coating that protects the lamp during damage. The coating also keeps the lamp glass from falling into the unit. This results in easy disposal of glass if it shatters and renders it easy to operate the system. All you will need to do is to select the option above. The UV lamp starts instantly and makes use of a coil filament that operates hot. It is used in the following:
- Well water
- Drinking water
- Surface water
- Municipal water
- Wastewater
- Food service/processing
- Beverage service/processing
- Hospitals
- Aquaculture
- Pools, Spas and Water Features
- Chemicals
- Oil, Gas and Power
- Pulp, paper and wood
- Electronics
- Cosmetics
- Pharmaceuticals
- Hotels
- Water bottlers
- Laboratories
- Marine and more
Technical Specifications:
- Total Length: 33.19 inches (843mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 420mA
- Lamp Voltage: 120V
- Lamp Wattage: 40 Watts
- Peak UV Output: 253.7nm
- Glass Type: Non Ozone
- Base Style: 4 pin Step on a single end
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
Safety Data Sheet for CureUV Germicidal Bulb
Safety Data Sheet for CureUV Germicidal Bulb
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.QUESTIONS & ANSWERS
