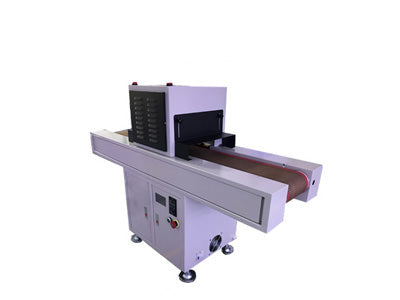

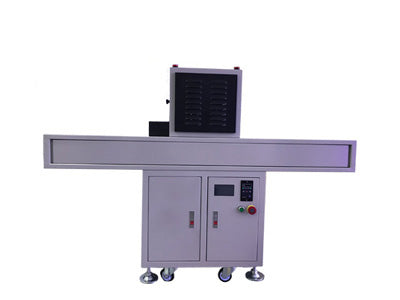

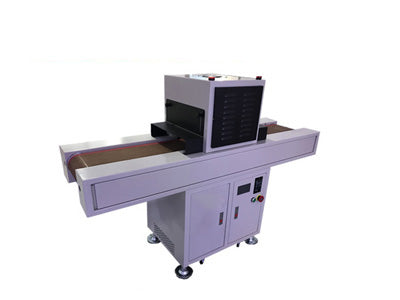

200x50mm UV LED Curing Conveyor with Water Cooling
200x50mm UV LED Curing Conveyor with Water Cooling 200x50mm UV LED Curing Conveyor with Water Cooling 200x50mm UV LED Curing Conveyor with Water Cooling 200x50mm UV LED Curing Conveyor with Water Cooling 200x50mm UV LED Curing Conveyor with Water Cooling

200x50mm UV LED Curing Conveyor with Water Cooling
Free Gift

SKU:

UV Bulb Price Match Guarantee
$0.00

The 200x50mm UV LED Curing Conveyor with Water Cooling is a curing machine with integrated water cooling and a conveyor belt designed for semi or fully automatic production lines with a UV LED Array available in 365nm, 385nm, 395nm & 405nm.

Features:

  • The integrated water cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life
  • Photoelectric conversation rate and concentrated energy output make it energy saving
  • UV LED cold light source ensures your material's composition won’t be harmed during curing process
  • Extra durable conveyor belt
  • PLC Control mode makes it user friendly and quick to use
  • Fast and easy to install, user friendly
  • Integrated wheels make it easy to transport and relocate
  • Green friendly, produces no ozone

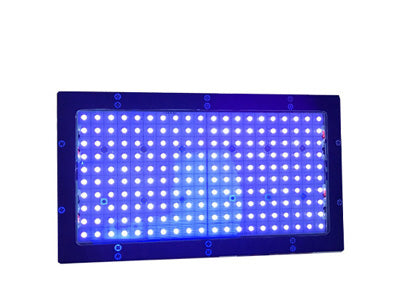

This curing system consists of a control system, a high-intensity UV LED Irradiation head and conveyor belt. Its forced water cooling dissipates heat, making your system last longer giving it a more cost-effective useful life. The effective curing area of this system is 200x50mm.

This UV LED Conveyor supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines.

The array of wavelengths offered ensure you find the ideal device for the UV Material at hand, this system takes no time to start up and is ensured to cure your products without heating up, protecting the composition of the materials at hand to get better results more efficiently.

With adjustable power designed to save up to a ratio of ≥1:6, this device produces no ozone, no deep UV irradiation and no mercury, making it a safer and more environmentally friendly light source.

Technical Specifications:

Available Wavelengths: 365nm, 385nm, 395nm, 405nm

395/405*:

  • Electric power: 1320W
  • Optic power: 12000mW/cm²
  • Curing area: 200X50mm
  • Cooling method: water cooling
  • Dimension: L1500mm * W470mm * H1076mm
  • Recommended height of irradiation: 10mm

    *Technical Specifications available at the moment apply to the specified wavelengths.

      We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
