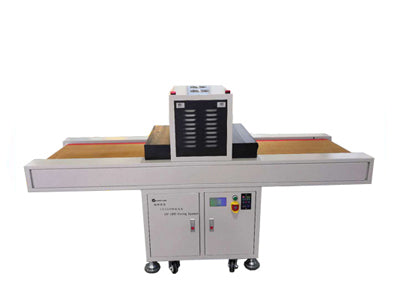

300X30mm UV LED Curing Conveyor 20W/cm2 with Water Cooling
300X30mm UV LED Curing Conveyor 20W/cm2 with Water Cooling 300X30mm UV LED Curing Conveyor 20W/cm2 with Water Cooling 300X30mm UV LED Curing Conveyor 20W/cm2 with Water Cooling 300X30mm UV LED Curing Conveyor 20W/cm2 with Water Cooling 300X30mm UV LED Curing Conveyor 20W/cm2 with Water Cooling

300X30mm UV LED Curing Conveyor 20W/cm2 with Water Cooling
Free Gift

SKU:

UV Bulb Price Match Guarantee
$18,500.00

The 300X30mm UV LED Curing Conveyor 20W/cm2 is a curing machine with an integrated water cooling system and a conveyor belt designed for semi or fully automatic production lines with a UV LED Array of 395nm.

Features:

  • The integrated water cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life
  • Photoelectric conversation rate and concentrated energy output make it energy saving
  • UV LED cold light source ensures your material's composition won’t be harmed during curing process
  • Extra durable conveyor belt
  • PLC Control mode makes it user friendly and quick to use
  • Integrated wheels make it easy to transport and relocate
  • Green friendly produces no ozone

This curing system consists of a control system, a high-intensity UV LED Irradiation head and a conveyor belt. Its forced water cooling dissipates heat, making your system last longer giving it a more cost-effective and useful life. The effective curing area of this system is 300X30mm.

This UV LED Conveyor supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines.

This system takes no time to start up and is ensured to cure your products without heating up, protecting the composition of the materials at hand to get better results more efficiently.

Technical Specifications:

  • Wavelength: 395nm
  • Electric power: 1548W
  • Optic power: 20W/cm2
  • Curing area: 300X30mm
  • Cooling method: water-cooling
  • Dimension: L2000mm*W670mm*H1126mm
  • Entrance and Exit: 10" Wide and 4" of Clearance

    We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
