The 300x200mm UV LED Curing Conveyor System is a High-Intensity Curing System available in an array of LED wavelengths that consist of 365nm, 385nm, 395nm & 405nm. Designed to effectively cure most UV Curable materials while protecting their composition thanks to its cool light system.
- LED array ensures you find the ideal wavelength for the material at hand
- No preheating time needed
- Extra durable chain belt adjusts to the size of the product being cured
- The integrated air cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life
- UV LED cold light source ensures your material's composition won’t be harmed during curing process
- Control Panel displays real-time information such as temperature and allows the user to adjust light intensity and more via touch operation
- User friendly and quick to use

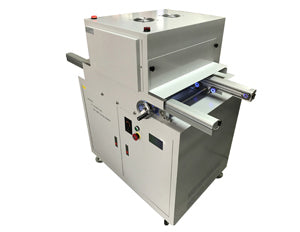

This UV conformal coating curing design consists of a control system, High-Intensity UV LED Irradiation head and a chain conveyor belt. The UV LED Irradiation Head comes in a variety of wavelengths. The incorporated forced air-cooling dissipates heat, making your system last longer giving it a more cost-effective useful life. The effective curing area of this system is 300x200mm.

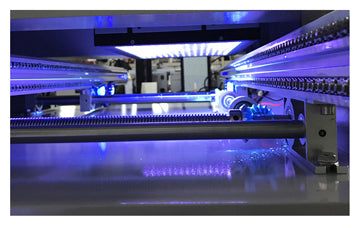

This UV LED Conveyor supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines. And its two stainless steel chain belt design allows the user to manually adjust the size of the product fixture.
Available Wavelengths: 365nm, 385nm, 395nm, 405nm
- Electric power: 1110W
- Optic power: 800MW/CM2
- Curing area: 300x200mm
- Cooling method: air cooling
- Dimension: L334mm*W224mm*H84mm
- Input Voltage: 220VAC 50Hz
- Conveyor Speed: 100-400mm (Adjustable)
- Irradiation Distance: 10-100mm (Adjustable)
*Technical Specifications available at the moment apply to the specified wavelengths.
We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at firstname.lastname@example.org or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
