304 Stainless Steel 200x300mm UV LED Curing Conveyor with Air Cooling
304 Stainless Steel 200x300mm UV LED Curing Conveyor with Air Cooling 304 Stainless Steel 200x300mm UV LED Curing Conveyor with Air Cooling 304 Stainless Steel 200x300mm UV LED Curing Conveyor with Air Cooling 304 Stainless Steel 200x300mm UV LED Curing Conveyor with Air Cooling 304 Stainless Steel 200x300mm UV LED Curing Conveyor with Air Cooling

304 Stainless Steel 200x300mm UV LED Curing Conveyor with Air Cooling
Free Gift

SKU:

UV Bulb Price Match Guarantee
$0.00

The 304 Stainless Steel 200x300mm UV LED Curing Conveyor with Air Cooling is a curing machine with integrated air cooling and a teflon conveyor belt designed for semi or fully automatic production lines with a UV LED Array available in 365nm, 385nm, 395nm & 405nm.

Features:

  • 304 Stainless Steel makes the conveyor sturdier and longer-lasting, providing maximum efficiency and quality
  • Conveyor hood can be opened for easy access in case of need
  • The integrated air cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life
  • Photoelectric conversation rate and concentrated energy output make it energy saving
  • UV LED cold light source ensures your material's composition won’t be harmed during curing process
  • Extra durable conveyor belt
  • PLC Control mode makes it user friendly and quick to use
  • Fast and easy to install, user friendly
  • Integrated wheels make it easy to transport and relocate
  • Green friendly, produces no ozone

This curing system consists of a control system, a high-intensity UV LED Irradiation head, Teflon conveyor belt and an easy-to-access hood that allows you to open and close it in case of need. Its forced air cooling dissipates heat, making your system last longer giving it a more cost-effective useful life. The effective curing area of this system is 200x300mm.

This UV LED Conveyor supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines. Materials like Teflon and 304 Stainless Steel make the conveyor longer lasting and high quality, providing a system more money efficient.

The array of wavelengths offered ensure you find the ideal device for the UV Material at hand, this system takes no time to start up and is ensured to cure your products without heating up, protecting the composition of the materials at hand to get better results more efficiently.

With adjustable power designed to save up to a ratio of ≥1:6, this device produces no ozone, no deep UV irradiation and no mercury, making it a safer and more environmentally friendly light source.

Technical Specifications:

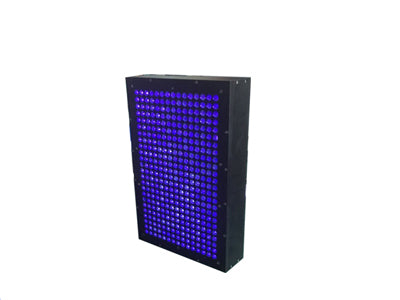

UV LED Irradiation Head

Available Wavelengths: 365nm, 385nm, 395nm, 405nm

365nm*:

  • Optic power: 13W/cm²
  • Curing area: 200x300mm
  • Cooling method: Air Cooling
  • Dimension: L334 * W224 * H61mm
  • Recommended height of irradiation: 5-100mm
  • Conveyor Material: Stainless Steel
  • Conveyor Belt Material: Teflon

Control System

  • Speed of conveyor: 0-10m/min adjustable
  • Whole machine size: L1500 * W581 * H1640mm
  • Intensity adjustable from 0-100%
  • Infrared sensor control
  • Panel display, touch operation, real-time
  • Monitoring of head of the working state
  • Temperature monitoring

    *Technical Specifications available at the moment apply to the specified wavelengths.

      We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
