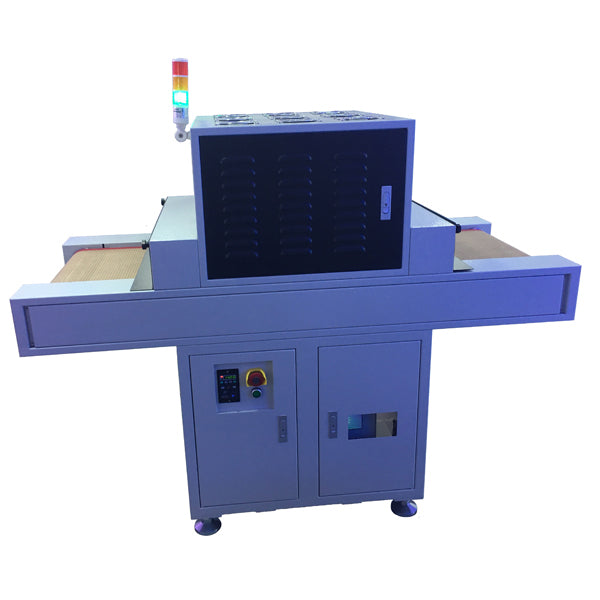

360X250mm UV LED Curing Conveyor with forced air cooling
360X250mm UV LED Curing Conveyor with forced air cooling 360X250mm UV LED Curing Conveyor with forced air cooling 360X250mm UV LED Curing Conveyor with forced air cooling 360X250mm UV LED Curing Conveyor with forced air cooling 360X250mm UV LED Curing Conveyor with forced air cooling

360X250mm UV LED Curing Conveyor with forced air cooling
Free Gift

SKU:

UV Bulb Price Match Guarantee
$0.00

The 360X250mm UV LED Curing Conveyor System is a High-Intensity Curing System available in an array of LED wavelengths that consist of 365nm, 385nm, 395nm & 405nm. Designed to effectively cure most UV Curable materials while protecting their composition thanks to its cool light system.

Features:

  • LED array ensures you find the ideal wavelength for the material at hand
  • No preheating time needed
  • The integrated air cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life
  • UV LED cold light source ensures your material's composition won’t be harmed during curing process
  • Extra durable conveyor belt speed is completely adjustable
  • User friendly and quick to use
  • Produces no ozone

This UV conformal coating curing design consists of a control system, High-Intensity UV LED Irradiation head and a conveyor belt. The UV LED Irradiation Head comes in a variety of wavelengths. The incorporated forced air-cooling dissipates heat, making your system last longer giving it a more cost-effective useful life. The effective curing area of this system is 360X250mm.

This UV LED Conveyor supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines.

Technical Specifications:

Available Wavelengths: 365nm, 385nm, 395nm, 405nm

    365nm*:

    • Electric power: 4914W
    • Optic power: 3200mW/cm²
    • Curing area: 360X250mm
    • Cooling method: air cooling
    • Dimension: L1500mm*W669mm*H1200mm

        *Technical Specifications available at the moment apply to the specified wavelengths.

            We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
