3M Aqua-Pure 56058-41 Replacement UVC Light Bulb
3M Aqua-Pure 56058-41 Replacement UVC Light Bulb 3M Aqua-Pure 56058-41 Replacement UVC Light Bulb 3M Aqua-Pure 56058-41 Replacement UVC Light Bulb 3M Aqua-Pure 56058-41 Replacement UVC Light Bulb 3M Aqua-Pure 56058-41 Replacement UVC Light Bulb

3M Aqua-Pure 56058-41 Replacement UVC Light Bulb
Free Gift

$63.00

4 Pin Stepped on a Single End - 40 Watt Germicidal UVC Bulb

The 3M Aqua-Pure 56058-41 Replacement UVC Light Bulb is a compatible germicidal sterilizer that works for an ultraviolet purification system, which needs UVC intensity. This UVC bulb has a stepped pin configuration on one end of the lamp and is best suited for use with the following germicidal UVC system models:

  • Aqua-Pure APUV24
  • Aqua-Pure APUV65

The quality of drinking water has an immense effect on our well-being and germicidal light is proven to destroy viruses, bacteria, protozoa, molds and other harmful pathogens. The 40 Watt germicidal light bulb from CureUV.com features a wavelength with lethal effectiveness of up to 253.7nm that helps in disrupting the DNA of harmful microorganisms and renders them harmless. Measuring at 33.19 inches in length, the UVC lamp has a long lasting life rate of 10,000 hours. You get a 12 month worry free water sanitizing operation after which the light may still be visible but the germ destroying ability of the 3M Aqua-Pure 56058-41 Replacement UVC Light Bulb may have reduced.

Common Applications:
  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water
Technical Specifications:
  • Total Length: 33.19 inches (843mm)
  • Arc Length: 29.92 inches (760mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 420mA
  • Lamp Voltage: 120V
  • Lamp Wattage: 40 Watts
  • Output UVC Watts: 16 Watts
  • Output uW/cm^2 @ 1m: 150
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone

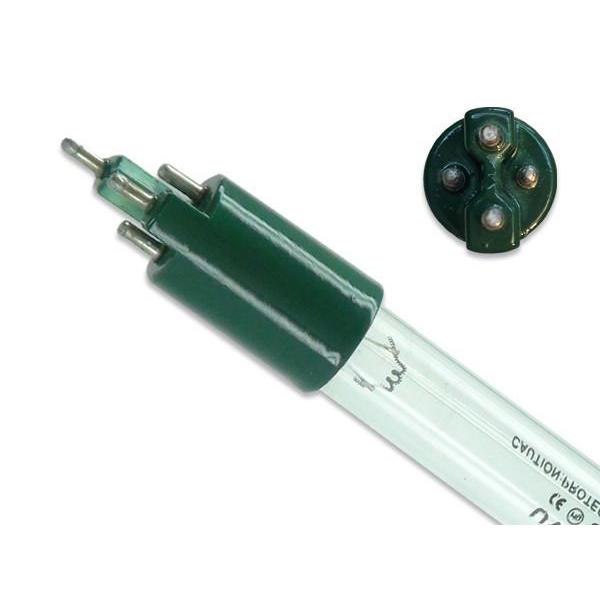

  • Base Style: 4 pin stepped on a single end
  • Base Material: Green Ceramic
  • Rated Life: Up to 10,000 hours
Spectral Output of Germicidal UVC Light Bulbs
Spectral Output of Germicidal UVC Light Bulbs (PDF)

UVC Light Disinfection Dosage Chart (PDF)

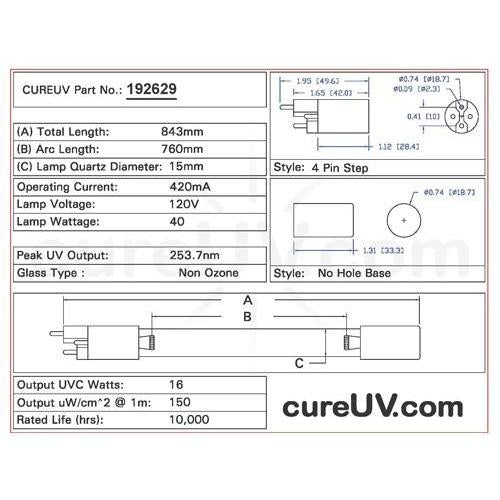

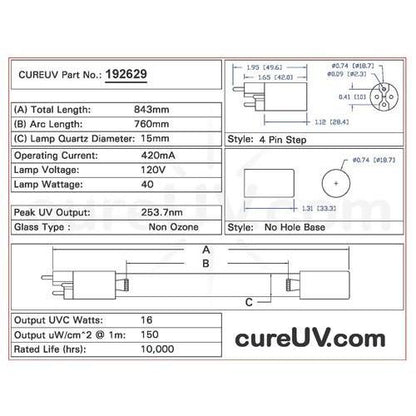

Drawing of 3M Aqua-Pure 56058-41 UVC Bulb - item # 192629
Drawing of Replacement UVC Bulb Item # 192629 (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell 3M Aqua-Pure brand UVC bulbs. All 3M Aqua-Pure brand names, trademarks, and logos are property of 3M.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
