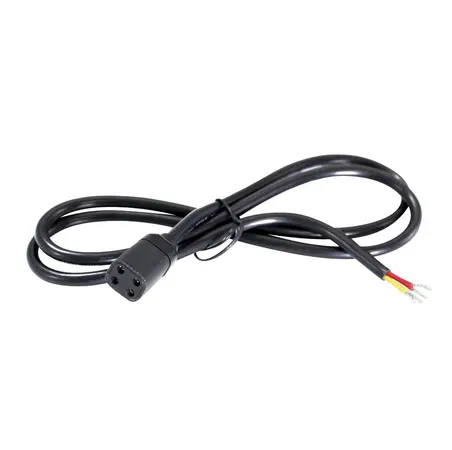

4-Pin Lamp Socket with 1 Meter Lead Wire (18 AWG)

The 4-Pin Lamp Socket with 1 Meter Lead Wire is engineered for reliable electrical connections in UV lamps, germicidal fixtures, and other specialty lighting systems. Designed with precision and durability, it ensures a stable connection and long service life, making it suitable for both new builds and replacement applications.

Pre-assembled with a 1-meter (3.28 ft) 18 AWG lead wire, this socket offers quick installation and mates securely with standard .093" diameter pins. Its stripped jacket and wires allow for straightforward termination in the field.

Features & Benefits

• 4-Pin Socket: Provides secure connection for lamps with a four-pin base.
• Pre-Wired Lead: 1 meter (3.28 ft) of 18 AWG wire for easy setup.
• Durable Build: High-quality construction ensures long-lasting performance.
• Precision Fit: Designed to mate with nominal .093" diameter pins.
• Easy Installation: Pre-stripped jacket (1.56") and wires (.38") for quick wiring.
• Compact Dimensions: Space-saving design ideal for various lamp fixtures.

Specifications

• Length: 1 m (lead wire)
• Socket Width: 0.61"
• Socket Height: 0.74"
• Socket Length: 1.39"
• Pin Distance (Horizontal): 0.25"
• Pin Distance (Vertical): 0.31"
• Pin Compatibility: Mates with nominal 0.093" diameter pins
• Jacket Stripped: 1.56"
• Wires Stripped: 0.38"
• Wire Gauge: 18 AWG

Additional Information

• Applications: UV lamps, germicidal fixtures, OEM assemblies, and replacement parts.

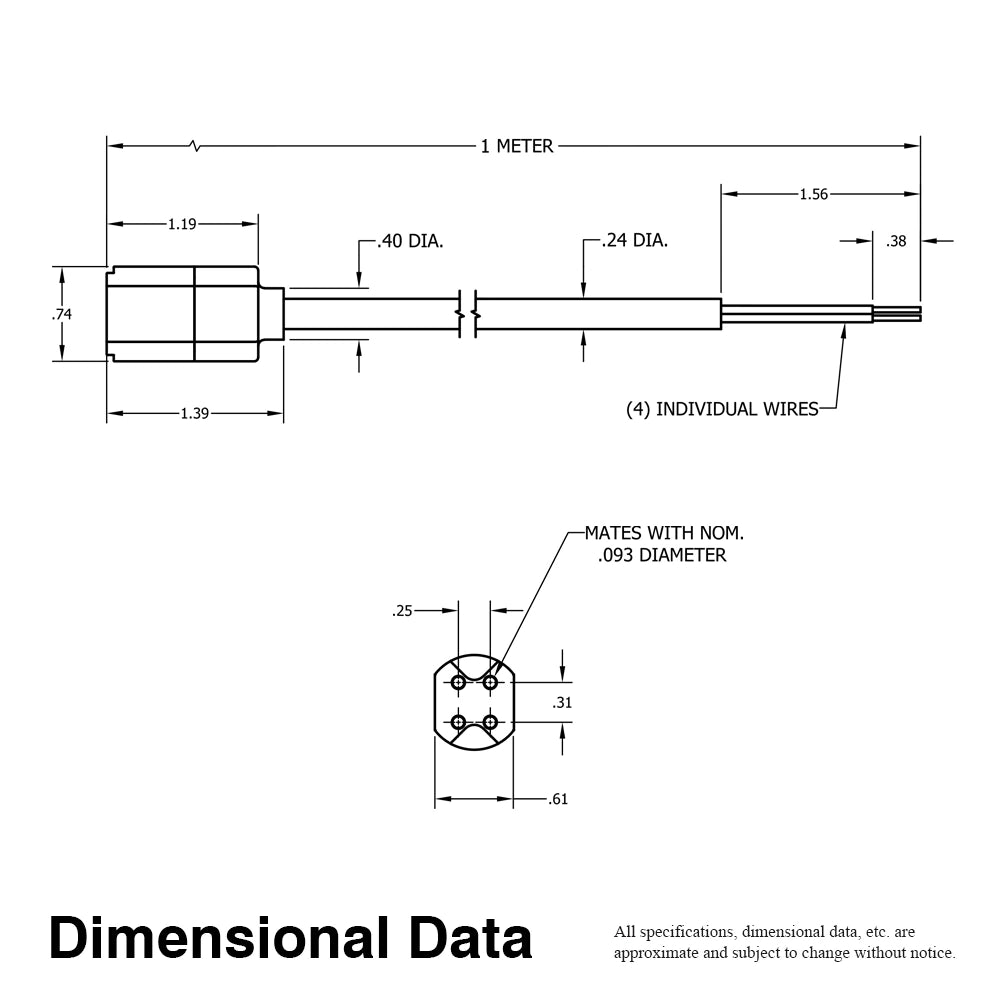

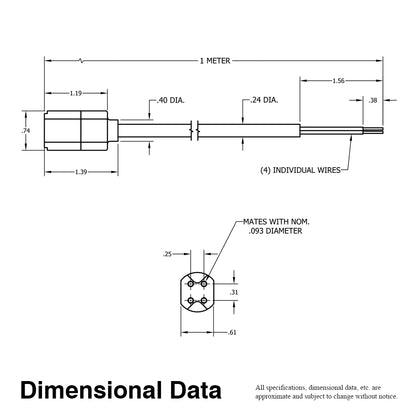

• Reference: See dimensional data drawing for complete measurements.

If you have any questions about this Lamp Socket, please do not hesitate to reach out at sales@cureuv.com or by phone at 1(800) 977-7292.
