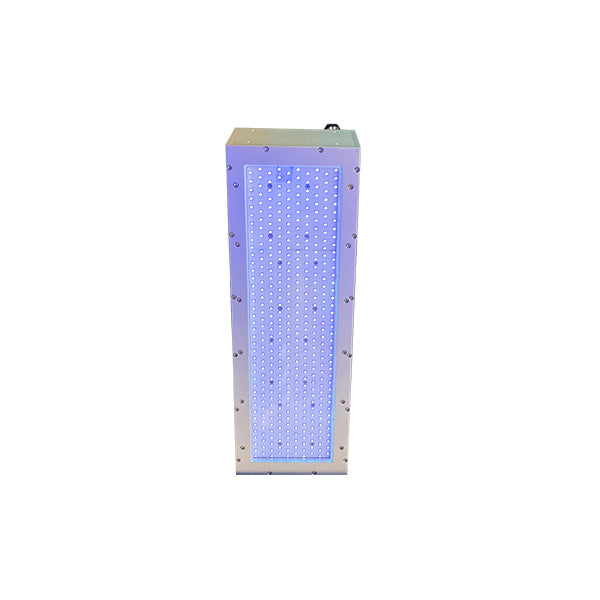

400x100mm UV LED Array with Air Cooling for UV LED Conveyors

The 400x100mm UV LED Array with Forced Air Cooling is a system designed to fit UV LED Conveyors, consisting of a controller and UV LED Irradiation head, this device is available in 365nm, 385nm, 395nm & 405nm.

This UV LED Array comes with integrated forced air cooling and is suitable for conveyors with an LED Array that has a 400x100mm effective curing area.

Features;

• The integrated forced air cooling system ensures your array works as efficiently as possible, protecting the LED system and extending its useful life
• UV LED cold light source ensures your material's composition won’t be harmed during curing process
• No preheating time needed, reach maximum light intensity instantly
• Power efficient and easy to install, use and control
• Eco-friendly, produces no ozone or mercury
• Lampshade protection makes it safer for workers
• Supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines

Technical Specifications

Available Wavelengths: 365nm, 385nm, 395nm, 405nm

365nm*:

• Optic Power: 1400mW/cm²
• Effective Curing Area: 400x100mm
• Electric Power: 1200W
• Cooling Method: Forced Air Cooling

*Technical Specifications available at the moment apply to the specified wavelengths.

Technical Drawing:

We can customize these systems to fit your needs exactly. We would love to help you with your UV LED curing Array. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
