Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 6 Inch Arc Length - 10.60 Inch Total Length (end to end)
The Aetek Part # 0700928 UV Curing Lamp Bulb is a 100% compatible replacement UV bulb that has a total length of 10.60 inches. Filled with mercury, the curing lamp bulb has a 6 inch arc length and an output power of 400 WPI. The lamp bulb is compatible to the following system models:
- AM792X
- PM1495
- 0622CHD
- 07-00928
- H06F14F1
- 707664
The UV curing lamp bulbs are the components necessary in the drying system. It also does not release volatile organic compounds in the air. The light bulbs generate a specific wavelength that assists in curing coating and inks. The quartz plate in lamp works as a filler between lamp and the system. This plate prevents dirt, grit and contaminants from building up on the lamp.
CureUV is your one-stop-shop for your UV replacement lamps, quartz plate, dichroic reflectors, quartz hot mirrors and more that is necessary for your inkjet printers. These systems are important for the digital printing industry in areas such as graphics, signs and display graphics, apparel, textile, labeling, folding carton, screen printing and more.
Technical Specifications:
- Fill: Mercury
- Quartz: Standard
- Arc Length: 6 Inches
- Overall Length: 10.60 Inches
- Watts Per Inch: 400 WPI
Spectral Output of a Mercury UV Lamp (PDF)

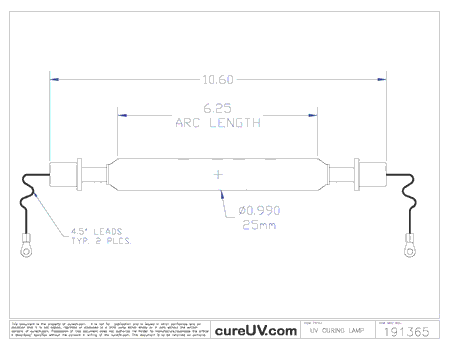

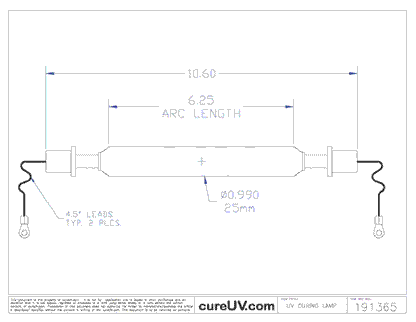

Aetek compatible UV lamp - OEM part number 0700928 - Drawing (PDF)
*All lamps listed are compatible brand UV products. We do not sell Aetek brand lamps. All Aetek brand names, trademarks and logos are property of Aetek.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
