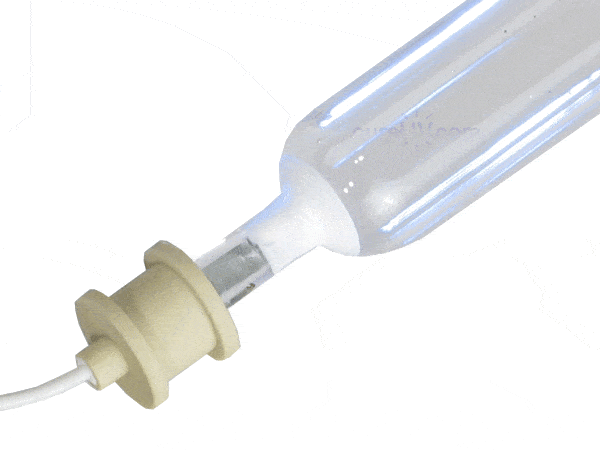

Aetek Part # 0701148 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 5 Inch Arc Length

The Aetek Part # 0701148 UV Curing Lamp Bulb is a 100% guaranteed compatible replacement UV bulb that has an arc length of 5 inches. The lamp bulb comes with a 400 WPI and a total length of 9.13 inches. The curing lamp bulb is compatible to the Aetek UV systems. The lamp bulb is compatible to the following UV systems:

• 0701148
• H05C4F1

The replacement bulb works to cure and dry coatings in signs and graphics. The UV printer bulb is manufactured in the USA and has a predictable lifespan. CureUV ensures that you can find UV lamps for printers in different arc length and spectral fills. In heat curing there is a release of volatile organic compounds that is absent in curing using UV rays. This makes UV curing an eco-friendly option. The curing lamp consists of a quartz plate and keeps the lamp away from debris. It works as a filter between the curing system and the lamp. Light curing enables the ink to harden and dry instantly.

Technical Specifications:

• Arc Length: 5 inches
• Total Length: 9.13 inches
• Watts Per Inch: 400 WPI

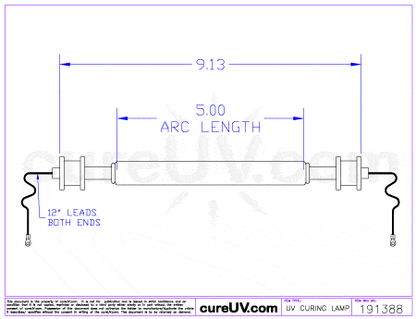

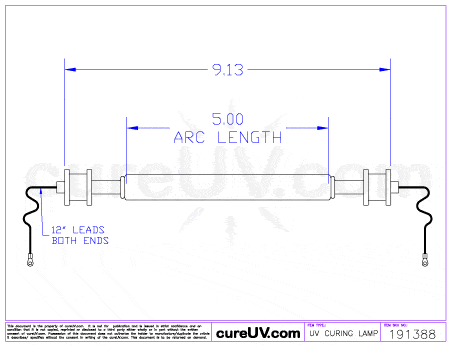

Aetek compatible UV lamp - OEM part number 0701148 - Drawing (PDF)

*All lamps listed are compatible brand UV products. We do not sell Aetek brand lamps. All Aetek brand names, trademarks and logos are property of Aetek.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
