UV Curing Lamp - Aetek Part # 0701198 UV Curing Lamp Bulb
UV Curing Lamp - Aetek Part # 0701198 UV Curing Lamp Bulb UV Curing Lamp - Aetek Part # 0701198 UV Curing Lamp Bulb UV Curing Lamp - Aetek Part # 0701198 UV Curing Lamp Bulb

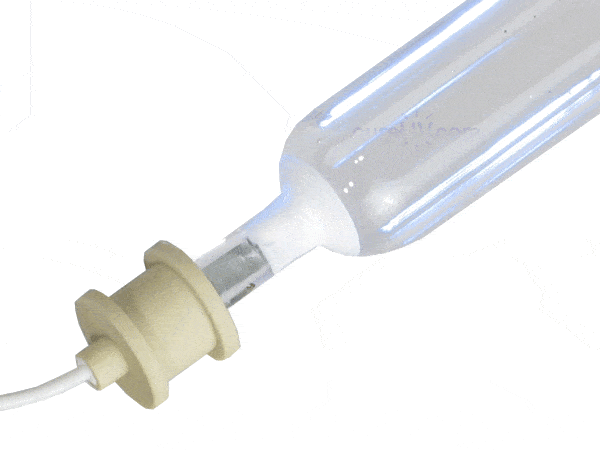

Aetek Part # 0701198 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$199.99

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 15 Inch Arc Length - 19.19 Inch Total Length (end to end)

The Aetek 07-01198 Replacement Lamp is a high quality curing lamp that comes with higher UV output and longer service life. The replacement lamp has matched HG spectral output that guarantees shorter curing times and better curing results. This high performance lamp is 487 mm long and has a factory warranty of 600 hours.

Used extensively in the printing industry to cure inks and coatings, the UV lamps resist smudges. It is environmental friendly as there is no process of solvent evaporation as conventional drying methods need. The result is higher printing quality, greater productivity and lower production costs.

Technical Specifications:

  • Spectrum: HG
  • Total Length: 487 mm
  • Arc Length: 381 mm

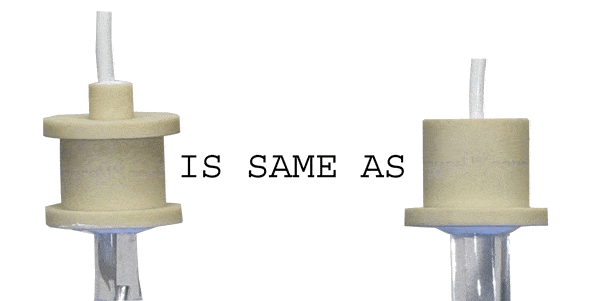

  • End Cap: Ceramic C3
  • Terminal: Ring
  • Lifetime: 600 hours

    Spectral Output of a Mercury UV Lamp

    Spectral Output of a Mercury UV Lamp (PDF)

    Aetek compatible UV lamp - OEM part number 0701198 - Drawing (PDF)

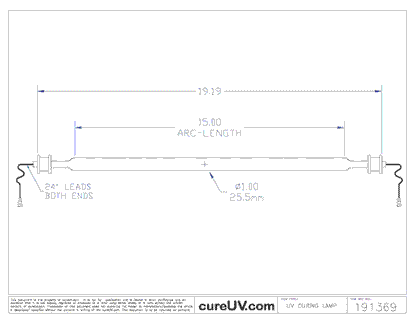

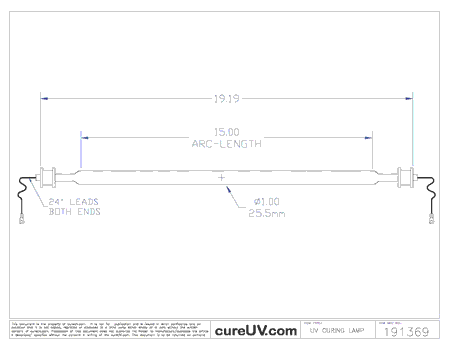

    Aetek Compatible UV Curing Lamp - OEM Part Number 0701198 drawing

    *All lamps listed are compatible brand UV products. We do not sell Aetek brand lamps. All Aetek brand names, trademarks and logos are property of Aetek.

    Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
