UV Curing Lamp - Aetek Part # 0701270 UV Curing Lamp Bulb
UV Curing Lamp - Aetek Part # 0701270 UV Curing Lamp Bulb UV Curing Lamp - Aetek Part # 0701270 UV Curing Lamp Bulb UV Curing Lamp - Aetek Part # 0701270 UV Curing Lamp Bulb

Aetek Part # 0701270 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$274.99

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Metal-Iron Wavelength - 12 Inch Arc Length

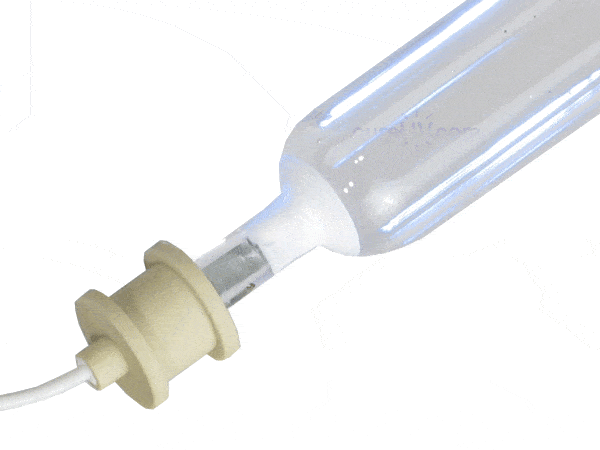

The Aetek 07-01270 Replacement Lamp is a high quality curing lamp that has high UV output and long service life. The matched HG spectral output ensures short curing times and better curing results. This high performance lamp is 406 mm long and has a factory warranty of 600 hours.

Manufactured in the USA, the UV printer lamp bulb is a quality solution that has a predictable lifespan. The replacement lamp helps in drying coatings of inks in graphics and signs. CureUV provides UV lamp for printers in different arc length and spectral fills. The quartz plate in lamp works as a filler between lamp and the system. This plate prevents dirt, grit and contaminants from building up on the lamp.

Technical Specifications:

  • Spectrum: HG
  • Length: 406 mm
  • Arc Length: 305 mm

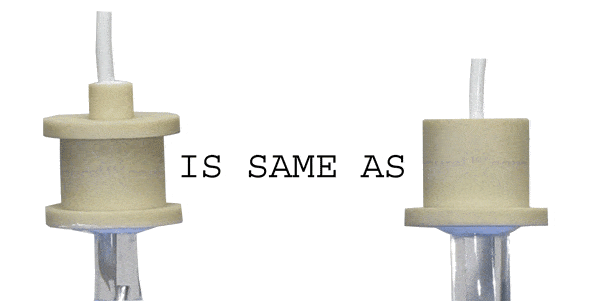

  • End Cap: Ceramic C3
  • Terminal: Ring
  • Lifetime: 600 hours

 UV spectral output of an iron lamp

UV Spectral Output of an Iron Lamp (PDF)

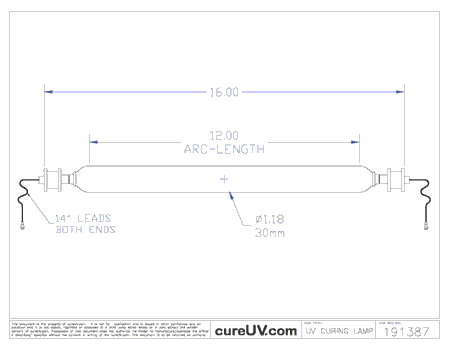

Aetek Part # 0701270 UV Curing Lamp Bulb - Drawing (PDF)

Drawing of Aetek Part # 0701270 UV Curing Lamp Bulb

*All lamps listed are compatible brand UV products. We do not sell Aetek brand lamps. All Aetek brand names, trademarks and logos are property of Aetek.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
