Aetek Part # 0701456 UV Curing Lamp Bulb
Aetek Part # 0701456 UV Curing Lamp Bulb Aetek Part # 0701456 UV Curing Lamp Bulb Aetek Part # 0701456 UV Curing Lamp Bulb

Aetek Part # 0701456 UV Curing Lamp Bulb
Free Gift

Brand: Aetek

SKU: 191356

UV Bulb Price Match Guarantee
$89.99

Overstock Item 56% Off - Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 18 Inch Arc Length - 22.13 Inch Total Length (end to end)

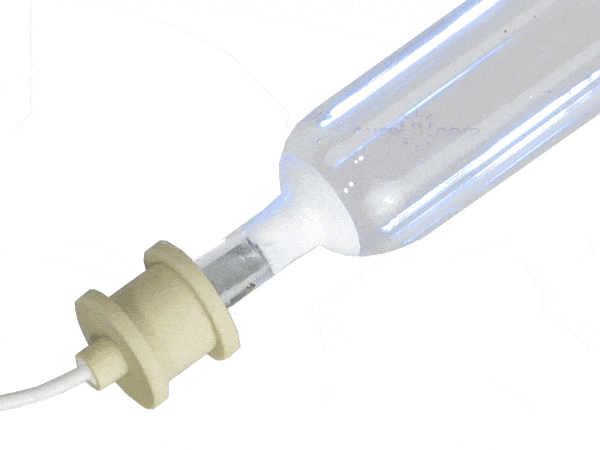

The Aetek 07-01456 Replacement Lamp is a high quality curing lamp that has high UV output and longer service life. The replacement lamp has matched HG spectral output that guarantees shorter curing times and better curing results. This high performance lamp is 562 mm long and has a factory warranty of 600 hours.

The UV lamp works to dry coatings and inks in signs and graphics. It contains a quartz glass plate that helps in protecting the lamp from contaminants and works as filler between the lamp and the curing system. The UV curing bulb is used in the printing industry mainly to cure inks and coatings. UV curing lamps are important as it resists smudges and also makes it an environment friendly option.

Technical Specifications:

  • Spectrum: HG
  • Total Length: 562 mm
  • Arc Length: 457 mm
  • End Cap: Ceramic C3
  • Terminal: Ring
  • Lifetime: 600 hours

    Spectral Output of a Mercury UV Lamp

    Spectral Output of a Mercury UV Lamp (PDF)

    Aetek compatible UV lamp - OEM part number 0701456 - Drawing (PDF)

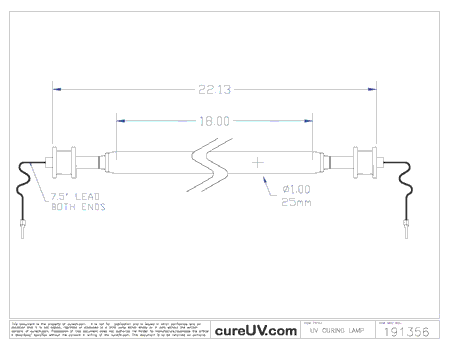

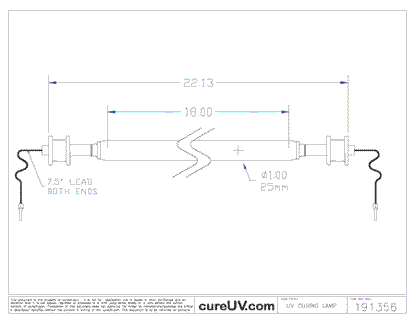

    Aetek Compatible UV Curing Lamp - OEM Part Number 0701456 drawing

    *All lamps listed are compatible brand UV products. We do not sell Aetek brand lamps. All Aetek brand names, trademarks and logos are property of Aetek.

    Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
