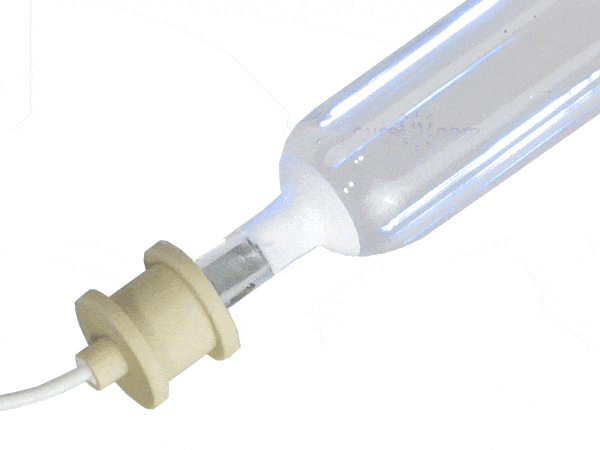

Aetek Part # 0701566 UV Curing Lamp Bulb
Aetek Part # 0701566 UV Curing Lamp Bulb Aetek Part # 0701566 UV Curing Lamp Bulb Aetek Part # 0701566 UV Curing Lamp Bulb

Aetek Part # 0701566 UV Curing Lamp Bulb
Free Gift

Brand: Aetek

SKU: 191241

UV Bulb Price Match Guarantee
$199.99

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 9 Inch Arc Length - 13.25 Inch Total Length (end to end)

The Aetek Part # 0701566 UV Curing Lamp Bulb is a guaranteed replacement UV bulb that exceeds OEM standards of bulb performance. The lamp has a total length of 13.25 inches and an arc length of 9 inches. The UV curing lamp bulb is filled with mercury and is compatible to the following part numbers:

  • 0701566
  • H09C3F3

The UV printer helps in drying ink for substrates and flexible applications in the graphics industry. Our replacement lamps are manufactured using the highest quality. This printer lamp bulb from CureUV.com is eco-friendly, economical and cost-effective. It provides good and worry-free printing results at all times.

The UV curing lamps are necessary for the drying system and are a better option to infra red drying as it resists smudges. UV Curing is an environmentally friendly process and also reduces the use of energy.

Technical Specifications:

  • Output Power: 300 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 9 Inches
  • Overall Length: 13.25 Inches

Spectral Output of a Mercury UV Lamp (PDF)

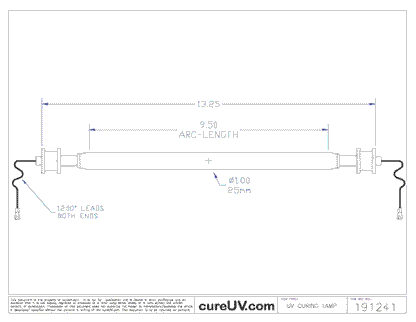

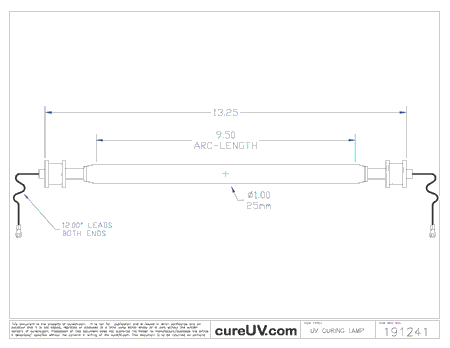

Aetek compatible UV lamp - OEM part number 0701566 - Drawing (PDF)

*All lamps listed are compatible brand UV products. We do not sell Aetek brand lamps. All Aetek brand names, trademarks and logos are property of Aetek.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
