UV Curing Lamp - Aetek Part # 0701134 UV Curing Lamp And Reflector Kit
UV Curing Lamp - Aetek Part # 0701134 UV Curing Lamp And Reflector Kit UV Curing Lamp - Aetek Part # 0701134 UV Curing Lamp And Reflector Kit UV Curing Lamp - Aetek Part # 0701134 UV Curing Lamp And Reflector Kit UV Curing Lamp - Aetek Part # 0701134 UV Curing Lamp And Reflector Kit UV Curing Lamp - Aetek Part # 0701134 UV Curing Lamp And Reflector Kit UV Curing Lamp - Aetek Part # 0701134 UV Curing Lamp And Reflector Kit

Aetek Part # 0701134 UV Curing Lamp and Reflector Kit
Free Gift

SKU: UV Bulb Price Match Guarantee
$259.99

Guaranteed 100% Ultraviolet (UV) Lamp and Reflector Kit compatible for Aetek 0701134 UV lamp/bulb

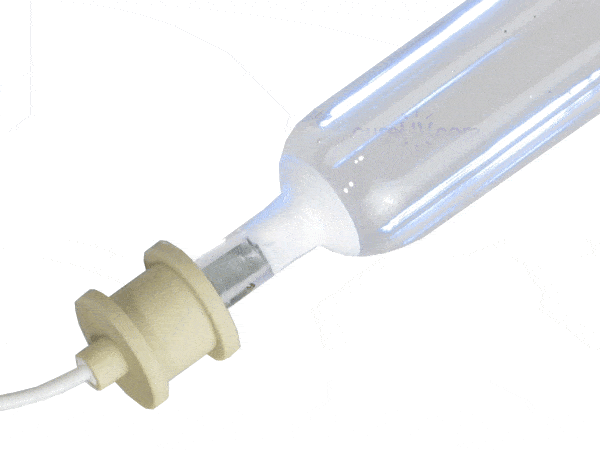

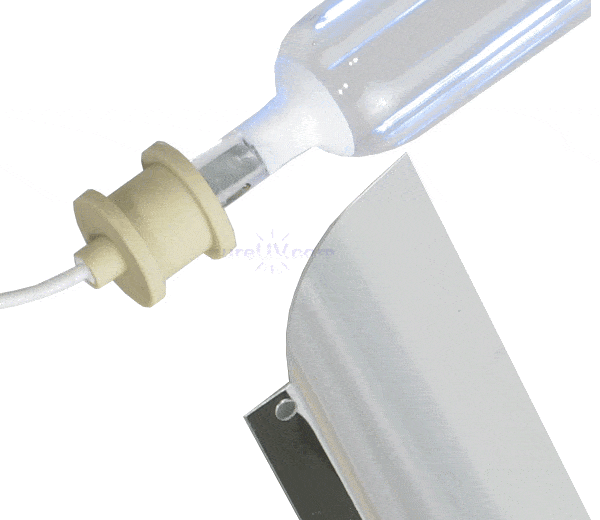

Our Aetek Part # 0701134 UV Curing Lamp And Reflector Kit is a guaranteed 100% UV lamp and reflector kit that is compatible for the Aetek 0701134 UV lamp/bulb. The lamp bulb has a total output of 325 WPI and an overall length of 16.63 inches. The lamp has an arc length of 12 inches and exceeds OEM standards of UV bulb performance.

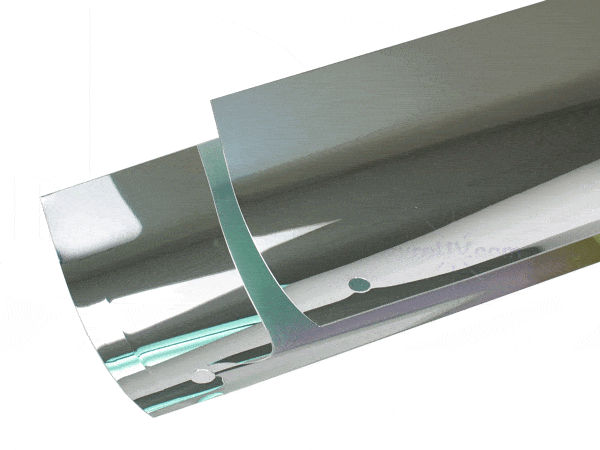

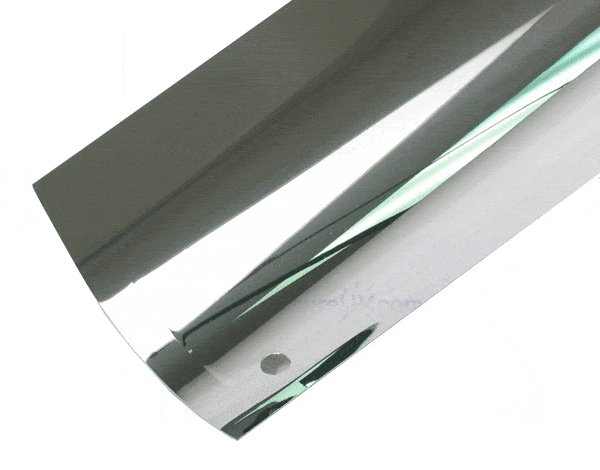

There is an increase in the demand of UV curing bulbs and reflector kits in the printing industry mainly to dry inks and coats. The UV curing lamp bulbs are the components necessary in the drying system. It also does not release volatile organic compounds in the air. The light bulbs generate a specific wavelength that assists in curing coating and inks. The UV reflectors are responsible for over 70% of the lamp’s curing power, which is why we need to change the reflectors too during bulb change-out. This increases the curing consistency and reduces costs of maintaining the system.

CureUV is your one-stop-shop for your UV replacement lamps, quartz plate, dichroic reflectors, quartz hot mirrors and more that is necessary for your inkjet printers. These systems are important for the digital printing industry in areas such as graphics, signs and display graphics, apparel, textile, labeling, folding carton, screen printing and more.

The lamp bulb and reflector kits are compatible with the following system models:

  • 0701134
  • 2025
  • 1222C10
  • H12C3F3

Technical Specifications:

  • Output Power: 325 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 12 Inches
  • Overall Length: 16.63 Inches

Spectral Output of a Mercury UV Lamp

Spectral Output of a Mercury UV Lamp (PDF)

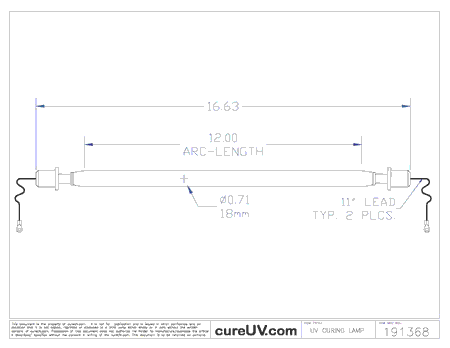

Aetek compatible UV lamp - OEM part number 0701134 - Drawing (PDF)

Aetek Compatible UV Lamp - OEM Part Number 0701134 drawing

*All lamps and reflectors listed are compatible brand UV products. We do not sell Aetek brand lamps or reflectors. All Aetek brand names, trademarks and logos are property of Aetek.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
