Aetek Part # 0701172 UV Curing Lamp and Reflector Kit
Aetek Part # 0701172 UV Curing Lamp and Reflector Kit Aetek Part # 0701172 UV Curing Lamp and Reflector Kit Aetek Part # 0701172 UV Curing Lamp and Reflector Kit Aetek Part # 0701172 UV Curing Lamp and Reflector Kit Aetek Part # 0701172 UV Curing Lamp and Reflector Kit Aetek Part # 0701172 UV Curing Lamp and Reflector Kit Aetek Part # 0701172 UV Curing Lamp and Reflector Kit

Aetek Part # 0701172 UV Curing Lamp and Reflector Kit
Free Gift

Brand: Aetek

SKU: 191848

UV Bulb Price Match Guarantee
$259.99

Guaranteed 100% Ultraviolet (UV) Lamp and Reflector Kit compatible for Aetek 0701172 UV lamp/bulb

The Aetek Part # 0701172 UV Curing Lamp And Reflector Kit exceeds OEM standards of UV bulb performance. The curing lamp and reflector kits are compatible for the following UV models:

  • 0701172
  • 0922C4
  • 2100B
  • H09C3F2

There is an increase in the demand for UV curing bulbs in the print industry, as it is primary for the drying system. When you use a good quality curing lamp you are sure of better results than infra red drying. The UV curing bulb resists smudges and does not release volatile organic compounds in the air that is rampant in heat drying. Using light instead of heat helps in hardening and drying the ink instantly and reduces the risk of environmental pollution. The result of which is greater productivity, lower production costs and high printing quality. The quartz plate in the UV lamp helps in withstanding high temperatures and the mercury filled UV lamps are subject to strict quality control measures to ensure the best. The replacement light bulb helps in curing ink on coated and uncoated materials such as MDF, wood, plastic, composites, and tile.

Over 70% of the lamps curing power is due to UV reflectors, which is why we recommend changing the reflectors during every bulb change-out. This ensures better curing consistency and reduces future maintenance and extends the life of the ultraviolet bulb.

CureUV Lamp and Reflector kits are available for all ultra-violet lamp manufacturers. This kit saves you time and money as it ensures less change outs and gives you maximum production time.

Spectral Output of a Mercury UV Lamp

Spectral Output of a Mercury UV Lamp (PDF)
Aetek 0701172 Compatible UV Curing Lamp - Drawing (PDF)
Aetek 0701172 Compatible UV Reflector - Drawing (PDF)

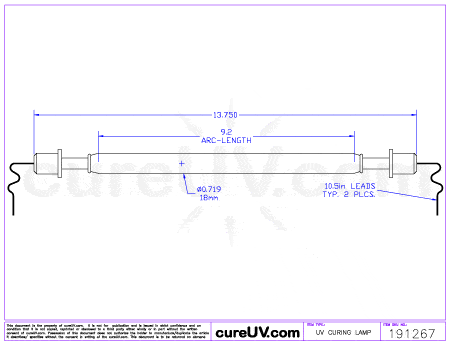

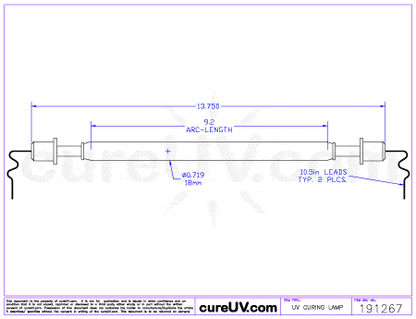

Aetek Compatible UV Lamp - OEM Part Number 0701172 drawing

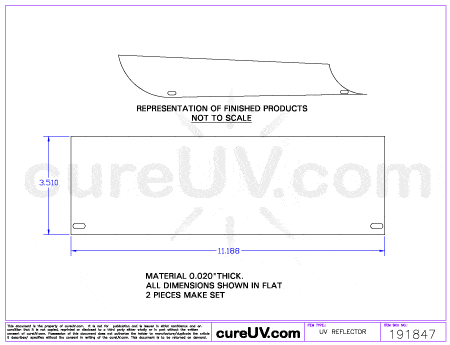

Aetek 0701172 compatible UV reflector drawing

*All lamps and reflectors listed are compatible brand UV products. We do not sell Aetek brand lamps or reflectors. All Aetek brand names, trademarks and logos are property of Aetek.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
