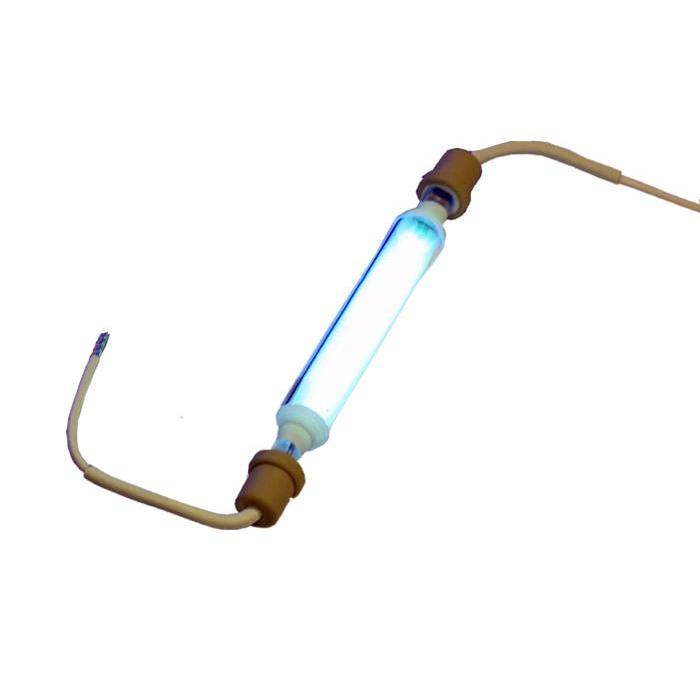

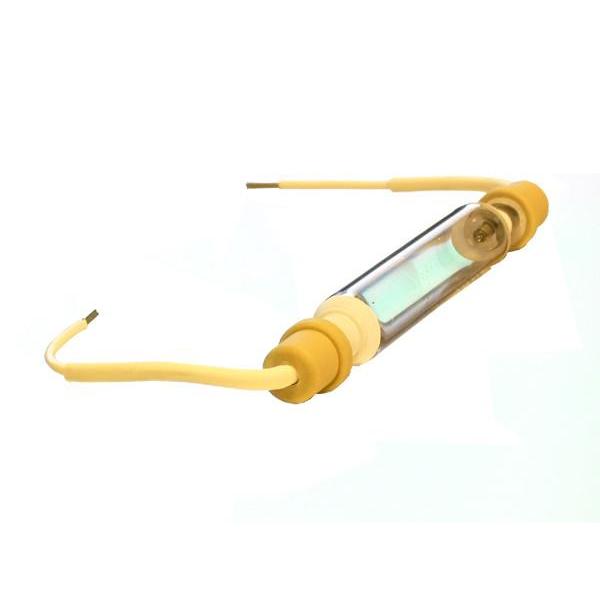

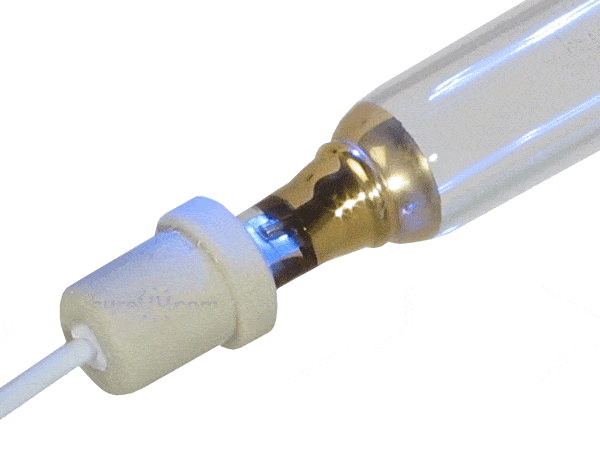

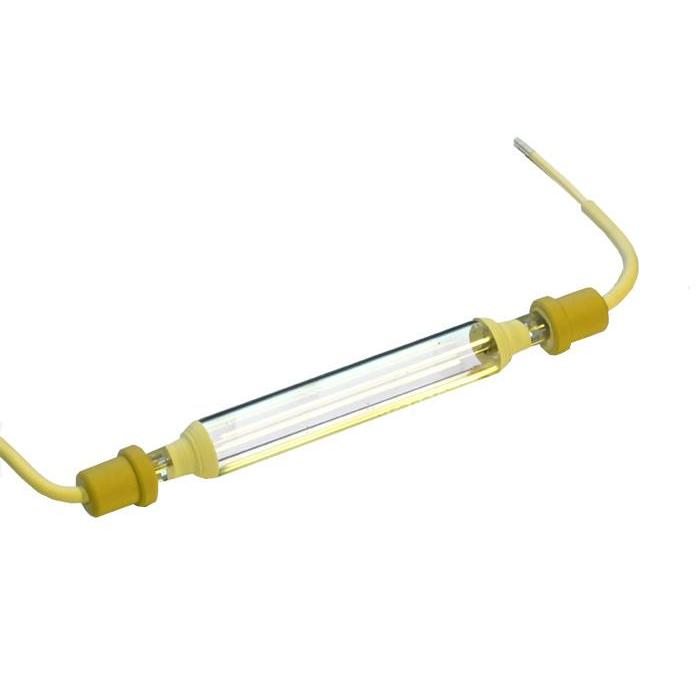

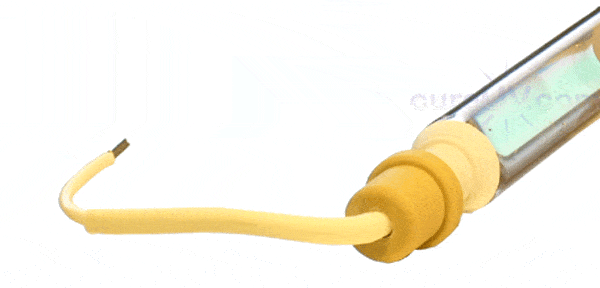

Agfa Anapurna MW V0 140D UV Curing Lamp Bulb
Agfa Anapurna MW V0 140D UV Curing Lamp Bulb Agfa Anapurna MW V0 140D UV Curing Lamp Bulb Agfa Anapurna MW V0 140D UV Curing Lamp Bulb Agfa Anapurna MW V0 140D UV Curing Lamp Bulb Agfa Anapurna MW V0 140D UV Curing Lamp Bulb Agfa Anapurna MW V0 140D UV Curing Lamp Bulb

Agfa Anapurna MW V0 140D UV Curing Lamp Bulb
Free Gift

Brand: Agfa

SKU: 191670

UV Bulb Price Match Guarantee
$279.99

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Iron Wavelength - 6 Inch Arc Length - 8.75 Inch Total Length (end to end)

The Agfa Anapurna MW V0 140d UV Curing Lamp Bulb features an arc length of 6" and a total length of 8.75" and is a guaranteed compatible replacement for the following machine model:

  • Agfa Anapurna MW

It is also a replacement for the following part numbers:

  • 500517
  • V140D
  • Vzero 140D
  • V0140D
  • V0 140D
  • B771924

The iron doped replacement lamp exceeds OEM standards and provides excellent performance. The demand of UV curing is fast replacing traditional methods of print drying. The usage of light instead of heat has various advantages.

Using light enable the ink to harden and dry instantly. It also does not make use of solvents unlike drying methods, where the risk of pollution due to evaporation of solvents is greater. The idea of UV curing instead of heat drying is fast catching up as people have noticed happier results, in terms of better productivity, lower production costs and higher quality printing.

The quartz plate in the curing lamp protects the lamp from debris and works as an effective filter between curing system and lamp. The plate prevents the lamp from damaging due to contaminants, debris and grit. The cost effective lamp is manufactured in the USA and is a quality solution with a predictable lifespan. CureUV provides lamps for printers in different arc lengths and spectral fills.

Technical Specifications:

  • Fill: Iron Metal-Halide
  • Quartz: Standard
  • Arc Length: 6 Inches
  • Overall Length: 8.75 Inches
  • Watts Per Inch: 200 WPI
  • Wattage: 1200W

Ultraviolet (UV) spectral output of an iron doped lamp

Ultraviolet (UV) Spectral Output - Iron Metal-Halide Lamp (PDF)

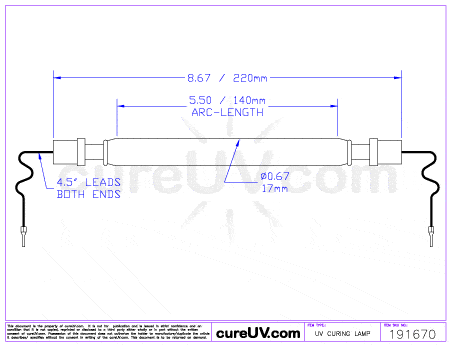

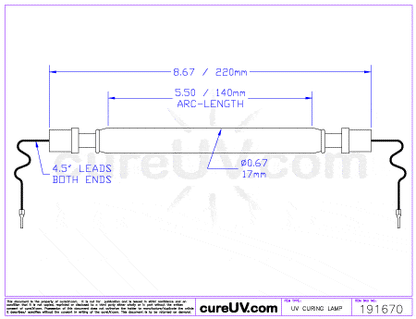

Agfa Anapurna MW UV Lamp - Drawing (PDF)

Agfa Anapurna MW digital UV lamp drawing

*Fe - Lamp contains iron - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All UV lamps listed are compatible brand UV products. We do not sell Agfa brand UV lamps. All Agfa brand names, trademarks and logos are property of Agfa.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
