American Ultraviolet GML015 Replacement UVC Light Bulb
American Ultraviolet GML015 Replacement UVC Light Bulb American Ultraviolet GML015 Replacement UVC Light Bulb American Ultraviolet GML015 Replacement UVC Light Bulb American Ultraviolet GML015 Replacement UVC Light Bulb American Ultraviolet GML015 Replacement UVC Light Bulb

American Ultraviolet GML015 Replacement UVC Light Bulb
Free Gift

$44.99

Single Pin Double Ended - 75 Watt Germicidal Air, Surface & Water Treatment Bulb

Our American Ultraviolet Gml015 Replacement UVC Light Bulb is 75 Watt germicidal water, air and surface treatment bulb that can be used with the following germicidal UVC system model:

  • TTG-64
CureUV’s replacement light bulb is 100% compatible with germicidal OEM air, and water disinfection filter, UV sterilizer and ultraviolet purifiers. Studies have shown that germicidal light bulbs emit ultraviolet rays at short wavelengths. This enables thorough disinfection by the process of destruction of microorganisms. This method alters the genetic composition of the microorganisms and makes them harmless.

Since the light bulbs are intended to destroy microorganisms it is necessary to schedule replacement of the bulbs annually to ensure efficiency of the system. Made in the USA, these high-quality lamps can last for approximately 10,000 working hours after which the UV output reduces though the UV lamp emits bright light. With a total length of 61.22 inches, the replacement UVC light bulb has a peak UV output of 253.7nm that help in reacting with the genetics of microorganisms such as spores, virus, bacteria and other pathogens. Ensure safety at all times when you replace the UVC light bulb with the American Ultraviolet Gml015 Replacement UVC Light Bulb.

Common Applications

  • Air Conditioners
  • Air Purifiers
  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Heating & Cooling Filters
  • HVAC Systems
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Surface Disinfection
  • Well Water

Technical Specifications:

  • Total Length: 61.22 inches (1555mm)
  • Arc Length: 58.66 inches (1490mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 450mA
  • Lamp Voltage: 175V
  • Lamp Wattage: 75 Watts
  • Output UVC Watts: 30 Watts
  • Output uW/cm^2 @ 1m: 260
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: Single pin double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

This product is a substitute item for old CureUV product item #: 191667

                             Spectral Output of Germicidal UVC Light Bulbs

This UVC bulb is a compatible replacement for use with germicidal UV-C system models: TTG-64

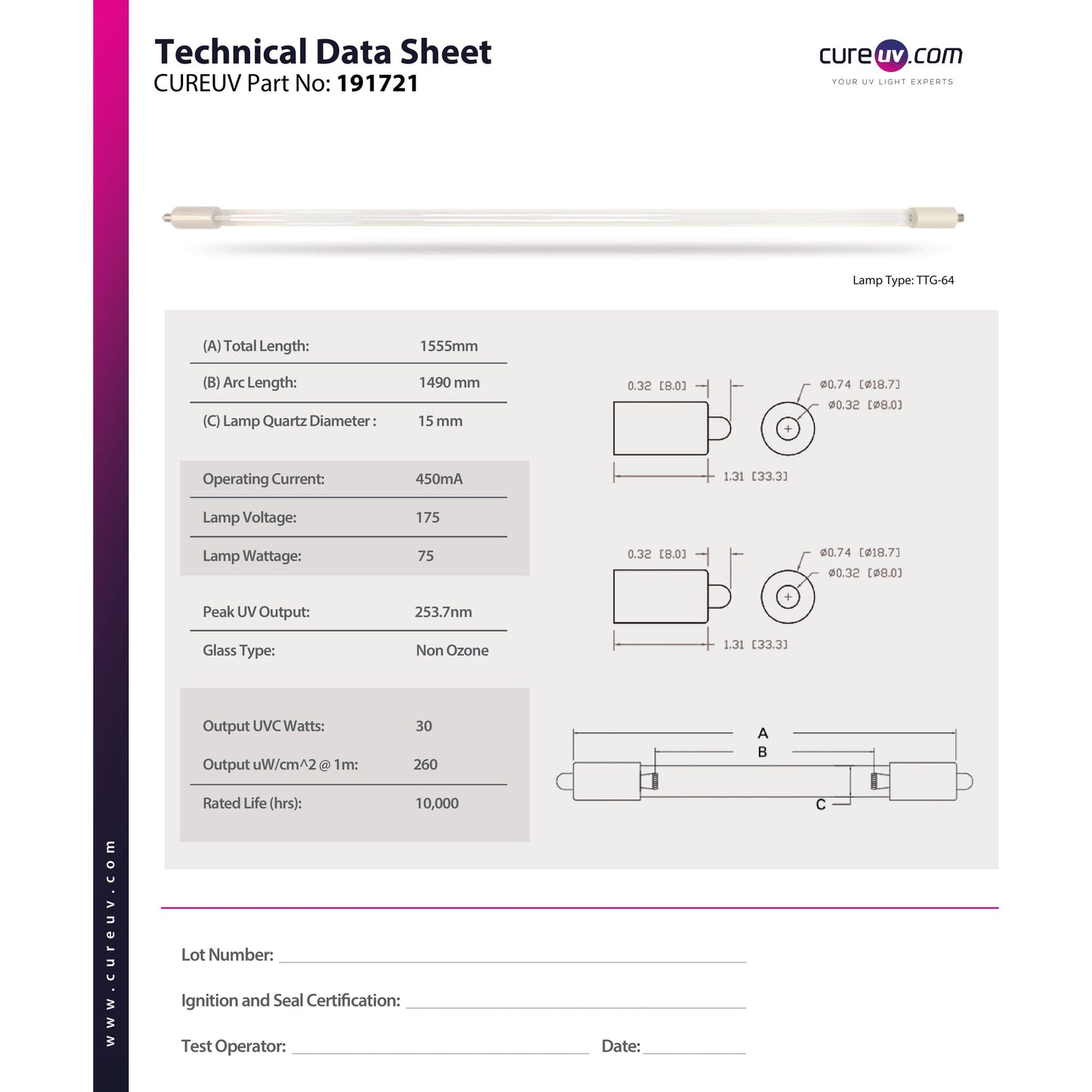

Drawing of American Ultraviolet GML015 UVC Bulb - item # 191721

 *All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell American Ultraviolet brand UVC bulbs. All American Ultraviolet brand names, trademarks, and logos are property of American Ultraviolet.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

American Ultraviolet Part Number:

  • GML015

American Ultraviolet System Model:

  • TTG-64

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
