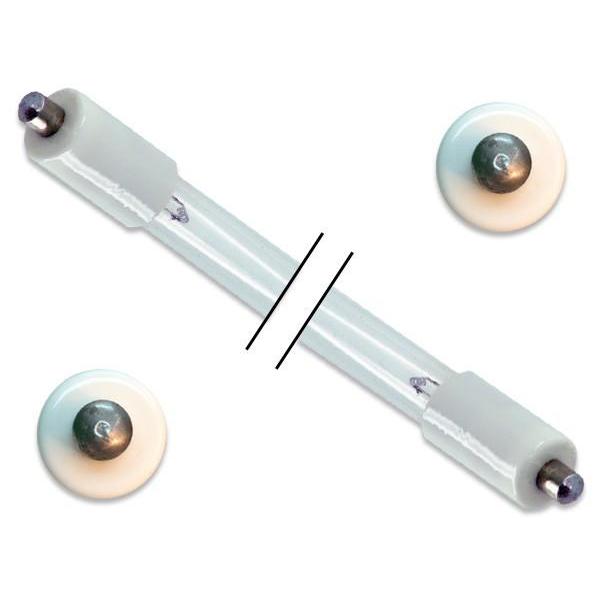

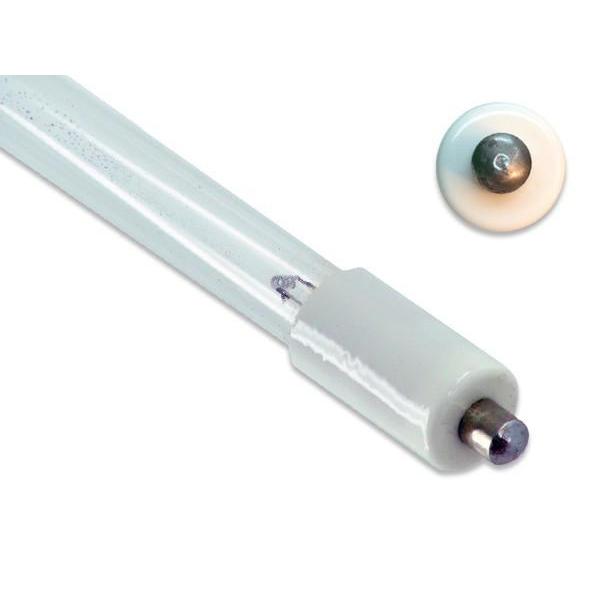

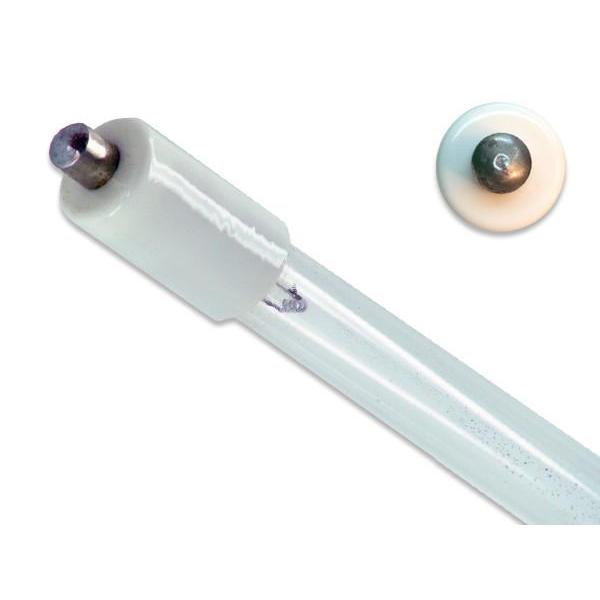

American Ultraviolet GML060 Replacement UVC Light Bulb
American Ultraviolet GML060 Replacement UVC Light Bulb American Ultraviolet GML060 Replacement UVC Light Bulb American Ultraviolet GML060 Replacement UVC Light Bulb American Ultraviolet GML060 Replacement UVC Light Bulb American Ultraviolet GML060 Replacement UVC Light Bulb

American Ultraviolet GML060 Replacement UVC Light Bulb
Free Gift

$33.50

Single Pin Double Ended - 16 Watt Germicidal Air, Surface & Water Treatment Bulb

CureUV.com’s American Ultraviolet GML060 Replacement UVC Light Bulb is a single pin, double ended, 16 Watt Germicidal surface, air and water treatment bulb. This bulb is a compatible replacement for the following germicidal UVC system models:

  • CE-10-SL
  • CE-10-2SL
  • CE-10-4SL
  • GR-10-SL
  • SM-10-SL
  • STG-10-SL
  • TB-12-W
  • UF-10-SL
  • UFA-10-SL

Ultraviolet light filters are advanced and a highly effective method of destroying pathogens such as protozoa, virus, bacteria, cysts and others. These specialized UV lamps and bulbs from CureUV produces high quantity of damaging ultraviolet light that destroys these organisms without altering the composition, pH or taste of water. Unlike chemical methods of purification, the UV light purification is proven safe for human consumption. Our lamps are tested and certified by our expert quality assurance teams that maintain your safety as their primary concern.

The 16 Watt germicidal light bulb features a wavelength with lethal effectiveness of up to 253.7nm. Researchers believe that this wavelength may help in disrupting the DNA of harmful microorganisms. Measuring at 14.06 inches in length, the UVC lamp has a long lasting life rate of 9,000 hours. We recommend replacing American Ultraviolet GML060 Replacement UVC Light Bulb annually to ensure best ultraviolet performance output of your UVC system.

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water.

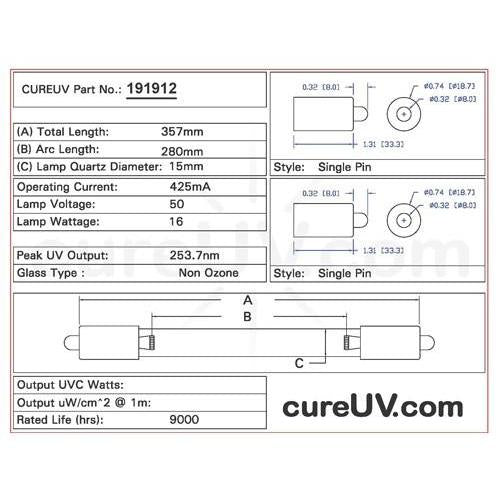

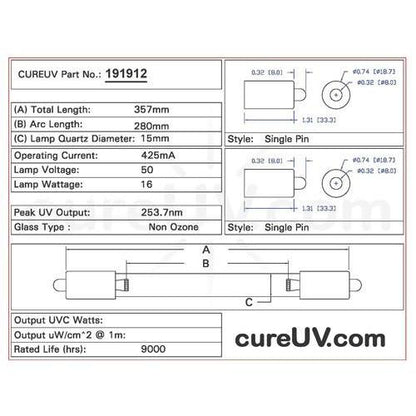

Drawing of Replacement UVC Bulb Item # 191912 (PDF)
Spectral Output of Germicidal UVC Light Bulbs (PDF)

Technical Specification

  • Total Length: 14.06 inches (357mm)
  • Arc Length: 11.02 inches (280mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Voltage: 50V
  • Lamp Wattage: 16 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: Single pin double ended
  • Base Material: Ceramic
  • Rated Life: Up to 9,000 hours

Common Locations for use

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships

                                   Spectral Output of Germicidal UVC Light Bulbs

This UVC bulb is a compatible replacement for use with germicidal UV-C system models:

CE-10-SL, CE-10-2SL, CE-10-4SL, GR-10-SL, SM-10-SL, STG-10-SL, TB-12-W, UF-10-SL, U              Drawing of American Ultraviolet GML060 UVC Bulb - item # 191912

UFA-10-SL

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

This product is a substitute item for old CureUV product item #: 191913, 191914, 191915, 191916, 191917, 194185, 194186, 194187

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell American Ultraviolet brand UVC bulbs. All American Ultraviolet brand names, trademarks, and logos are property of American Ultraviolet.

 Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

American Ultraviolet Part Number:

  • GML060

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
