American Ultraviolet GML100 Replacement UVC Light Bulb
American Ultraviolet GML100 Replacement UVC Light Bulb American Ultraviolet GML100 Replacement UVC Light Bulb American Ultraviolet GML100 Replacement UVC Light Bulb American Ultraviolet GML100 Replacement UVC Light Bulb American Ultraviolet GML100 Replacement UVC Light Bulb American Ultraviolet GML100 Replacement UVC Light Bulb

American Ultraviolet GML100 Replacement UVC Light Bulb
Free Gift

$61.99

4 Pin on a Single End - 40 Watt Germicidal Air, Surface & Water Treatment Bulb

Our American Ultraviolet GML100 Replacement UVC Light Bulb is a 40 Watt air, water and surface water treatment bulb that features 4 pin on a single end. The UVC light bulb is compatible with the following germicidal UV-C models:

  • MRS3684P
  • TTG-36-4P

The quality of the water we use immensely affects our health and wellbeing. This germicidal sterilizer is designed to destroy, bacteria, virus, protozoa, cyst and other microorganisms that may create havoc on our health. The light bulb emits short UV-C radiation that has a UV output peak of 253.7nm. This radiation is considered to be highly lethal for microorganisms and alters their genetic framework and prevents them from reproducing. With a total length of 33.19 inches, the CureUV.com’s UVC light bulb is an effective way to sanitize water without altering the water’s pH, taste or chemistry. This is because using UVC light to disinfect water is a purely physical process and is far better option to chemicals and their bi-products.

Drawing of Replacement UVC Bulb Item # 191859 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

This replacement germicidal bulb is used for ultraviolet air, surface, and water purification and is well-suited for the applications that require UV-C intensity.

Common Applications:
  • Air Conditioners
  • Air Purifiers
  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Heating & Cooling Filters
  • HVAC Systems
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Surface Disinfection
  • Well Water

Technical Specifications

  • Total Length: 33.19 inches (843mm)
  • Arc Length: 29.92 inches (760mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 420mA
  • Lamp Voltage: 120V
  • Lamp Wattage: 40 Watts
  • Output UVC Watts: 13.8 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

This product is a substitute item for old CureUV product item #: 191860, 194132

                                Spectral Output of Germicidal UVC Light Bulbs

This UVC bulb is a compatible replacement for use with germicidal UV-C system models:

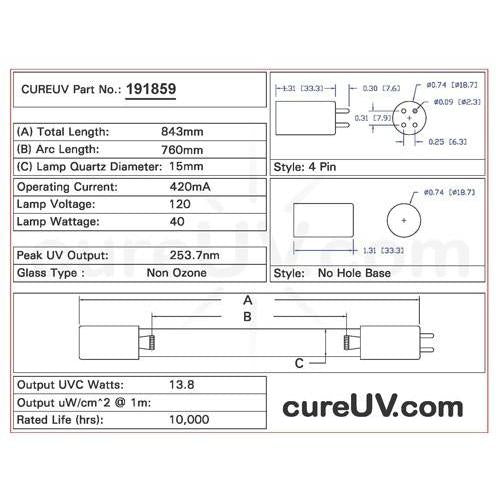

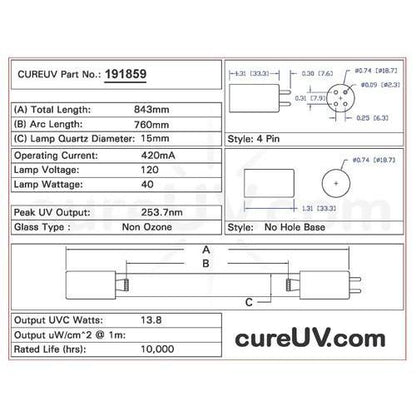

MRS3684P, TTG-36-4P Drawing of American Ultraviolet GML100 UVC Bulb - item # 191859

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell American Ultraviolet brand UVC bulbs. All American Ultraviolet brand names, trademarks, and logos are property of American Ultraviolet.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

American Ultraviolet Part Number:

  • GML100

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
