American Ultraviolet GML270 Replacement UVC Light Bulb
American Ultraviolet GML270 Replacement UVC Light Bulb American Ultraviolet GML270 Replacement UVC Light Bulb American Ultraviolet GML270 Replacement UVC Light Bulb American Ultraviolet GML270 Replacement UVC Light Bulb American Ultraviolet GML270 Replacement UVC Light Bulb American Ultraviolet GML270 Replacement UVC Light Bulb

American Ultraviolet GML270 Replacement UVC Light Bulb
Free Gift

$64.99

4 Pin on a Single End - 75 Watt Germicidal Air, Surface & Water Treatment Bulb

Our American Ultraviolet GML270 Replacement UVC Light Bulb is a 75 Watt germicidal air, surface and water treatment bulb that comes with four pins on a single end. The UVC bulb is compatible for use with the following UV-C system model:

  • TTG-64-4P

The light bulb is completely compatible with germicidal OEM water and air disinfection filters, ultraviolet purifiers and UV sterilizers. The UV lamp is thoroughly tested and has a life of up to 10,000 hours after which the germicidal UV output diminishes while the lamp may continue to emit light. The UV lamp has a total length of 61.8 inches and has a peak output of 253.7nm. This energy reacts photo-chemically with the genetics of the microorganisms and prevents them from reproducing. Studies show that UV water purification has the ability to destroy 99.9% of waterborne microorganisms.

This method of sterilizing water is a purely physical process and does not alter the pH, taste or chemistry of water and is a much better option than chemicals and their byproducts. This system provides protection against water contaminants such as yeast, cyst, bacteria, virus and protozoa. Give yourself some peace of mind with our American Ultraviolet GML270 Replacement UVC Light Bulb.

Common Applications:

  • Air Conditioners
  • Air Purifiers
  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Heating & Cooling Filters
  • HVAC Systems
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Surface Disinfection
  • Well Water

Technical Specification:

  • Total Length: 61.18 inches (1554mm)
  • Arc Length: 57.87 inches (1470mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 450mA
  • Lamp Voltage: 170V
  • Lamp Wattage: 75 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships

                                    Spectral Output of Germicidal UVC Light Bulbs

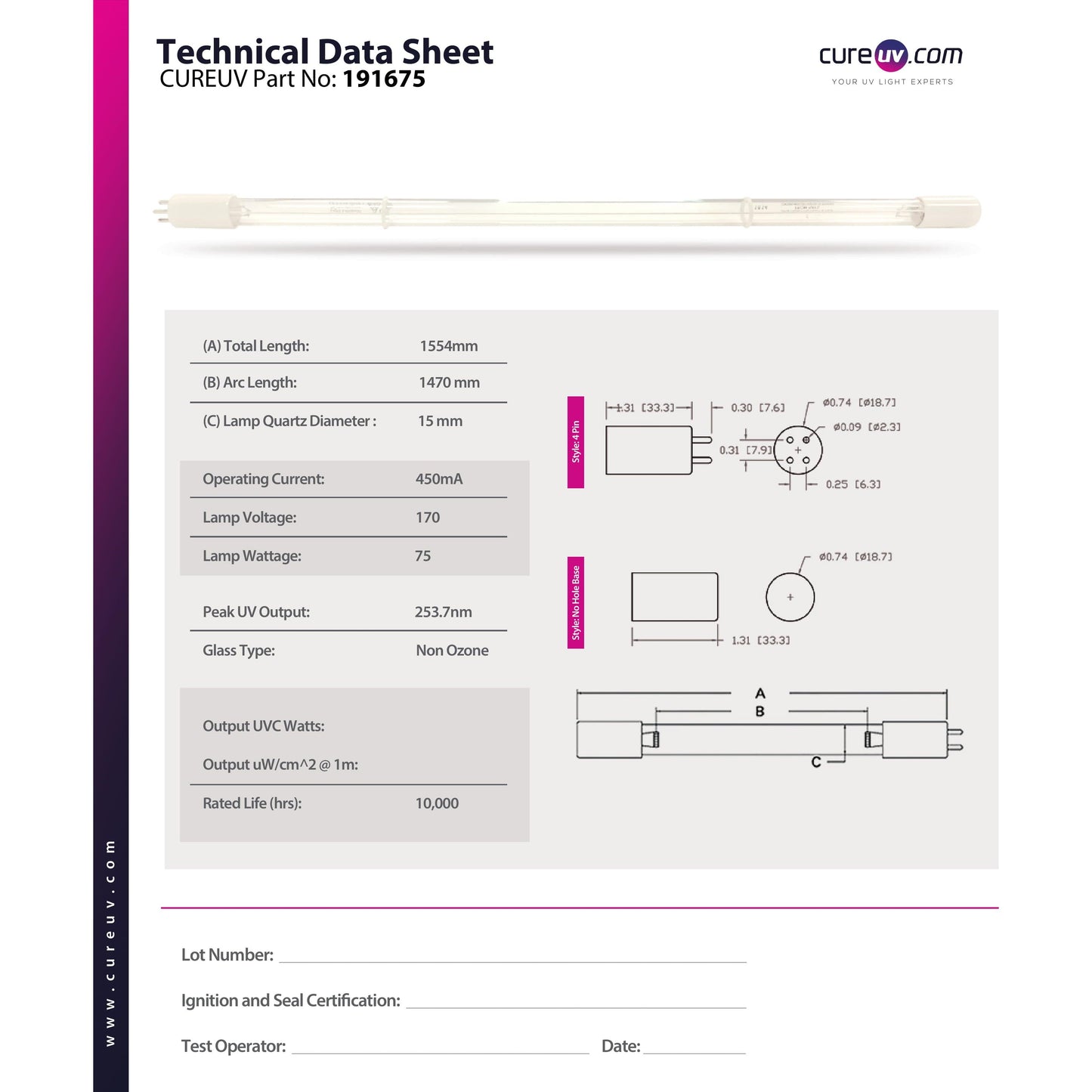

Drawing of Replacement UVC Bulb Item # 191675 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

This UVC bulb is a compatible replacement for use with germicidal UV-C system models:

TTG-64-4P Drawing of American Ultraviolet GML270 UVC Bulb - item # 191675

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

This product is a substitute item for old CureUV product item #: 194086

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell American Ultraviolet brand UVC bulbs. All American Ultraviolet brand names, trademarks, and logos are property of American Ultraviolet.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

American Ultraviolet Part Number:

  • GML270

American Ultraviolet System Model:

  • TTG-64-4P

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment
