American Ultraviolet GML335 Replacement UVC Light Bulb
American Ultraviolet GML335 Replacement UVC Light Bulb American Ultraviolet GML335 Replacement UVC Light Bulb American Ultraviolet GML335 Replacement UVC Light Bulb American Ultraviolet GML335 Replacement UVC Light Bulb American Ultraviolet GML335 Replacement UVC Light Bulb American Ultraviolet GML335 Replacement UVC Light Bulb

American Ultraviolet GML335 Replacement UVC Light Bulb
Free Gift

$39.99

Miniature 2 Pin Double Ended - 14 Watt Germicidal Air, Surface & Water Treatment Bulb

CureUV’s American Ultraviolet GML335 Replacement UVC Light Bulb is compatible with water disinfection filters, UV sterilizers, germicidal OEM air and water filters and UV purifiers. The UV method is a preferred water treatment by many as it employs UV light at a particular wavelength (253.7nm) and disrupts the DNA of microorganisms. The light bulb can work effectively for 10,000 hours.

When water passes through the UV water treatment system, the microorganisms present in water are exposed to the light and their genetics is disrupted, thus inhibiting their ability to reproduce. This method destroys 99.9% harmful organisms in the water and does not alter the pH, taste or chemistry of water in the process. This method is a better alternative to adding chemicals and their byproducts in water. This system provides protection against water contaminants such as yeast, cyst, bacteria, virus and protozoa.

This environmentally and user friendly method is an immediate treatment process. The light bulb from CureUV.com has a length of 11.3 inches can be commonly used in the following applications

  • Air Conditioners
  • Air Purifiers
  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Heating & Cooling Filters
  • HVAC Systems
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Surface Disinfection
  • Well Water

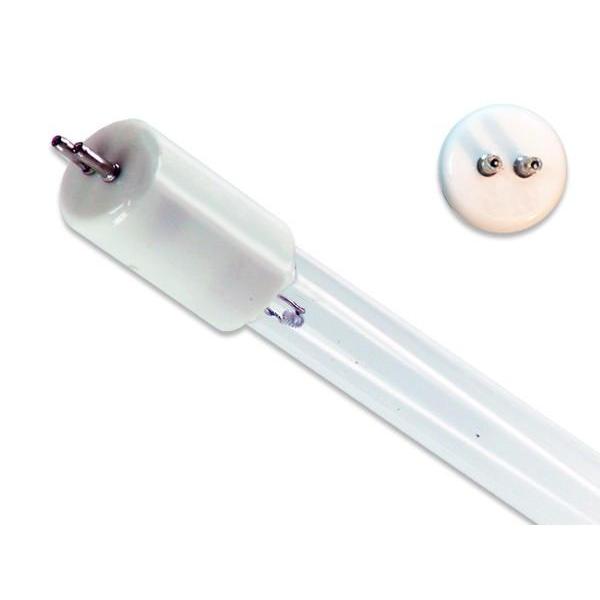

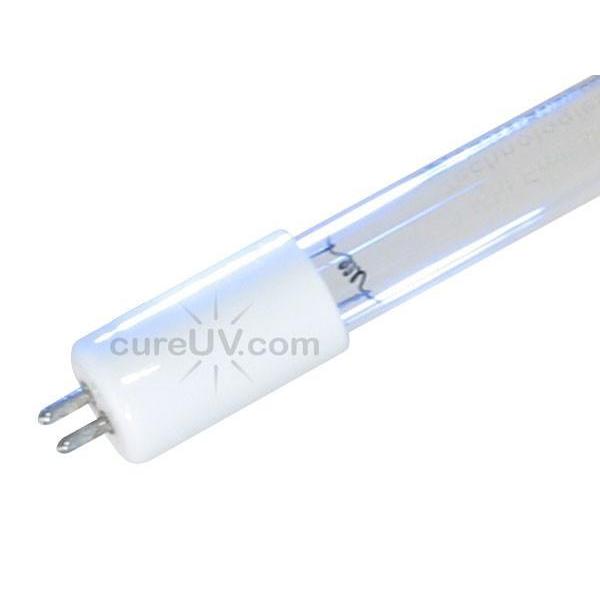

The American Ultraviolet GML335 Replacement UVC Light Bulb is a 14 Watt treatment bulb that features miniature, double ended two pin.

Technical Specifications

  • Total Length: 11.3 inches (287mm)
  • Arc Length: 7.87 inches (200mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Voltage: 40V
  • Lamp Wattage: 14 Watts
  • Output UVC Watts: 4 Watts
  • Output uW/cm^2 @ 1m: 40
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone

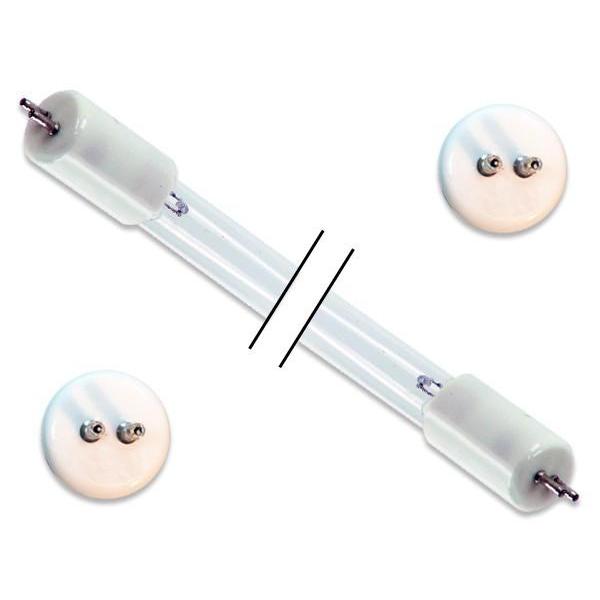

  • Base Style: Miniature Bi-Pin (2 pin) double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships

                                   Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 192421 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

This replacement germicidal bulb is used for ultraviolet air, surface, and water purification and is well-suited for the applications that require UV-C intensity.

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

American Ultraviolet GML335 Replacement UVC Light Bulb American Ultraviolet GML335 Replacement UVC Light Bulb American Ultraviolet GML335 Replacement UVC Light Bulb American Ultraviolet GML335 Replacement UVC Light Bulb

Drawing of American Ultraviolet GML335 UVC Bulb - item # 192421

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell American Ultraviolet brand UVC bulbs. All American Ultraviolet brand names, trademarks, and logos are property of American Ultraviolet.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
