American Ultraviolet Part # A9441MCB UV Curing Lamp Bulb
American Ultraviolet Part # A9441MCB UV Curing Lamp Bulb American Ultraviolet Part # A9441MCB UV Curing Lamp Bulb

American Ultraviolet Part # A9441MCB UV Curing Lamp Bulb
Free Gift

$199.99

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 4 Inch Arc Length - 8.82 Inch Total Length (end to end)

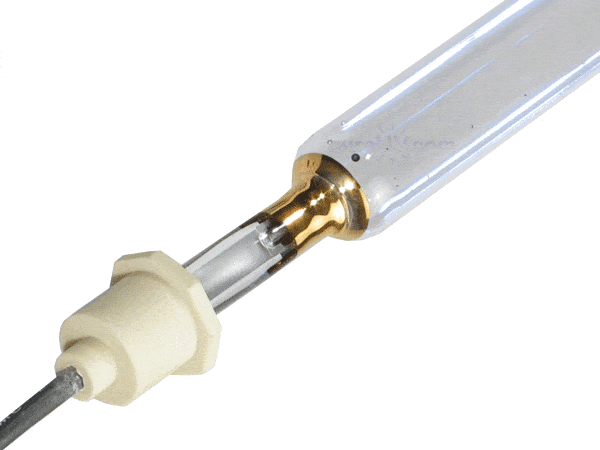

The American Ultraviolet Part # A9441MCB UV Curing Lamp Bulb is a completely compatible lamp bulb that exceeds OEM standards of UV bulb performance. The UV lamp has 400 WPI as output power and an arc length of 4 inches. The lamp has an overall length of 8.82 inches and is filled with mercury.

The UV lamp bulb is 100% compatible to the American Ultraviolet UV systems. The UV curing lamp bulb is compatible to the following part numbers:

  • A9441MCB
  • 6804A22C
  • H04D3F1

The CureUV’s replacement bulbs work to cure dry coatings in signs and graphics. Made in the USA, the UV printer bulb provides a predictable lifespan and works to dry coatings and inks. With CureUV, you can be assured of UV lamps for printers in different arc length and spectral fills. Unlike curing using heat, the curing UV bulbs do not release volatile organic compounds in air that makes them an extremely eco-friendly option. The quartz plate in the curing lamp keeps the lamp away from debris and works as a filter between the curing system and the lamp. The usage of light instead of heat enables the ink to harden and dry instantly.

Technical Specifications:

  • Output Power: 400 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 4 Inches
  • Overall Length: 8.82 Inches

UV Spectral Output of a Mercury Lamp

UV Spectral Output of a Mercury Lamp (PDF)

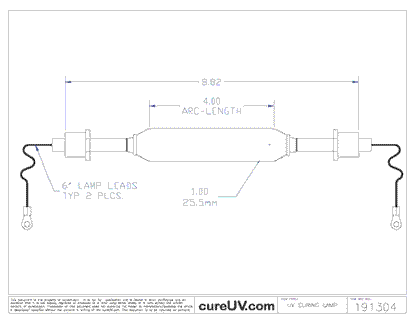

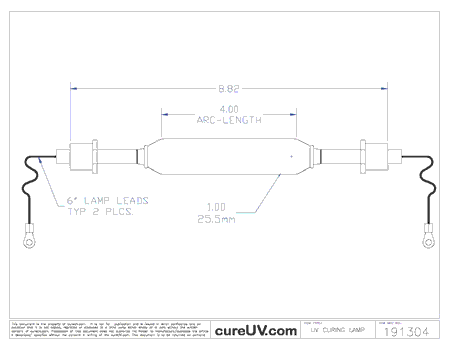

American Ultraviolet compatible UV lamp - OEM part number A9441MCB - Drawing (PDF)

American Ultraviolet Compatible UV Curing Lamp - OEM Part Number A9441MCB drawing

*All lamps listed are compatible brand UV products. We do not sell American Ultraviolet brand lamps. All American Ultraviolet brand names, trademarks and logos are property of American Ultraviolet.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
