American Ultraviolet Part # A94481MCB Compatible Generic UV Curing Lamp Bulb
American Ultraviolet Part # A94481MCB Compatible Generic UV Curing Lamp Bulb American Ultraviolet Part # A94481MCB UV Curing Lamp Bulb

American Ultraviolet Part # A94481MCB Compatible Generic UV Curing Lamp Bulb
Free Gift

$299.99

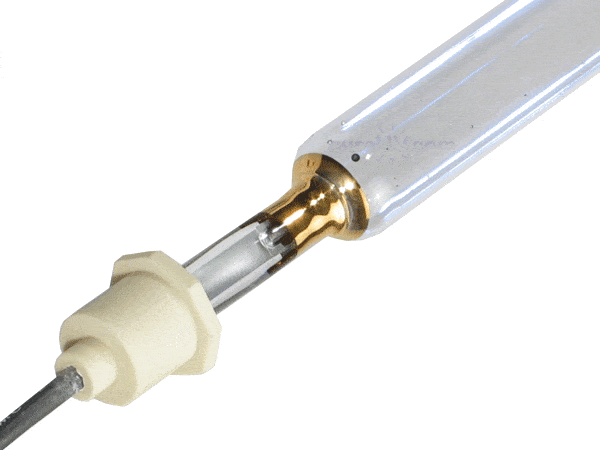

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 48 Inch Arc Length - 53.63 Inch Total Length (end to end)

Our generic version of the American Ultraviolet Part # A94481MCB UV Curing Lamp Bulb is a 48 inch lamp bulb that exceeds the OEM standards of UV curing bulb performance. The UV bulb is compatible to the American Ultraviolet UV Systems with the following part numbers:

  • A94481MCB
  • H48D3F1

The UV curing lamp bulbs are the components necessary in the drying system. It also does not release volatile organic compounds in the air. The light bulbs generate a specific wavelength that assists in curing coating and inks. The quartz plate in lamp works as a filler between lamp and the system. This plate prevents dirt, grit and contaminants from building up on the lamp.

CureUV is your one-stop-shop for your UV replacement lamps, quartz plate, dichroic reflectors, quartz hot mirrors and more that is necessary for your inkjet printers. These systems are important for the digital printing industry in areas such as graphics, signs and display graphics, apparel, textile, labeling, folding carton, screen printing and more.

Technical Specifications:

  • Output Power: 300 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 48 Inches
  • Overall Length: 53.63 Inches

UV Spectral Output of a Mercury Lamp

UV Spectral Output of a Mercury Lamp (PDF)

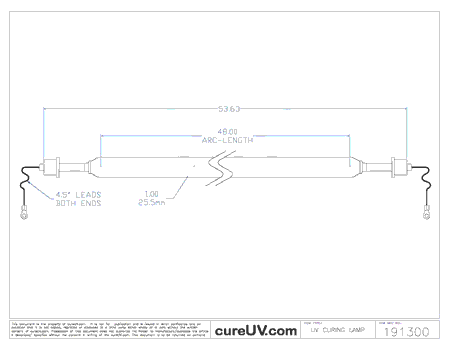

American Ultraviolet compatible UV lamp - OEM part number A94481MCB - Drawing (PDF)

American Ultraviolet Compatible UV Curing Lamp - OEM Part Number A94481MCB drawing

*All lamps listed are compatible brand UV products. We do not sell American Ultraviolet brand lamps. All American Ultraviolet brand names, trademarks and logos are property of American Ultraviolet.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
