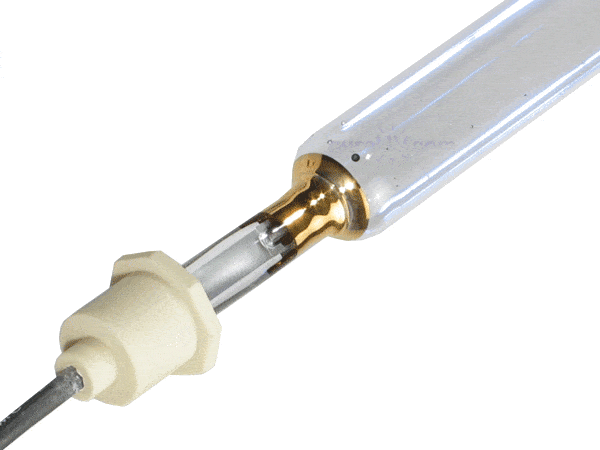

American Ultraviolet Part # A9481MCB UV Curing Lamp Bulb
American Ultraviolet Part # A9481MCB UV Curing Lamp Bulb American Ultraviolet Part # A9481MCB UV Curing Lamp Bulb

American Ultraviolet Part # A9481MCB UV Curing Lamp Bulb
Free Gift

$189.99

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 8 Inch Arc Length - 13 Inch Total Length (end to end)

The American Ultraviolet Part # A9481MCB UV Curing Lamp Bulb is a completely compatible replacement lamp that has an arc length of 8 inches and a total length of 13 inches. Filled with mercury the quartz lamp bulb has an output of 300 WPI. The lamp bulb is compatible to the following UV part numbers:

  • A9481MCB
  • 6808A22C
  • K265
  • UVC146
  • H08D3F1

The replacement lamp work to cure or dry coatings in graphics and signs. The quartz glass plate on the curing lamp protects the lamp from debris and works as a filter between the curing system and the lamp. The plate also prevents dirt, grit and contaminants from building up on the lamp.

Made in the USA, the UV printer lamp bulb provides a predictable lifespan and helps in drying coatings of inks in signs and graphics. CureUV provides UV lamp for printers in different arc length and spectral fills. Curing bulbs do not release volatile organic compounds in air which makes them an extremely eco-friendly alternative than curing with the help of heat. The usage of light instead of heat enables the ink to harden and dry instantly.

Technical Specifications:

  • Output Power: 300 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 8 Inches
  • Overall Length: 13.00 Inches

UV Spectral Output of a Mercury Lamp

Spectral Output of a Mercury UV Lamp (PDF)

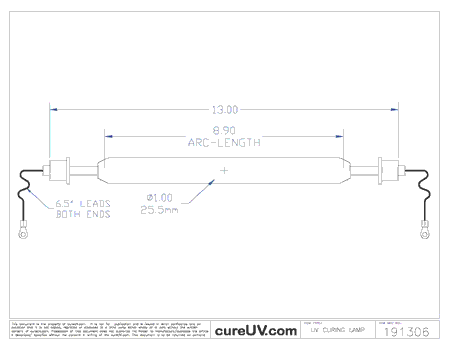

American Ultraviolet compatible UV lamp - OEM part number A9481MCB - Drawing (PDF)

American Ultraviolet Compatible UV Curing Lamp - OEM Part Number A9481MCB drawing

*All lamps listed are compatible brand UV products. We do not sell American Ultraviolet brand lamps. All American Ultraviolet brand names, trademarks and logos are property of American Ultraviolet.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
