American Ultraviolet Part # A961702 Compatible Generic UV Curing Lamp Bulb
American Ultraviolet Part # A961702 Compatible Generic UV Curing Lamp Bulb American Ultraviolet Part # A961702 UV Curing Lamp Bulb

American Ultraviolet Part # A961702 Compatible Generic UV Curing Lamp Bulb
Free Gift

$224.99

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 25 Inch Arc Length

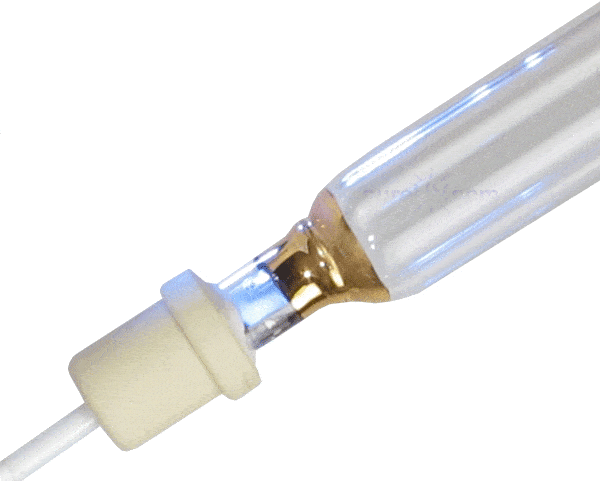

The generic replacement for the American Ultraviolet Part # A961702 UV Curing Lamp Bulb is a 100% guaranteed UV curing lamp bulb that has an arc length of 25.50 inches and an overall length of 30.88 inches. The lamp bulb comes with an output power of 300 WPI and is compatible to the American Ultraviolet UV Systems with the following part numbers:

  • A961702
  • H25A3F2

The UV curing lamp bulbs are the components necessary in the drying system. It also does not release volatile organic compounds in the air. The light bulbs generate a specific wavelength that assists in curing coating and inks. The quartz plate in lamp works as a filler between lamp and the system. This plate prevents dirt, grit and contaminants from building up on the lamp.

CureUV is your one-stop-shop for your UV replacement lamps, quartz plate, dichroic reflectors, quartz hot mirrors and more that is necessary for your inkjet printers. These systems are important for the digital printing industry in areas such as graphics, signs and display graphics, apparel, textile, labeling, folding carton, screen printing and more.

Technical Specifications:

  • Quartz: Standard
  • Arc Length: 25.50 Inches
  • Overall Length: 30.88 Inches
  • Tube Diameter: 22.5mm

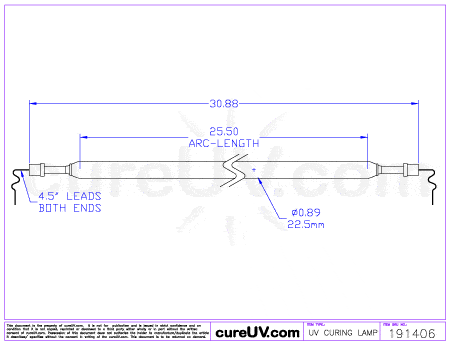

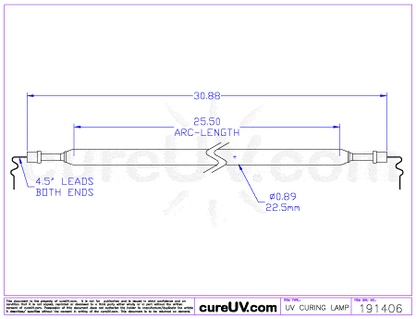

American Ultraviolet compatible UV lamp - OEM part number A961702 - Drawing (PDF)

*All lamps listed are compatible brand UV products. We do not sell American Ultraviolet brand lamps. All American Ultraviolet brand names, trademarks and logos are property of American Ultraviolet.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
