4 Pin on a Single End - 33 Watt Germicidal Water Treatment Bulb
CureUV.com is your one-stop-shop for high quality UV-C replacement lamps and other related products. The American Water Service PT-12 Replacement UVC Light Bulb is 100% compatible for use with the following germicidal UV-C system model:

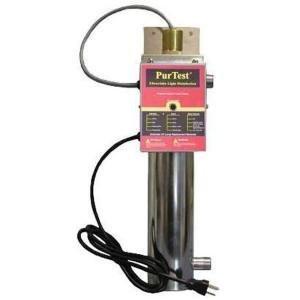

- PurTest PT-12
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
CureUV's ultraviolet lamps are manufactured using the highest industry standards and meets or exceeds the OEM specifications. We ensure that each lamp from CureUV undergoes 100% quality control inspection to provide you the utmost safety with water. This UVC bulb comes with a four pin, single end configuration.
The 33 watt UVC bulb features a wavelength with lethal effectiveness of up to 253.7nm. This causes a disruption of the microorganism DNA and renders them harmless. Measuring at 29.09 inches in length, this UVC lamp has a life of up to 10,000 hours. With CureUV's UV lamp, you get 12 month worry-free operation after which we recommend that you replace the light bulb. At this point, the American Water Service PT-12 Replacement UVC Light Bulb may continue to emit light but its germ destroying ability may have been drastically reduced.Common Applications:
- Beverage Services and Processing
- Drinking Water
- Food Services and Processing
- Municipal Wastewater
- Pools, Spas, and Water Features
- Well Water
- Total Length: 29.09 inches (739mm)
- Arc Length: 25.79 inches (655mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 420mA
- Lamp Voltage: 92V
- Lamp Wattage: 33 Watts
- Peak UV Output: 253.7nm
- Glass Type: Non Ozone
- Base Style: 4 pin on a single end
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours

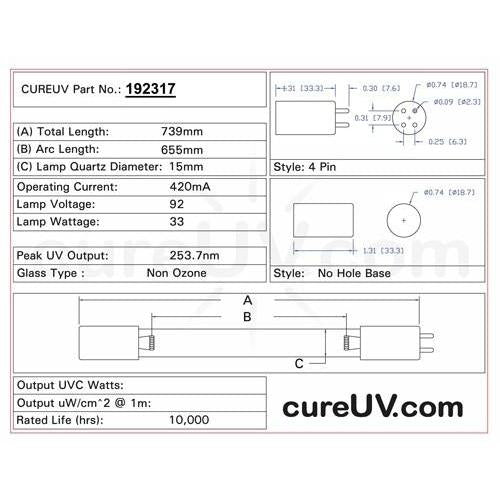

Drawing of Replacement UVC Bulb Item # 192317 (PDF)
Spectral Output of Germicidal UVC Light Bulbs (PDF)
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell American Water Service brand UVC bulbs. All American Water Service brand names, trademarks, and logos are property of American Water Service.
*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
