Aqua Azul L-1-806 Replacement UVC Light Bulb
Aqua Azul L-1-806 Replacement UVC Light Bulb Aqua Azul L-1-806 Replacement UVC Light Bulb Aqua Azul L-1-806 Replacement UVC Light Bulb Aqua Azul L-1-806 Replacement UVC Light Bulb Aqua Azul L-1-806 Replacement UVC Light Bulb

Aqua Azul L-1-806 Replacement UVC Light Bulb
Free Gift

Brand: Aqua Azul

SKU: 194150

UV Bulb Price Match Guarantee
$39.50

4 Pin on a Single End - 16 Watt Germicidal Water Treatment Bulb

Bring in the Aqua Azul L-1-806 Replacement UVC Light Bulb and experience peace of mind. Designed to kill microorganisms by altering their DNA structure, UV-C water treatment is gaining popularity over other methods of water treatments. Since this is a pure physical process and does not alter the chemistry, pH or taste of water, the UV-C method of water treatment is the considered the safest, cheapest and the most effective methods.

This light bulb from CureUV.com is a 16 Watt water treatment bulb that comes with 4 pin on a single end. This UVC bulb is compatible with the following germicidal UV-C system model:

  • I-25

This replacement light bulb works well in germicidal OEM water disinfection filters, UV water purifiers and UV sterilizers. It is proven to be effective against bacteria, molds, protozoa and viruses. It has a germ sterilizing power of 10,000 hours that can last for a year after which we recommend that you change the light bulb though it may continue to emit light. It features a peak UV output of 253.7nm, a wavelength that is highly fatal to microorganisms. Ensure clean safe water at all times with Aqua Azul L-1-806 Replacement UVC Light Bulb.

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Technical Specifications:

  • Total Length: 14.06 inches (357mm)
  • Arc Length: 10.83 inches (275mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 320mA
  • Lamp Voltage: 56V
  • Lamp Wattage: 16 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships
    •

                                      Spectral Output of Germicidal UVC Light Bulbs

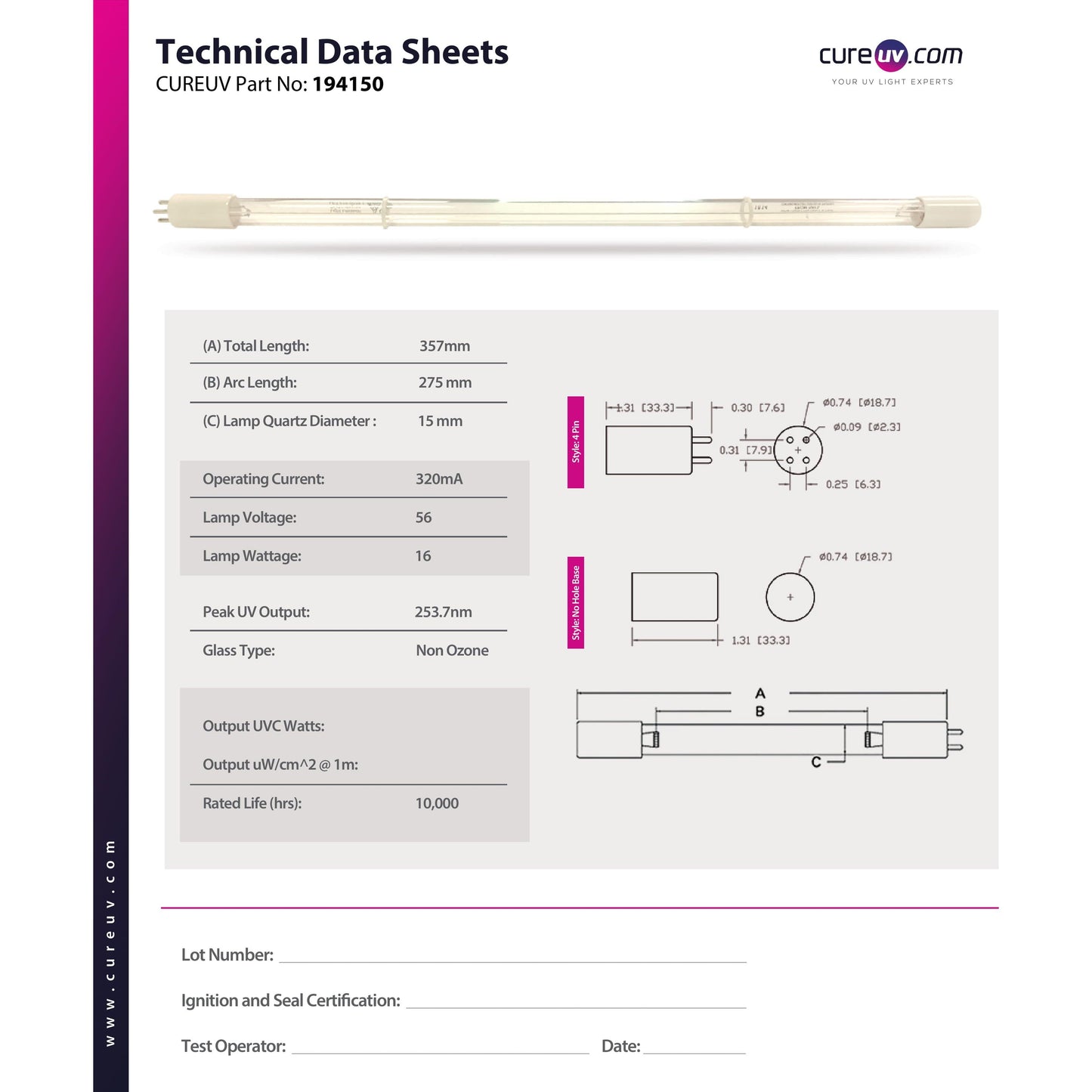

Drawing of Replacement UVC Bulb Item # 194150 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

                Drawing of Aqua Azul L-1-806 UVC Bulb - item # 194150

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

This product is a substitute item for old CureUV product item #: 194213

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
