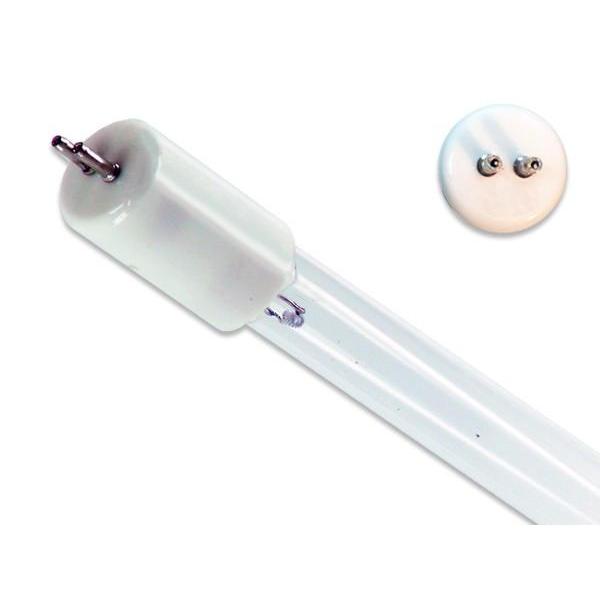

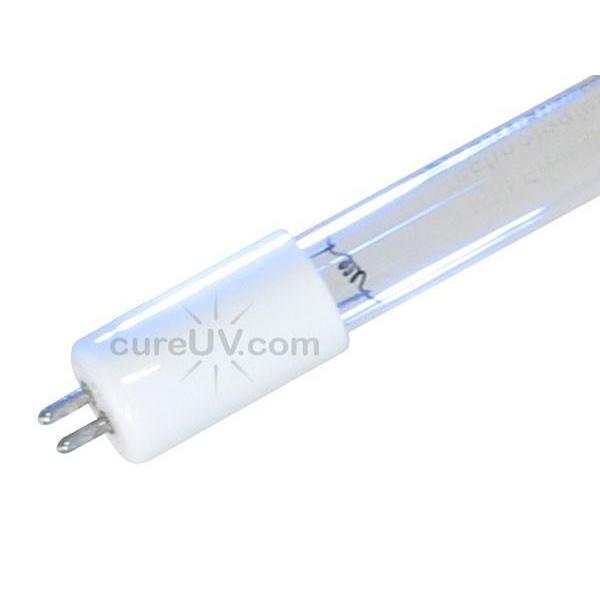

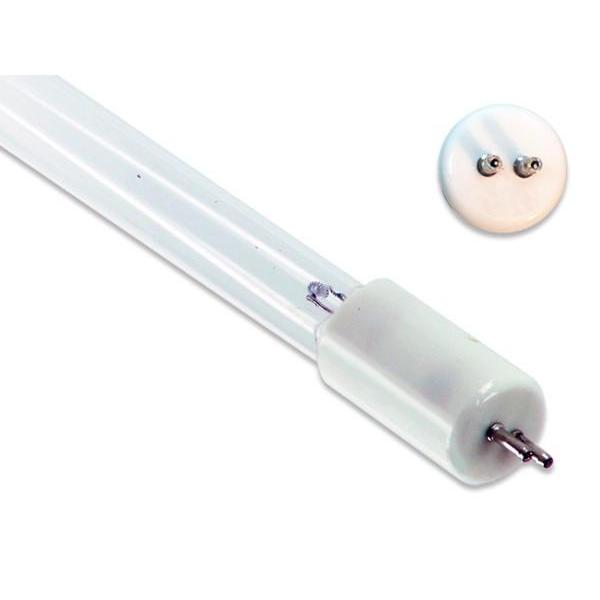

Aqua Treatment Service ATS2-457 Replacement UVC Light Bulb
Aqua Treatment Service ATS2-457 Replacement UVC Light Bulb Aqua Treatment Service ATS2-457 Replacement UVC Light Bulb Aqua Treatment Service ATS2-457 Replacement UVC Light Bulb Aqua Treatment Service ATS2-457 Replacement UVC Light Bulb Aqua Treatment Service ATS2-457 Replacement UVC Light Bulb Aqua Treatment Service ATS2-457 Replacement UVC Light Bulb

Aqua Treatment Service ATS2-457 Replacement UVC Light Bulb
Free Gift

$39.99

Miniature 2 Pin Double Ended - 22 Watt Germicidal Water Treatment Bulb

Our Aqua Treatment Service ATS2-457 Replacement UVC Light Bulb is a 22 Watt germicidal water treatment bulb that has a base style of miniature two pin double ended. The UVC light bulb has a peak UV output of 253.7 nm and the bulb is set in a non-ozone glass. The short wavelength emitted by the light bulb manages to alter the genetic structure of the microorganisms and renders them harmless. The UV light bulb can run for 10,000 hours. It requires an annual replacement to maintain its efficiency though it may continue to emit light. It is a compatible replacement for use with germicidal UV-C system models:

  • DWSW-8
  • FTUV8
  • FTUV9

The UVC light bulb measures 17.95 inches in length and has a life span of 10,000 hours. Get a 12 month worry free operation after which we recommend that you replace the light bulb for better efficiency. UV radiations work well on microorganisms such as bacteria, virus, yeast and protozoa.

Technical Specifications:

  • Total Length: 17.95 inches (456mm)
  • Arc Length: 14.37 inches (365mm)
  • Lamp Quartz Diameter: 15mm
  • Lamp Wattage: 22 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone

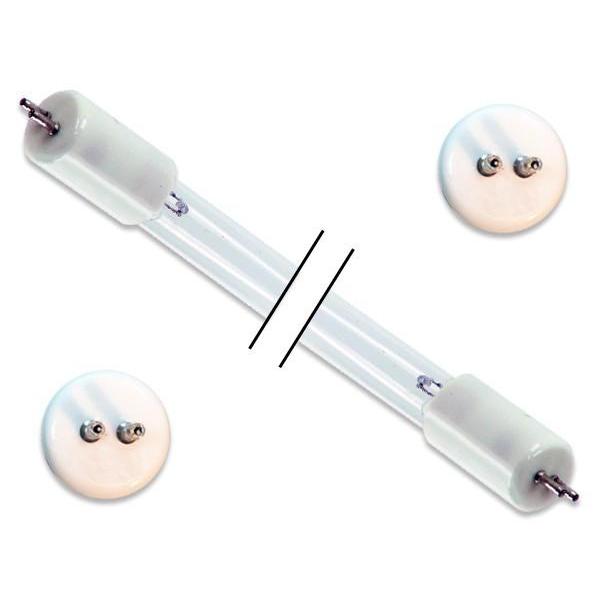

  • Base Style: Miniature Bi-Pin (2 pin) double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

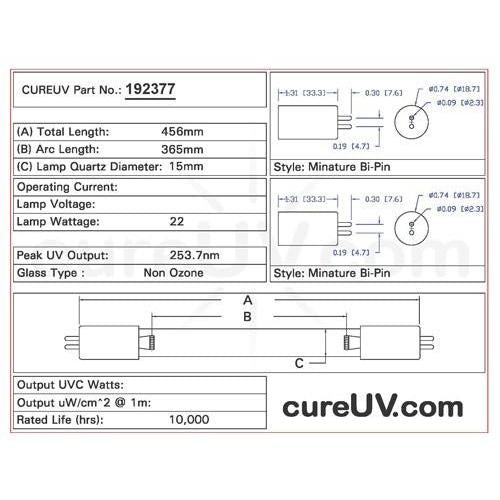

Drawing of Replacement UVC Bulb Item # 192377 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

This product is a substitute item for old CureUV product item #: 192376, 192378, 192379

This UVC bulb is a compatible replacement for use with germicidal UV-C system models:

DWSW-8, FTUV8, FTUV9 Drawing of Aqua Treatment Service ATS2-457 UVC Bulb - item # 192377

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aqua Treatment Service brand UVC bulbs. All Aqua Treatment Service brand names, trademarks, and logos are property of Aqua Treatment Service.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
