Aqua Treatment Service ATS4-357 Replacement UVC Light Bulb
Aqua Treatment Service ATS4-357 Replacement UVC Light Bulb Aqua Treatment Service ATS4-357 Replacement UVC Light Bulb Aqua Treatment Service ATS4-357 Replacement UVC Light Bulb Aqua Treatment Service ATS4-357 Replacement UVC Light Bulb Aqua Treatment Service ATS4-357 Replacement UVC Light Bulb

Aqua Treatment Service ATS4-357 Replacement UVC Light Bulb
Free Gift

$39.99

4 Pin on a Single End - 16 Watt Germicidal Water Treatment Bulb

The Aqua Treatment Service ATS4-357 Replacement UVC Light Bulb has a total length of 14.06 inches and can last for up to 10,000 hours. The replacement UVC light bulb comes with four pins on a single end and is compatible for use with the following UV-C system model:

  • ATS4-357

The light bulb is compatible with germicidal OEM water disinfection filters, UV water purifiers and sterilizers. The lamp is thoroughly tested and must be replaced annually for better efficiency. The UV lamp has a length of 14.06 inches and has a peak output of 253.7 nm. The energy reacts photo-chemically with the genetics of the microorganism and prevents them from reproducing. Studies are of the opinion that the UV water purification has the ability to destroy 99.9% waterborne microorganisms. This process of sterilizing water is a purely a physical process and does not alter the pH, taste or chemistry of water. This system protects you from containments such as yeast, cyst, virus, bacteria and protozoa. Clean water always yours with Aqua Treatment Service ATS4-357 Replacement UVC Light Bulb.

Technical Specifications:

  • Total Length: 14.06 inches (357mm)
  • Arc Length: 10.83 inches (275mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 320mA
  • Lamp Voltage: 56V
  • Lamp Wattage: 16 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194151 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

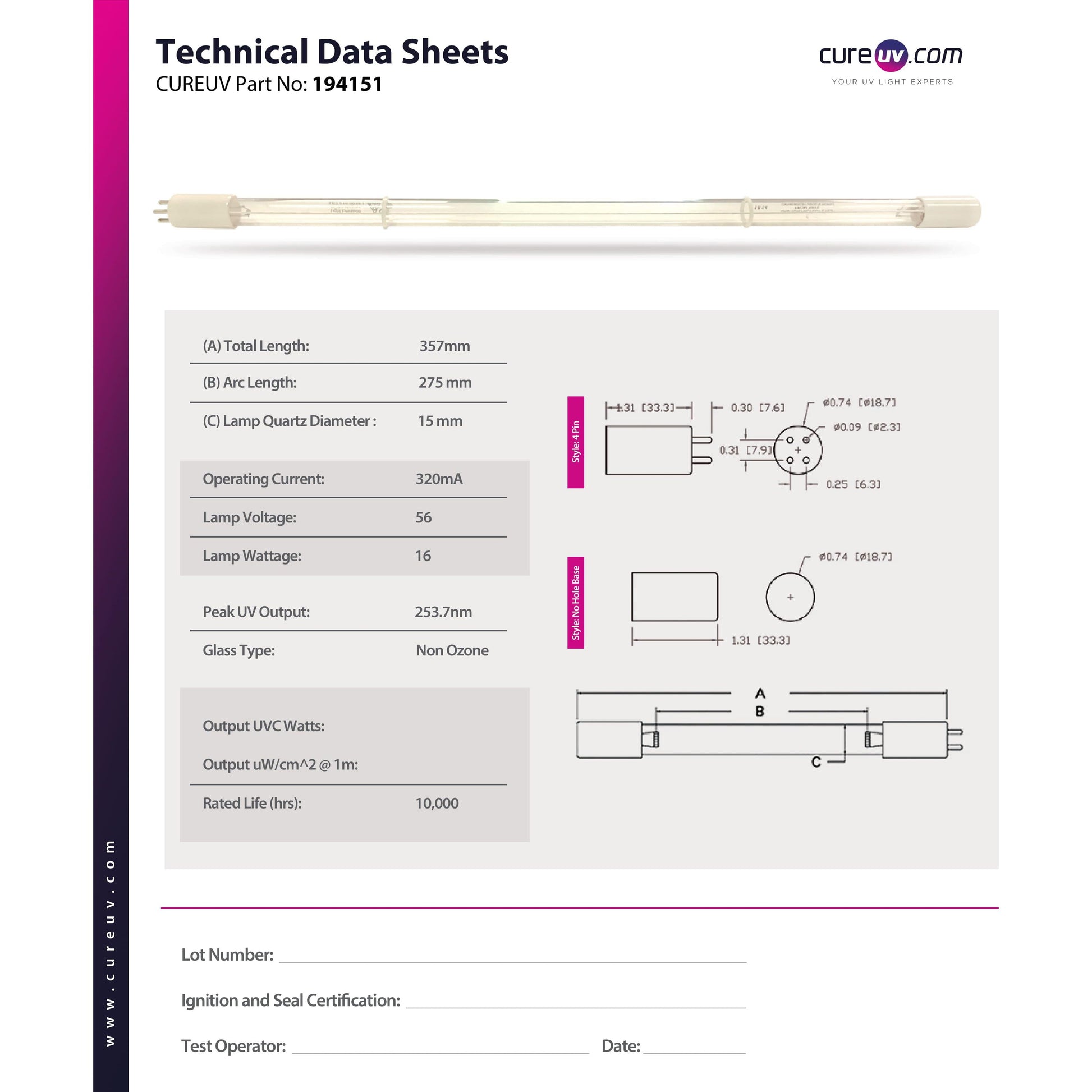

Drawing of Aqua Treatment Service ATS4-357 UVC Bulb - item # 194151

 *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
