Aqua Treatment Service ATS4-436 Replacement UVC Light Bulb
Aqua Treatment Service ATS4-436 Replacement UVC Light Bulb Aqua Treatment Service ATS4-436 Replacement UVC Light Bulb Aqua Treatment Service ATS4-436 Replacement UVC Light Bulb Aqua Treatment Service ATS4-436 Replacement UVC Light Bulb Aqua Treatment Service ATS4-436 Replacement UVC Light Bulb

Aqua Treatment Service ATS4-436 Replacement UVC Light Bulb
Free Gift

$44.99

4 Pin on a Single End - 25 Watt Germicidal Water Treatment Bulb

The Aqua Treatment Service ATS4-436 Replacement UVC Light Bulb is compatible with germicidal UVC lamp part

  • ATS4-436

With a total length of 17.17 inches the replacement light bulb has a life of 10,000 hours. Studies show that UV water purification can destroy 99.9% waterborne microorganisms and is a safe solution of sterilizing water. This process of purification is a purely physical process and does not alter the chemistry, pH or taste of water. This method of water treatment is environment-friendly and is a better option than chemicals and their by-products.

People are of the opinion that this system provides a safe solution against microorganisms such as giardia and cryptosporidium that are considered to be chlorine resistant. UV light bulb such as this one emits energy at 253.7 nm wavelength and this energy reacts photo-chemically with the genetics of the microorganisms. This replacement bulb is compatible with Germicidal OEM water disinfection filters, UV sterilizers and Ultraviolet water purifiers.

Technical Specifications:

  • Total Length: 17.17 inches (436mm)
  • Arc Length: 13.78 inches (350mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 370mA
  • Lamp Voltage: 67V
  • Lamp Wattage: 25 Watts
  • Output UVC Watts: 7.3 Watts
  • Output uW/cm^2 @ 1m: 72
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194533 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

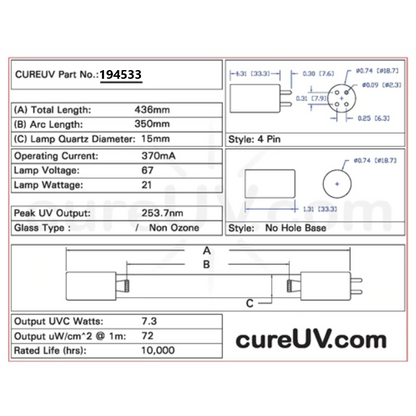

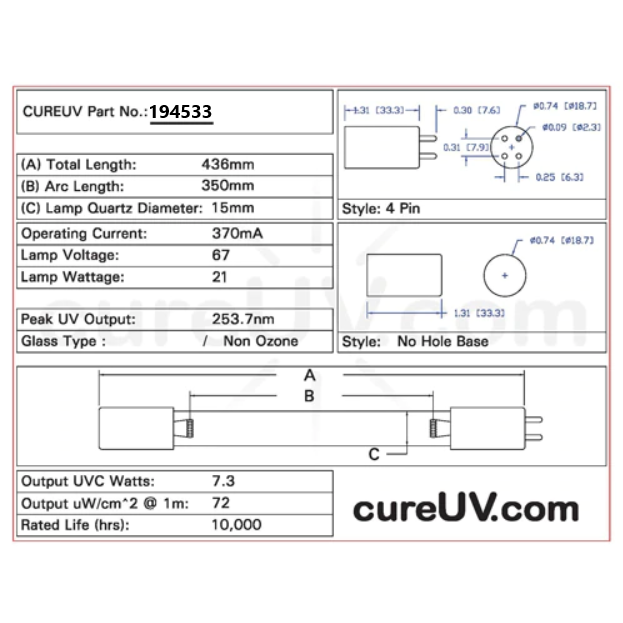

Drawing of Aqua Treatment Service ATS4-436 UVC Bulb - item # 194533

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aqua Treatment Service brand UVC bulbs. All Aqua Treatment Service brand names, trademarks, and logos are property of Aqua Treatment Service.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Aqua Treatment Service Part Number:

  • ATS4-436

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
